Hoyles Door Status Indicator & Sounder 12V with Red/Green Jumbo LEDs

Write a review
116.85
BON Enterprises
28 days
S1717SJM
IN STOCK
+

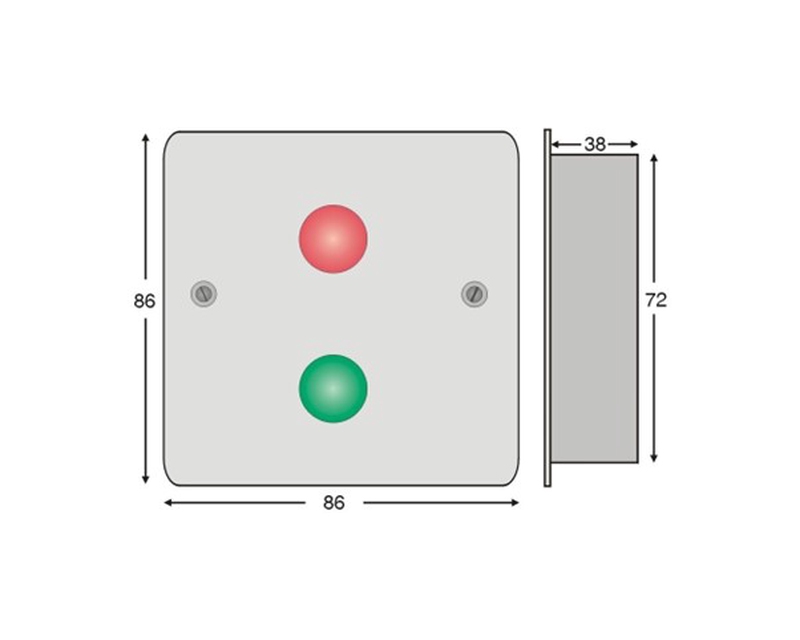

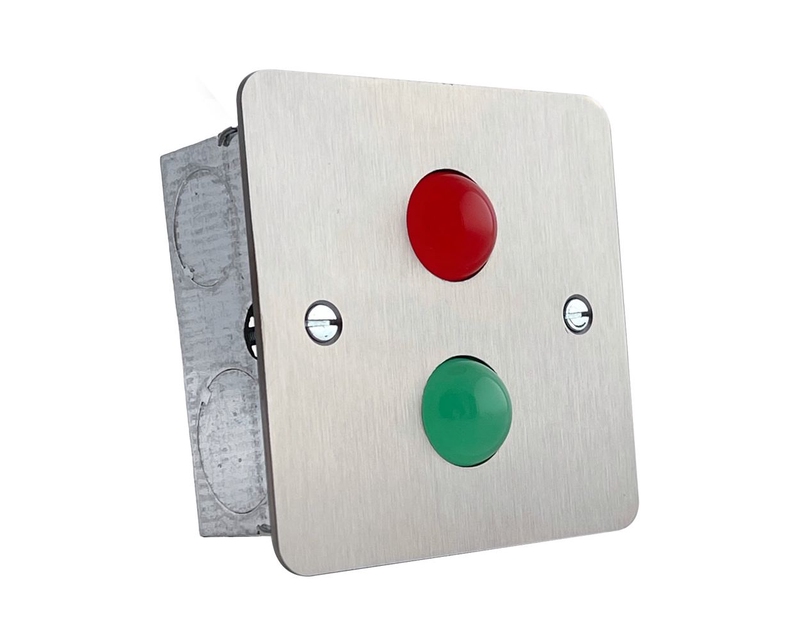

Stainless Steel door status indicator and sounder with red and green 20mm jumbo LED’s. The LED’s and sounder are configured for operation at 12vdc. Can be used with the Interguard range of door interlock controllers as well as any other general application. When used with an Interguard, the LEDs indicate the status of the relevant door. Useful as traffic light indications for doors etc. The connections for the LED’s and sounder are configured with a common positive and individual switched negatives, see installation instructions for further details. We can manufacture this item with common negative on request.SpecificationLed Current - 50mA per LED @12vdcSwitch Contacts - N/ASounder Current - 40mA @ 12vdcVisual Indication - 1 x red jumbo LED 1 x green jumbo LED (20mm)Integral Sounder Level - 90dB@10cmTamper - N/AMaterial - 316 Grade Stainless SteelDimensions - 86 x 86 x 2mm - Facia38mm galvanised back box suppliedWeight - 0.29kgIP Rating - IP65 front side contact areaApprovals - UKCA and CE marked, ROHS compliant
