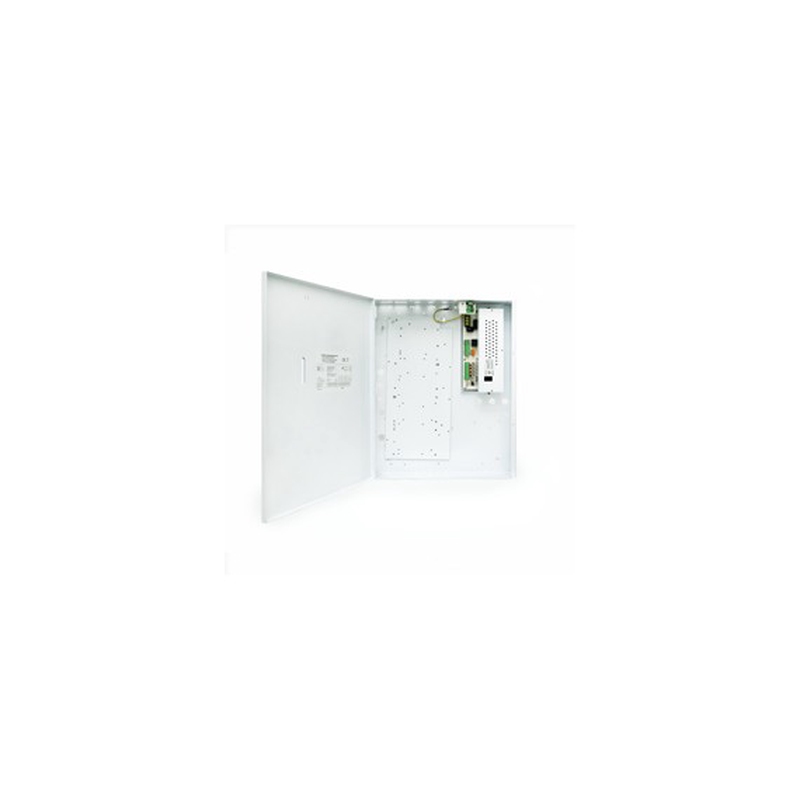

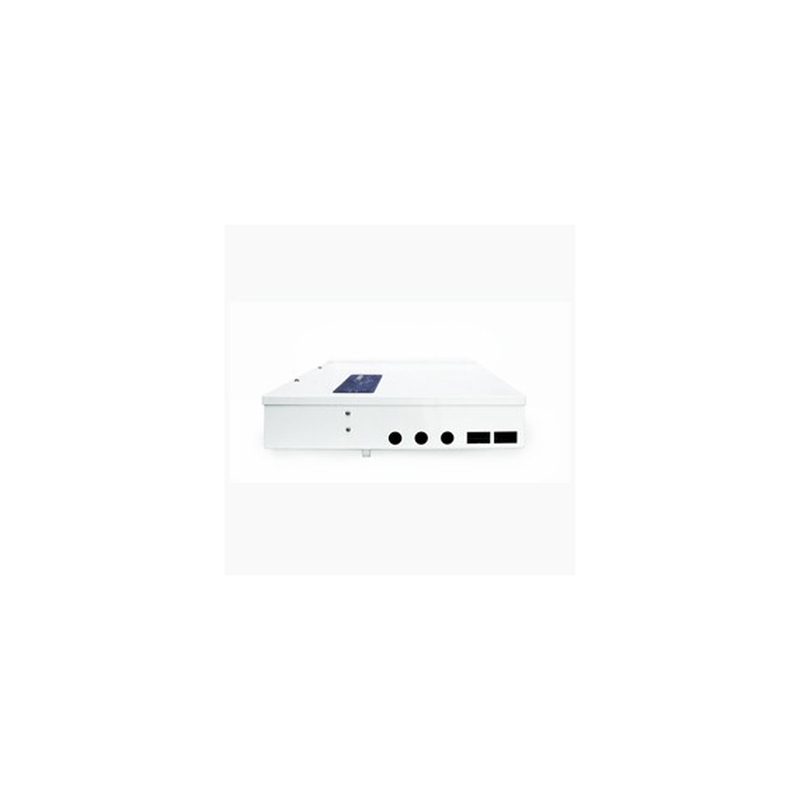

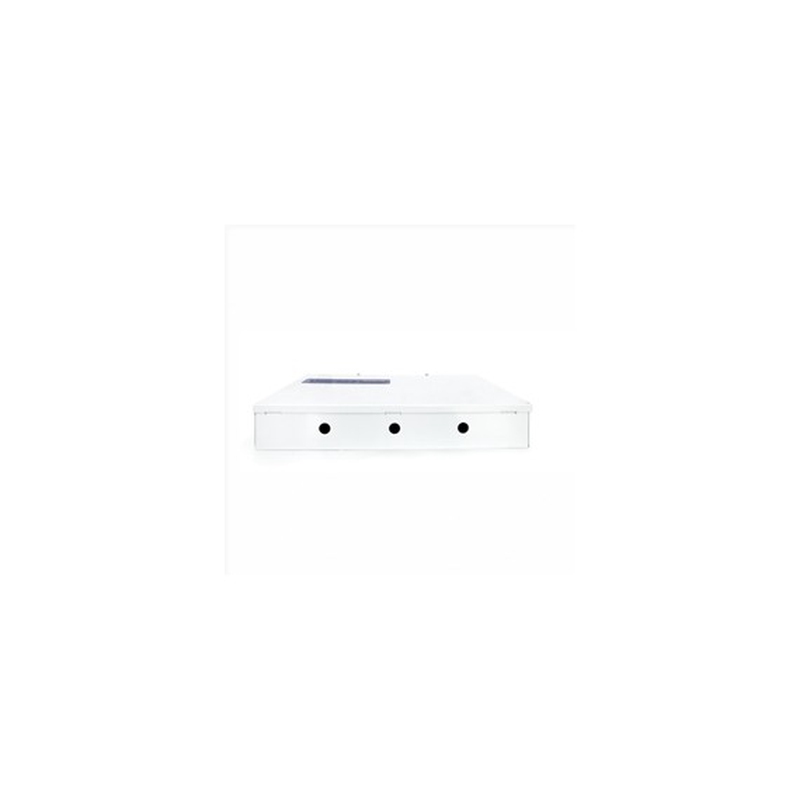

Haydon 12V/24V 8A Selectable Switch Mode PSU

Write a review
383.30
BON Enterprises
28 days
HAY-ACCESS12/24V-8A
IN STOCK
+
Supplies a continuous full rated current to load plus an additional 0.5A for charging one or two 12V standby batteries.Description1. Selectable 12VDC or 24VDC 4 way output2. Universal 100V-264V mains input3. Full rated 12VDC/8A or 24VDC/4A to load4. Max 0.7A to charge one or two 12V standby batteries5. Free voltage mains fail output and independent ancillary relay6. Reverse battery connection protection7. Green mains present LED and output fault yellow LED8. Short circuit and overload9. Complete with Mounting posts and sticky feet mounts.

Haydon HAY-ACCESS12_24V-8A_Access Control PSU V2-1 RDPDF.pdf (Haydon_HAY-ACCESS12_24V-8A_Access_Control_PSU_V2-1_RDPDF.pdf, 631 Kb) [Download]
