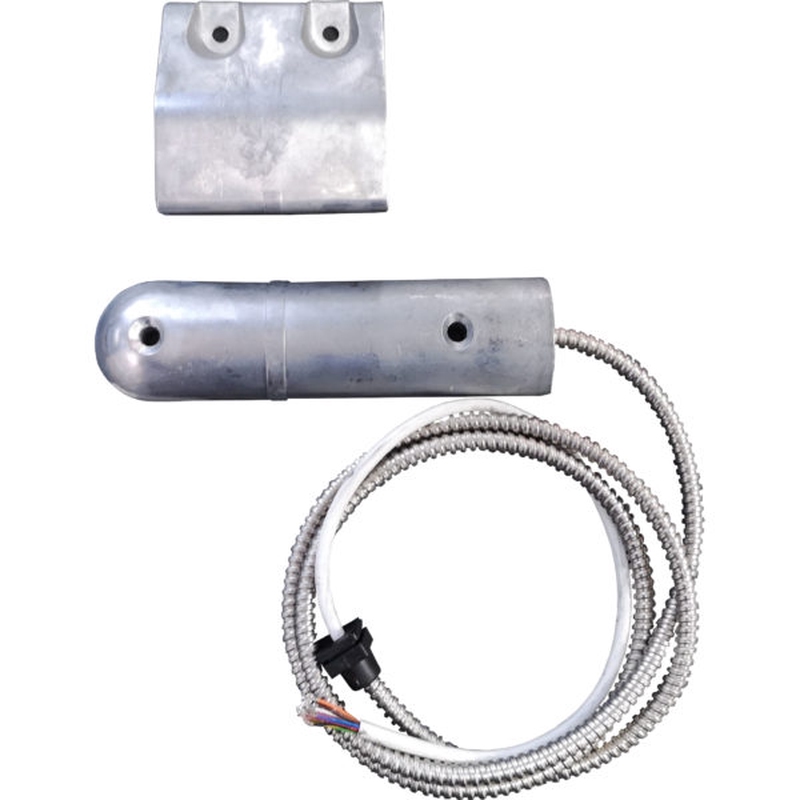

Knight Universal Roller Shutter Contact 1m Armoured Cable G3

Write a review
54.60
BON Enterprises
28 days
YF10C
IN STOCK
+
G3 Double Reed Universal Roller Shutter Contact Contact with Magnetic Interference Detection and Selectable Resistors With Armoured Sleeving.This is compatible with all mainstream UK control panels and includes both eol and alarm by-pass resistor options.Colour: Silver Environmental Class 3 Operation Gap : 35mm Approx Dimensions: 150mm x 40mm x 15m Terminals : 8-Wire Tamper - Sealed unit. Includes Resistors compatible with - Honeywell, Ademco, Scantronic, Menvier, texecom, Pyronix, Castle, Aritech, Europlex, Gardtec and Guardall Control Panels.Alarm Values 1k,2k2 4k7,6k8,8k2 EOL Values 1kr,2k2,4k7,,8k2 Just select the wires as per the instructions to determine the resistance to suit your panel.Note this contact already meets the requirements of BS50131-2-6: 2004 Copy and paste this link into your browser to view our installation video guide:http://www.knightfireandsecurity.com/bulletin.asp IMPORTANT: WHEN FITTING ON FERROUS SURFACES THE OPERATION OF YOUR UNIT CAN BE AFFECTED.YOU NEED TO USE A SPACER ON THE REED CASING. USE SPA-RS. Copy and paste the link below into your browser to see the spacer SPA-RShttp://www.knightfireandsecurity.com/view_item.asp?id=329

Knight Fire & Security YF10C_YF10C-rev4-1.pdf (Knight_Fire___Security_YF10C_YF10C-rev4-1.pdf, 333 Kb) [Download]
