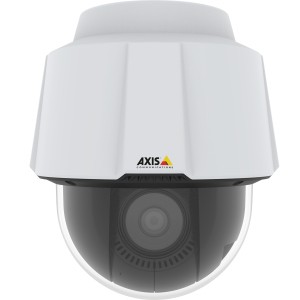

Axis Communications 01681-001 P5655-E 50Hz/32x Zoom HDTV 1080p Camera

Write a review

€2,907.99

Vendor: Security Supplier Sales

Return period: 28 days

CODE: 01681-001

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

Axis 01681-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product color: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Lens viewing angle, horizontal: 58.7°, Lens viewing angle, vertical: 35.7°. Sensor type: CMOS, Optical sensor size: 1/2.8". Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm

Basic data
Item name	Axis Communications 01681-001 P5655-E 50Hz/32x Zoom HDTV 1080p Camera
Product symbol	01681-001
Hierarchy by CATEGORY	Home Security & Automation Surveillance Systems Security Cameras
Hierarchy by MANUFACTURER	Axis
Package sizes (HxWxL)	217 x 188 x 188 mm
Weight gross	2.50 kg
Logistics data
Harmonized System (HS) code	85258900
Weight & dimensions
Height	217.00 millimeter
Width	188.00 millimeter
Depth	188.00 millimeter
Weight	2500.00 gram
Power
Power consumption (typical)	10.50 W
Power consumption (max)	19.00 W
Power source type	DC, PoE
Image sensor
Sensor type	CMOS
Audio
Audio formats supported	ADPCM LC-AAC LPCM
Audio system	2-way
Sample rate	48.00 kHz
Design
IK code	IK10
Form factor	Dome
Protection features	Shock resistant
International Protection (IP) code	IP66
Housing material	Aluminum
Mounting type	Ceiling/wall
Product color	Black, White
Storage
Flash memory	512.00 MB
Internal memory	1024.00 MB
Compatible memory cards	SD SDHC SDXC
Camera
Camera shutter speed	1/66500 - 2 s
Minimum illumination	0.02 lx
Pan speed	350 °/sec
Tilt speed	350 °/sec
icecat_automatic_45207_95	58.7°
icecat_automatic_45208_95	35.7°
Video
Bit rate control	Variable Bit Rate (VBR)
Frame rate	60.00
Supported video modes	1080p
Video formats supported	AVC HEVC H.264 H.265 MPEG4 M-JPEG
Image quality adjustment	Brightness Contrast Saturation Sharpness
Supported graphics resolutions	320 x 180, 1920 x 1080 (HD 1080)
Lens system
Focal length range	4.3 - 137.6 mm
Digital zoom	12x
Optical zoom	32x
Network
Networking standards	IEEE 802.1x IEEE 802.3at
Streaming method	Multicast
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP, CDP
Ethernet interface type	Fast Ethernet
Performance
Connectivity technology	Wired
Certification	NEMA 4X, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 ClassIEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30, EC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, NIST SP500-267
Type	IP security camera
Placement supported	Indoor___outdoor
