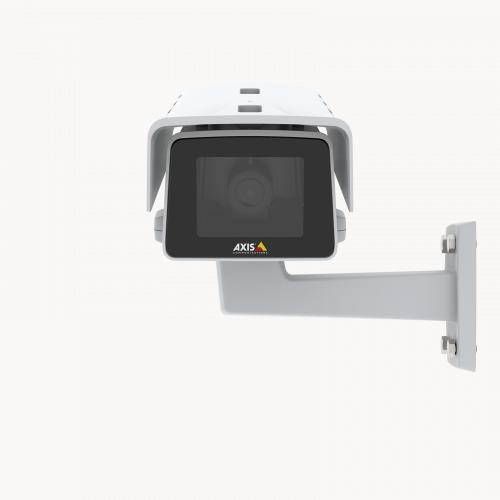

AXIS 02485-001 M1135-E MK II Network Surveillance Camera - Outdoor - 2 MP - 1920 x 1080 - 1080p -...

Write a review
841.88
28 days
02485-001
IN STOCK
+
Axis 02485-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product color: White, Form factor: Box. Minimum illumination: 0.1 lx, Lens viewing angle, horizontal: 90°, Lens viewing angle, vertical: 49°. Sensor type: CMOS, Optical sensor size: 1/2.9". Focal length range: 3 - 10.5 mm

Basic data
Item nameAXIS 02485-001 M1135-E MK II Network Surveillance Camera - Outdoor - 2 MP - 1920 x 1080 - 1080p - Audio - LAN - PoE - Various Lenses
Product symbol02485-001
Hierarchy by CATEGORY
  • Home Security & Automation
  • Surveillance Systems
  • Security Cameras
Hierarchy by MANUFACTURER
  • Axis
Package sizes (HxWxL)108 x 143 x 317 mm
Logistics data
Harmonized System (HS) code
  • 85258900
Weight & dimensions
Height
  • 108.00 millimeter
Width
  • 143.00 millimeter
Depth
  • 317.00 millimeter
Weight (with stand)
  • 1800.00 gram
Width (with stand)
  • 143.00 millimeter
Height (with stand)
  • 240.00 millimeter
Depth (with stand)
  • 372.00 millimeter
Power
Power consumption (Power over Ethernet (PoE))
  • 4.50 W
Power consumption (typical)
  • 4.40 W
Power consumption (max)
  • 6.60 W
DC output voltage
  • 10, 12, 15, 16, 24, 28
Power source type
  • DC, PoE
Image sensor
Sensor type
  • CMOS
Audio
Audio system
  • 2-way
Design
IK code
  • IK10
Form factor
  • Box
International Protection (IP) code
  • IP66
Mounting type
  • Wall
Product color
  • White
Storage
Flash memory
  • 512.00 MB
Camera
Minimum illumination
  • 0.1 lx
icecat_automatic_45207_95
  • 90°
icecat_automatic_45208_95
  • 49°
Video
Video compression formats
  • H.264
  • H.265
  • MPEG4
Frame rate
  • 30.00
Video formats supported
  • H.264
  • H.265
Total megapixels
  • 2.00 mpx
Supported graphics resolutions
  • 160 x 90
Lens system
Focal length range
  • 3 - 10.5 mm
Network
Networking standards
  • IEEE 802.3af
  • IEEE 802.3at
Performance
Connectivity technology
  • Wired
PTZ modes
  • Digital PTZ
Type
  • IP security camera
Placement supported
  • Indoor___outdoor
