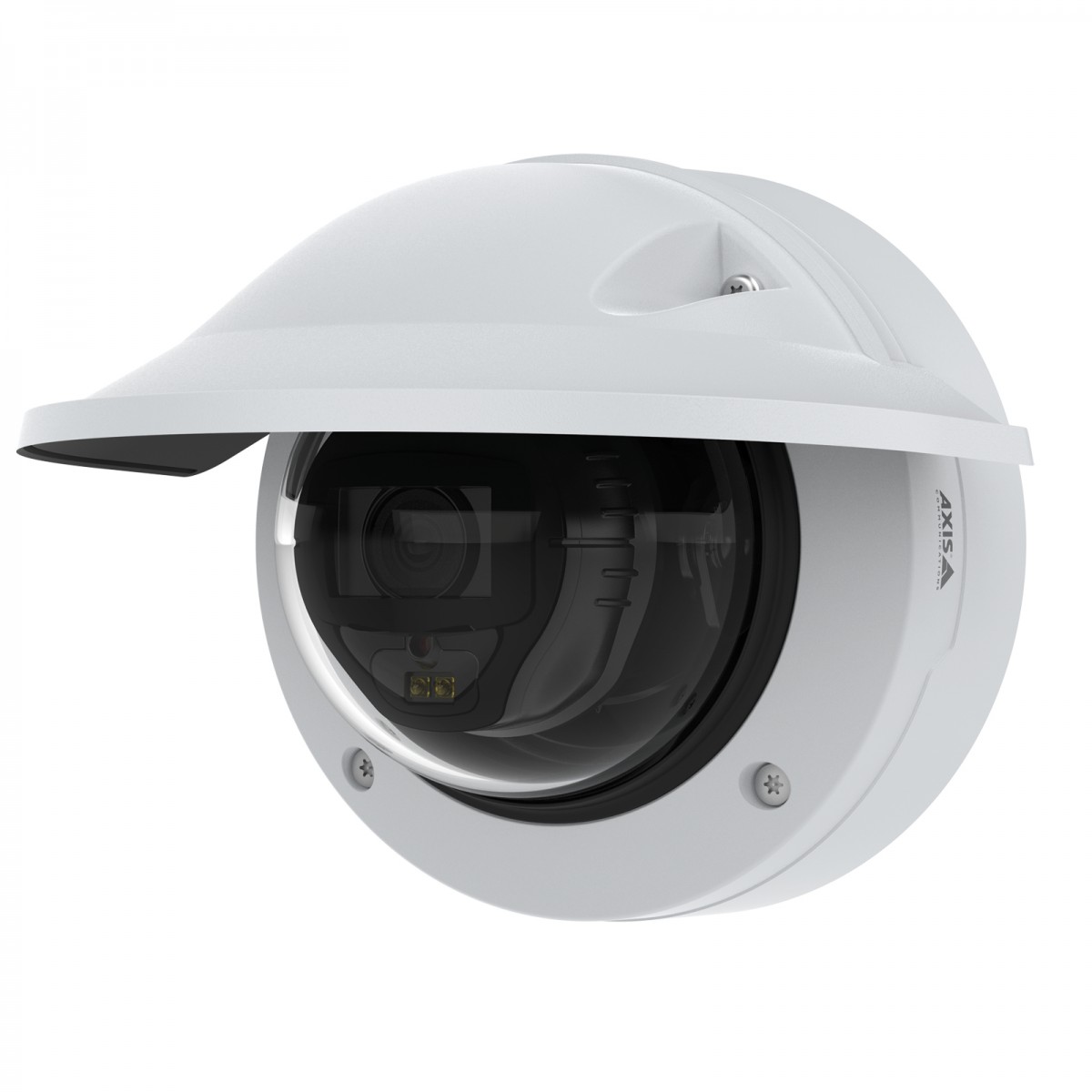

AXIS 02330-001 Outdoor Dome Network Camera - 5MP, Color, Day/Night, Audio, LAN 10/100, PoE Plus C...

Write a review

€1,453.99

Vendor: Security Supplier Sales

Return period: 28 days

CODE: 02330-001

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

Axis 02330-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product color: White, Form factor: Dome. Minimum illumination: 0.13 lx, Angle of rotation: 190°, Tilt angle range: -10 - 80°. Sensor type: CMOS, Optical sensor size: 1/2.7". Focal length range: 3 - 8 mm, Normal focusing range: 1 m

Basic data
Item name	AXIS 02330-001 Outdoor Dome Network Camera - 5MP, Color, Day/Night, Audio, LAN 10/100, PoE Plus Class 3
Product symbol	02330-001
Hierarchy by CATEGORY	Home Security & Automation Surveillance Systems Security Cameras
Hierarchy by MANUFACTURER	Axis
Package sizes (HxWxL)	107 x 200 x 200 mm
Weight gross	0.90 kg
Weight & dimensions
Height	107.00 millimeter
Diameter	149.00 millimeter
Weight	900.00 gram
Power
Power consumption (typical)	6.40 W
Power consumption (max)	12.10 W
Power source type	PoE
Image sensor
Sensor type	CMOS
Design
IK code	IK10
Form factor	Dome
International Protection (IP) code	IP66
Mounting type	Ceiling/wall
Housing material	Polycarbonate (PC)
Product color	White
Storage
Flash memory	8192.00 MB
Internal memory	2048.00 MB
Compatible memory cards	MicroSDHC MicroSDXC MicroSD (TransFlash)
Camera
Camera shutter speed	1/33500 - 1/5 s
Minimum illumination	0.13 lx
Angle of rotation	190.00 degrees
Video
Video compression formats	H.264 H.265 M-JPEG
Gain control type	Auto
Bit rate control	Variable Bit Rate (VBR)
Frame rate	30.00
Total megapixels	5.00 mpx
Image quality adjustment	Brightness Contrast Saturation Sharpness
Lens system
Focal length range	3 - 8 mm
Normal focusing range	1 m
Network
Networking standards	IEEE 802.1x IEEE 802.3af IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP
Performance
Connectivity technology	Wired
PTZ modes	Digital PTZ
Certification	EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Languages support	Simplified Chinese Traditional Chinese German English Spanish French Italian Japanese Korean Polish Portuguese Russian
Type	IP security camera
Placement supported	Outdoor
Night vision
LED type	IR
Night vision distance	40 m
Infra-red wavelength	850.00 nm
Security
Alert notification type	E-mail
