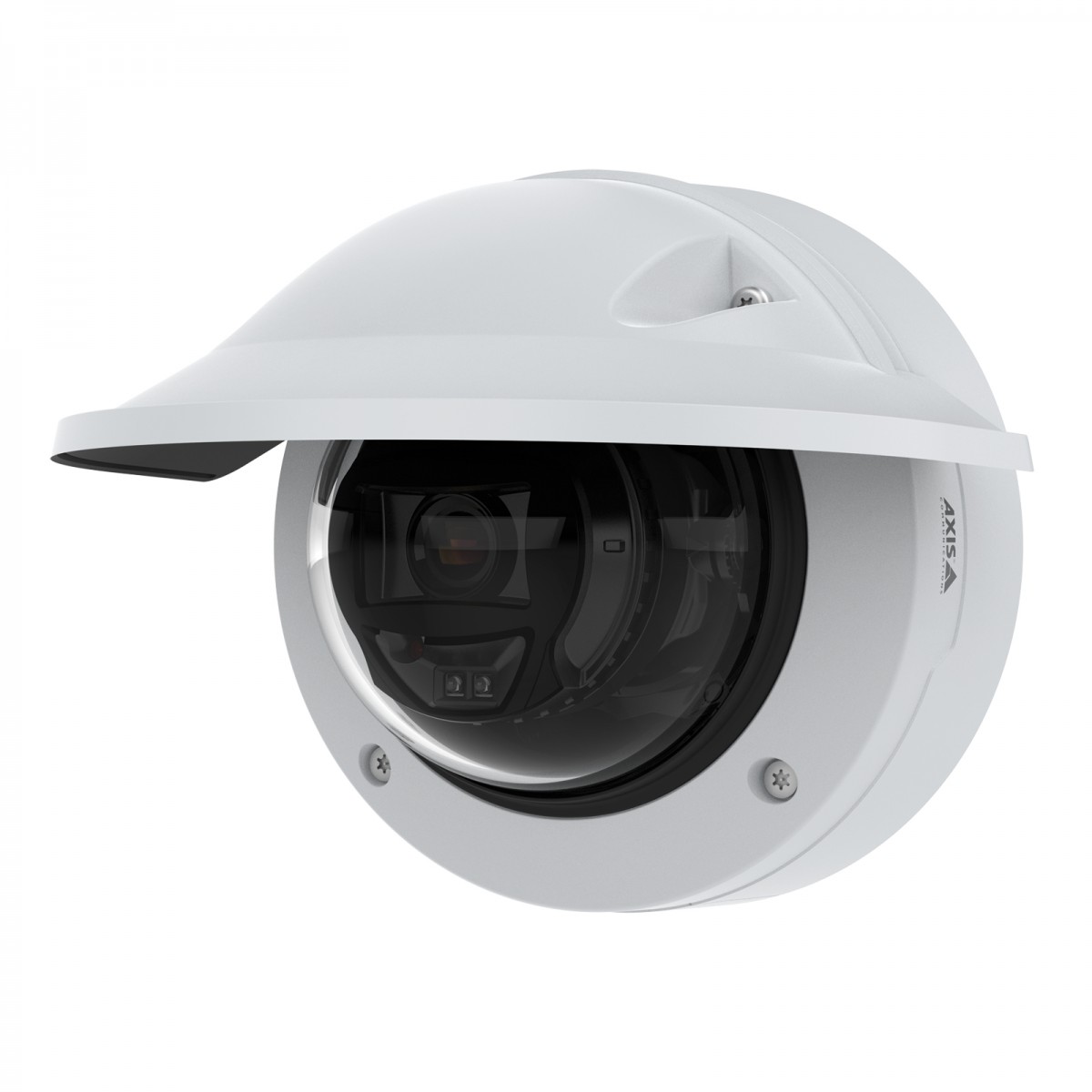

AXIS 02328-001 Outdoor Dome Network Surveillance Camera with 2MP Resolution, Audio, and LAN Conne...

Write a review

€1,093.01

Vendor: Security Supplier Sales

Return period: 28 days

CODE: 02328-001

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

Axis 02328-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product color: White, Form factor: Dome. Angle of rotation: 175°, Tilt angle range: -75 - 75°, Pan range: -180 - 180°. Sensor type: CMOS, Optical sensor size: 1/2.8". Focal length range: 3.4 – 8.9, Normal focusing range: 0.5 m

Basic data
Item name	AXIS 02328-001 Outdoor Dome Network Surveillance Camera with 2MP Resolution, Audio, and LAN Connectivity
Product symbol	02328-001
Hierarchy by CATEGORY	Home Security & Automation Surveillance Systems Security Cameras
Hierarchy by MANUFACTURER	Axis
Package sizes (HxWxL)	104 x 200 x 270 mm
Weight gross	0.80 kg
Logistics data
Harmonized System (HS) code	85258900
Weight & dimensions
Height	104.00 millimeter
Diameter	149.00 millimeter
Weight	800.00 gram
Power
Power consumption (typical)	4.80 W
Power consumption (max)	10.70 W
Power source type	PoE
Image sensor
Sensor type	CMOS
Design
IK code	IK10
Form factor	Dome
International Protection (IP) code	IP66
Housing material	Polycarbonate (PC)
Mounting type	Ceiling/wall
LED indicators	Yes
Product color	White
System requirements
Windows operating systems supported	Yes
Storage
Flash memory	8192.00 MB
Internal memory	1024.00 MB
Camera
Camera shutter speed	1/66500 - 2 s
Minimum illumination	0 lx
Angle of rotation	175.00 degrees
Video
Video compression formats	H.264
Bit rate	Configurable bit rate
Gain control type	Auto
Frame rate	30.00
Total megapixels	2.00 mpx
Lens system
Focal length range	3.4 – 8.9
Normal focusing range	0.5 m
Network
Networking standards	IEEE 802.1x IEEE 802.3af IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, S
Performance
Connectivity technology	Wired
PTZ modes	Digital PTZ
Certification	EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Languages support	Simplified Chinese Traditional Chinese German English French Italian Korean Portuguese Russian
Type	IP security camera
Placement supported	Outdoor
Night vision
LED type	IR
Night vision distance	40 m
Infra-red wavelength	850.00 nm
Security
Alert notification type	E-mail, Text alert message

Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
