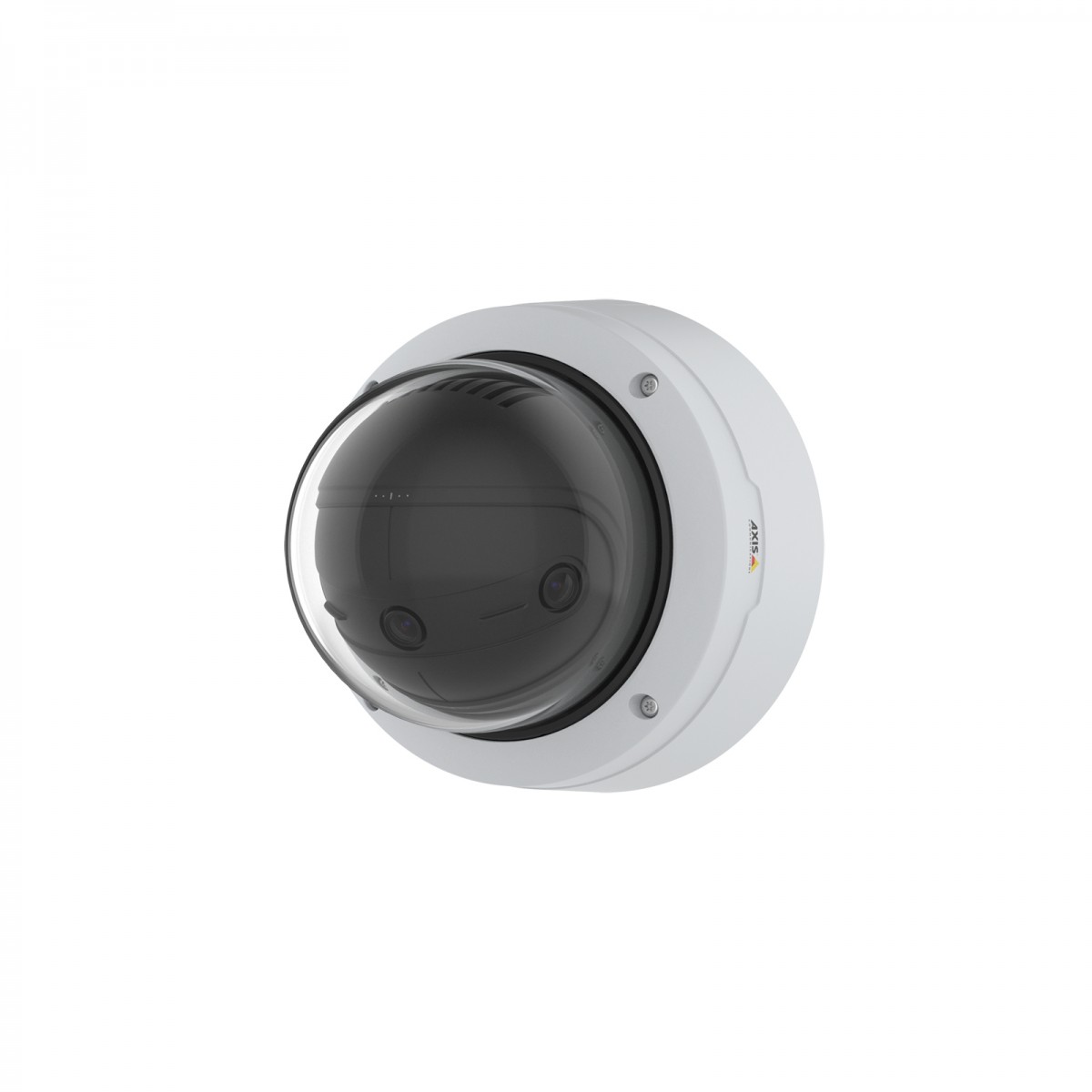

AXIS 02060-001 Outdoor Dome Panoramic Camera - 13MP, 5120 x 2560, Fixed Lens, Audio, GbE, PoE - W...

Write a review

€3,084.88

Vendor: Security Supplier Sales

Return period: 28 days

CODE: 02060-001

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

Axis 02060-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product color: White, Housing material: Aluminum, Polycarbonate (PC). Minimum illumination: 0.05 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 90°. Sensor type: CMOS, Optical sensor size: 1/2.8". Fixed focal length: 0.126" (3.2 mm)

Basic data
Item name	AXIS 02060-001 Outdoor Dome Panoramic Camera - 13MP, 5120 x 2560, Fixed Lens, Audio, GbE, PoE - Weatherproof - Color
Product symbol	02060-001
Hierarchy by CATEGORY	Home Security & Automation Surveillance Systems Security Cameras
Hierarchy by MANUFACTURER	Axis
Package sizes (HxWxL)	221 x 206 x 230 mm
Weight gross	2.20 kg
Logistics data
Harmonized System (HS) code	85258900
Weight & dimensions
Height	221.00 millimeter
Width	206.00 millimeter
Weight	2200.00 gram
Power
Power consumption (typical)	11.00 W
Power consumption (max)	18.00 W
Power source type	PoE
Image sensor
Sensor type	CMOS
Audio
Voice codecs	G.711 G.726 OPUS
Audio system	2-way
Design
IK code	IK10
International Protection (IP) code	IP66, IP67
Mounting type	Ceiling/wall
Housing material	Aluminum, Polycarbonate (PC)
Product color	White
Storage
Flash memory	512.00 MB
Compatible memory cards	MicroSDHC MicroSDXC MicroSD (TransFlash)
Camera
Camera shutter speed	1/91000 - 1/25, 1/50000 - 1/25 s
Minimum illumination	0.05 lx
icecat_automatic_45207_95	180°
icecat_automatic_45208_95	90°
Video
Video compression formats	AVC HEVC H.264 H.265 MPEG4 M-JPEG
Frame rate	30.00
Total megapixels	13.00 mpx
Image quality adjustment	Brightness Contrast Saturation Sharpness
Lens system
Fixed focal length	3.20 millimeter
Network
Networking standards	IEEE 802.1x IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS , TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CD
Ethernet interface type	Gigabit Ethernet
Performance
Connectivity technology	Wired
Certification	EAC, EN 55032 A, EN 55035, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35, CISPR 24, CISPR 35 IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 4X, NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 512.6) NIST SP500-267
Languages support	Simplified Chinese Traditional Chinese German English Spanish French Italian Japanese Korean Portuguese Russian
Type	IP security camera
Placement supported	Outdoor
Security
Security algorithms	EAP-TLS FIPS 140-2
