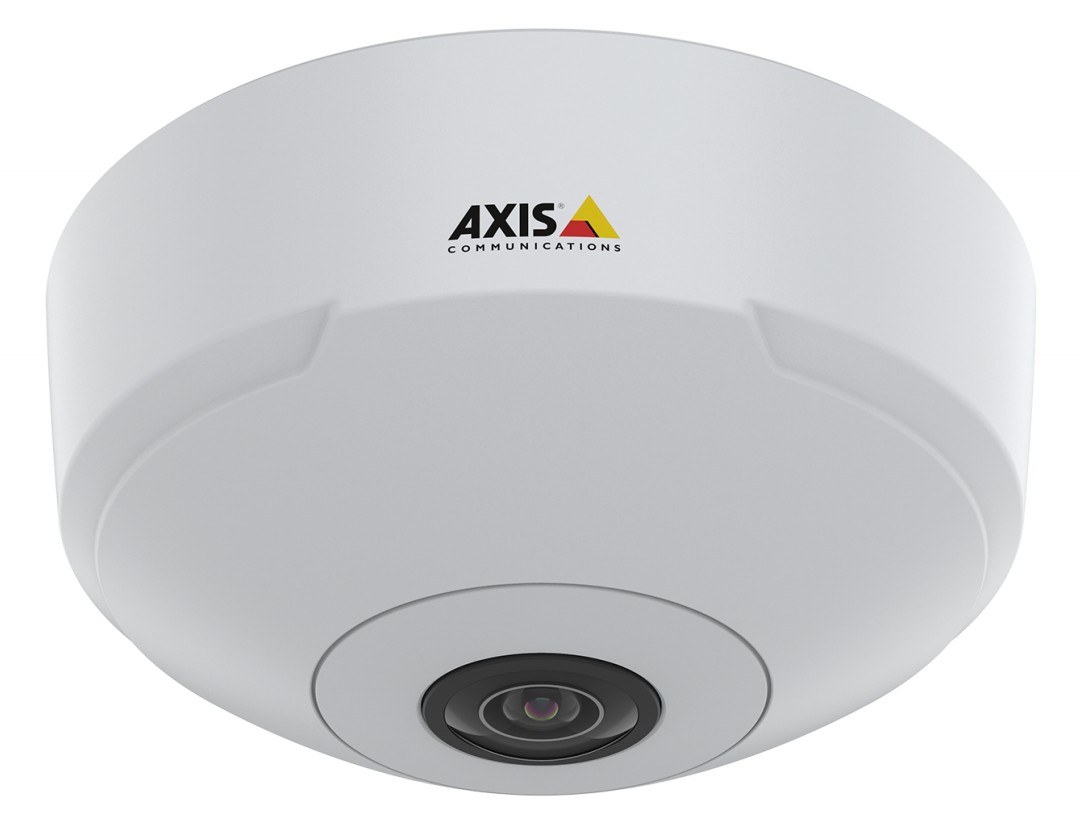

AXIS 01732-001 Network Dome Camera - 12 MP - Color - 2880 x 2880 - Fixed Iris - Fixed Lens - Audi...

Write a review

€991.13

Vendor: Security Supplier Sales

Return period: 28 days

CODE: 01732-001

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

Axis 01732-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product color: Black, White, Form factor: Dome. Minimum illumination: 0.06 lx, Field of view (FOV) angle: 360°, Lens viewing angle, horizontal: 185°. Sensor type: CMOS, Optical sensor size: 1/1.7". Fixed focal length: 0.0650" (1.65 mm)

Basic data
Item name	AXIS 01732-001 Network Dome Camera - 12 MP - Color - 2880 x 2880 - Fixed Iris - Fixed Lens - Audio - LAN 10/100 - MJPEG, H.264, H.265, MPEG-4 AVC - PoE
Product symbol	01732-001
Hierarchy by CATEGORY	Home Security & Automation Surveillance Systems Security Cameras
Hierarchy by MANUFACTURER	Axis
Package sizes (HxWxL)	49 x 101 x 101 mm
Weight gross	0.30 kg
Logistics data
Harmonized System (HS) code	85258900
Weight & dimensions
Height	49.00 millimeter
Width	101.00 millimeter
Depth	101.00 millimeter
Weight	300.00 gram
Power
Power consumption (typical)	3.70 W
Power consumption (max)	6.49 W
Power source type	PoE
Image sensor
Sensor type	CMOS
Audio
Audio system	2-way
Design
Form factor	Dome
Mounting type	Ceiling
Housing material	Aluminum
Product color	Black, White
Storage
Flash memory	512.00 MB
Compatible memory cards	MicroSDHC MicroSDXC MicroSD (TransFlash)
Camera
Minimum illumination	0.06 lx
icecat_automatic_45207_95	185°
icecat_automatic_45208_95	185°
Field of view (FOV) angle	360.00 degrees
Video
Bit rate control	Variable Bit Rate (VBR)
Frame rate	30.00
Video formats supported	AVC HEVC H.264 H.265 MPEG4
Total megapixels	12.00 mpx
Image quality adjustment	Brightness Contrast Saturation Sharpness
Supported graphics resolutions	2048 x 1536 (QXGA), 2560 x 1920, 2880 x 2880
Lens system
Fixed focal length	1.65 millimeter
Network
Networking standards	IEEE 802.1x IEEE 802.3af IEEE 802.3at
Streaming method	Multicast
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPS , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT, Syslog
Ethernet interface type	Fast Ethernet
Performance
Connectivity technology	Wired
PTZ modes	Digital PTZ
Certification	IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPS , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IEN 55032 Class B, EN 55035, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A and B, ICES-3(A)/NMB-3(A), VCCI Class B, RCM AS/NZS CISPR 32 Class B, KC KN32 Class B, KC KN35GMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT, Syslog, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 6, NIST SP500-267
Type	IP security camera
Placement supported	Indoor
Security
Alert notification type	E-mail
