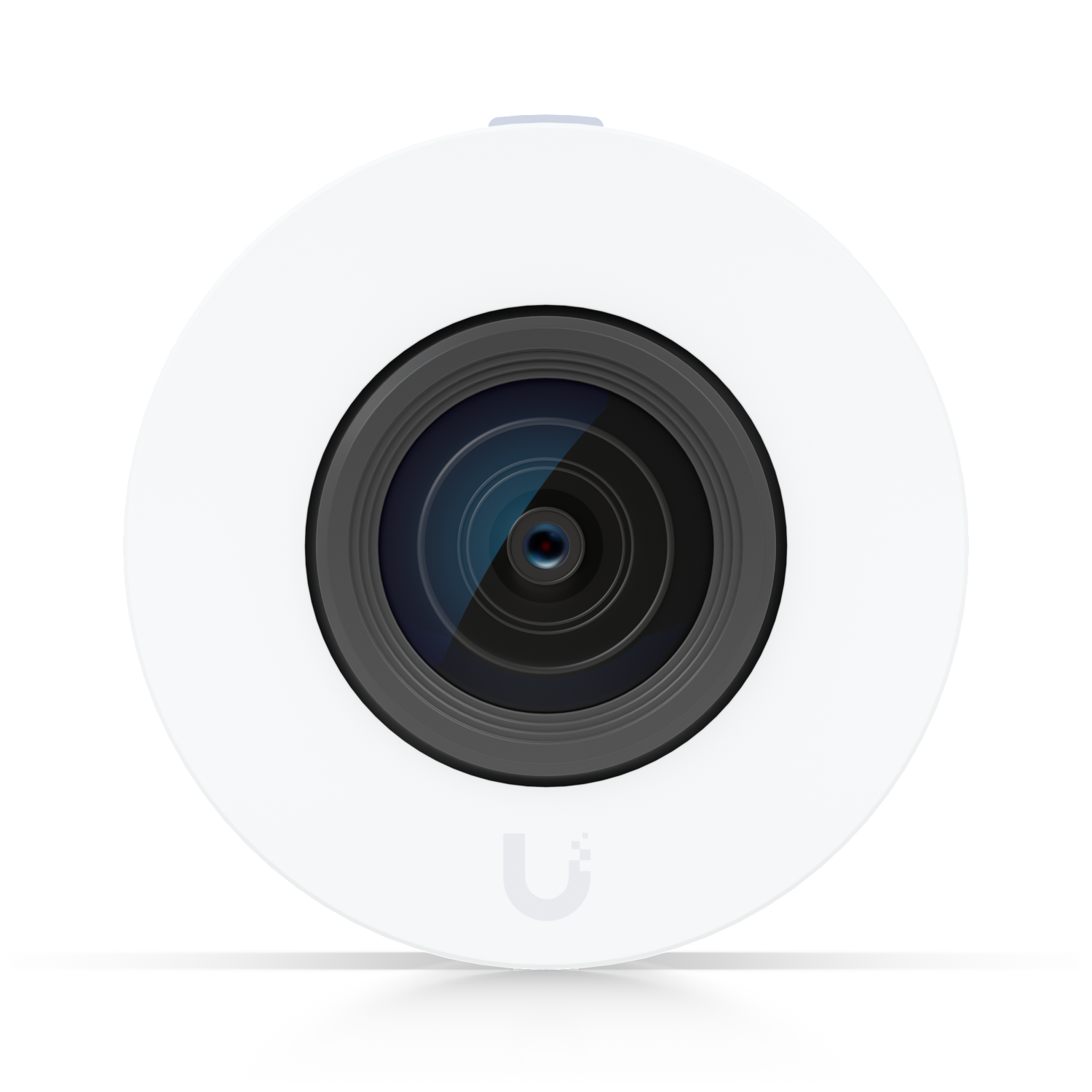

The UVC-AI-Theta-ProLens50 is a premium long-distance lens designed to enhance your imaging experience. With its superior image quality and exceptional low-light performance, this lens ensures stunning visuals in various lighting conditions. It connects seamlessly to an AI Theta Hub, making it a perfect choice for users seeking advanced imaging solutions.
Constructed with durability in mind, the UVC-AI-Theta-ProLens50 features an aluminum alloy and polycarbonate enclosure. With compact dimensions of Ø36.6 x 58.9 mm (Ø1.4 x 2.3”) and a lightweight design of 60 g (2.1 oz), it is engineered for easy handling while maintaining robust performance. This lens is intended for indoor use only, ensuring reliable operation in controlled environments.
Equipped with an 8MP sensor and a fixed focal length lens, the UVC-AI-Theta-ProLens50 provides a wide view angle of H: 53°, V: 31°, D: 60°, allowing for expansive coverage in your video footage. It captures high-resolution video at 3840 x 2160 (16:9) with a maximum frame rate of 24 FPS. Additionally, it offers an array of image settings, including color, brightness, and contrast adjustments, ensuring versatility for various applications.
This advanced lens operates on a Theta proprietary power system, requiring a 5V DC, 0.5A power supply with a maximum consumption of 2.5W. The UVC-AI-Theta-ProLens50 can be easily mounted on walls or ceilings, with additional angle mounting options available separately. With its operating temperature range of 0 to 40° C (32 to 104° F) and a humidity tolerance of 10 to 90%, this lens is designed to perform reliably in various indoor environments.
| Basic data | |
| Item name | Ubiquiti UVC-AI-Theta-Lens AI Theta Lens |
| Product symbol | UVC-AI-Theta-Lens |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 90 x 70 x 70 mm |
| Weight gross | 0.10 kg |
| Weight & dimensions | |
| Depth |
|
| Diameter |
|
| Weight |
|
| Power | |
| Input voltage |
|
| Power consumption (max) |
|
| Technical details | |
| icecat_automatic_48024_0 |
|
| Image sensor | |
| Sensor type |
|
| Viewing angle, diagonal |
|
| Viewing angle, horizontal |
|
| Viewing angle, vertical |
|
| Megapixel |
|
| Packaging data | |
| Quantity per pack |
|
| Features | |
| Video compression formats |
|
| Type |
|
| Placement supported |
|
| Compatibility |
|
| Housing material |
|
| Brand compatibility |
|
| Product color |
|
| Ports & interfaces | |
| Connectivity technology |
|
