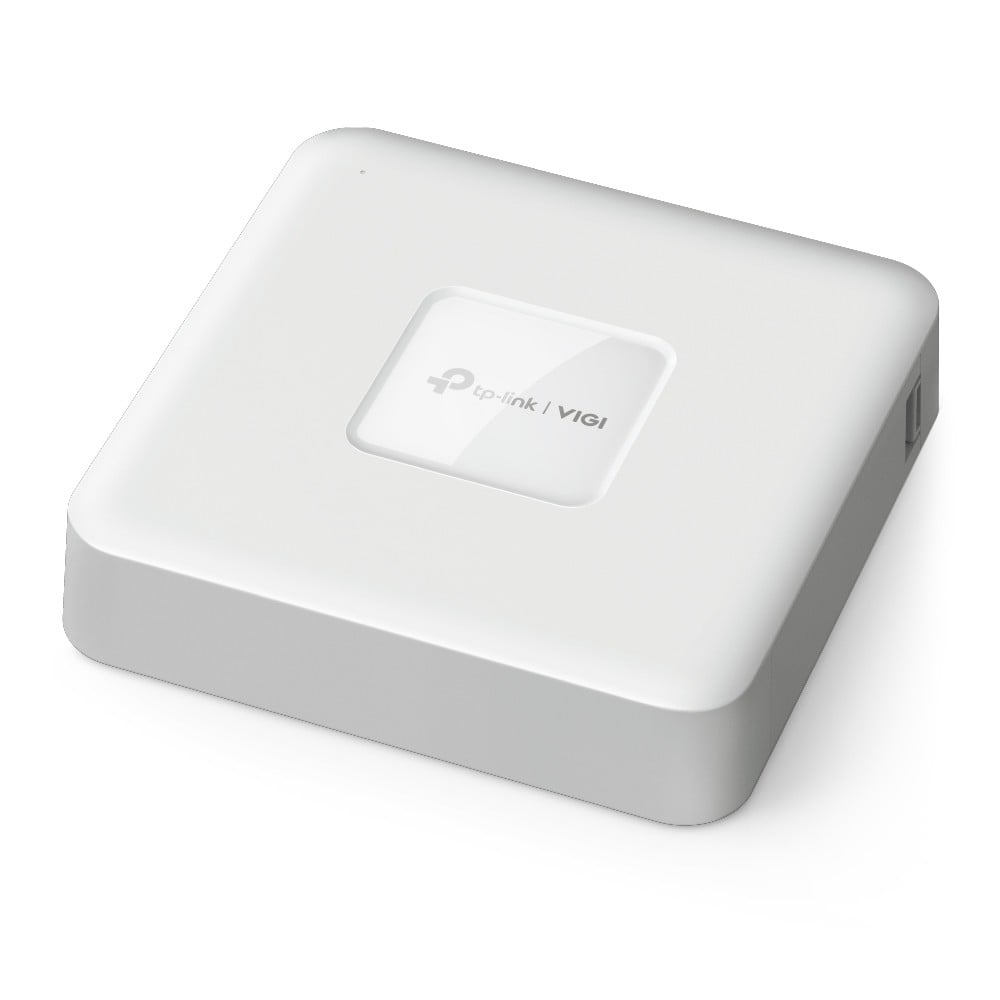

TP-Link VIGI NVR1104H-4P 4 Channel PoE Network Video Recorder

Write a review

€148.06

Vendor: Security Supplier Sales

Return period: 28 days

CODE: VIGI NVR1104H-4P

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

The TP-Link VIGI NVR1104H-4P is a state-of-the-art 4-channel PoE network video recorder designed to provide seamless video input and simultaneous playback across all channels. This advanced device supports a maximum resolution of 3840 x 2160 pixels, ensuring that every detail is captured in stunning clarity. Compatible with multiple video formats, including 720p and 1080p, it offers versatile options for various surveillance needs, making it an ideal choice for both residential and commercial applications.

Equipped with a SATA HDD interface, the VIGI NVR1104H-4P facilitates efficient data storage management, allowing users to easily manage and retrieve recorded footage. The device operates on copper Ethernet cabling technology and supports networking standards such as IEEE 802.3, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3u, ensuring reliable connectivity. With configurable Ethernet LAN data rates of 10 and 100 Mbit/s, this recorder is designed to adapt to various network environments.

One of the standout features of the TP-Link VIGI NVR1104H-4P is its support for advanced video compression technologies including H.264, H.264+, H.265, and H.265+. These technologies optimize storage and bandwidth usage while maintaining high video fidelity, setting this model apart from competitors. With a typical power consumption of 4.82 watts and an output voltage of 53.5 V, this device is not only efficient but also environmentally friendly, making it a smart choice for modern surveillance solutions.

Basic data
Item name	TP-Link VIGI NVR1104H-4P 4 Channel PoE Network Video Recorder
Product symbol	VIGI NVR1104H-4P
Hierarchy by CATEGORY	Home Security & Automation Surveillance Systems Network Video Recorders (NVR)
Hierarchy by MANUFACTURER	TP-LINK
Package sizes (HxWxL)	250 x 70 x 400 mm
Weight gross	1.40 kg
Weight & dimensions
Height	43.00 millimeter
Width	200.30 millimeter
Depth	200.30 millimeter
Package depth	401.50 millimeter
Package height	64.50 millimeter
Package width	251.50 millimeter
Package weight	1370.00 gram
Power
Total Power over Ethernet (PoE) budget	53.00 W
Output voltage	53.5 V
Output current	1.31 A
Power consumption (typical)	4.82 W
Technical details
Sustainability certificates	CE
icecat_automatic_48024_0	CE EAC Federal Communications Commission (FCC)
Hard drive
Maximum storage capacity	10.00 TB
HDD interface	SATA
Features
LED indicators	Yes
Product color	White
Performance
Video input channels	4 channels
Number of simultaneously playbacked channels	4 channels
Input bandwidth	80.00 Mb/s
Output bandwidth	60.00 Mb/s
Video formats supported	H.264 H.264+ H.265 H.265+
Supported resolutions	HDMI^ 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz VGA: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz
Video recording modes	1080p 720p
Ports & interfaces
Audio output	1
Networking standards	IEEE 802.3 IEEE 802.3af IEEE 802.3at IEEE 802.3u
Supported network protocols	TCP/IP, DHCP, DNS, NTP, UPnP
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN data rates	10,100 Mbit/s
