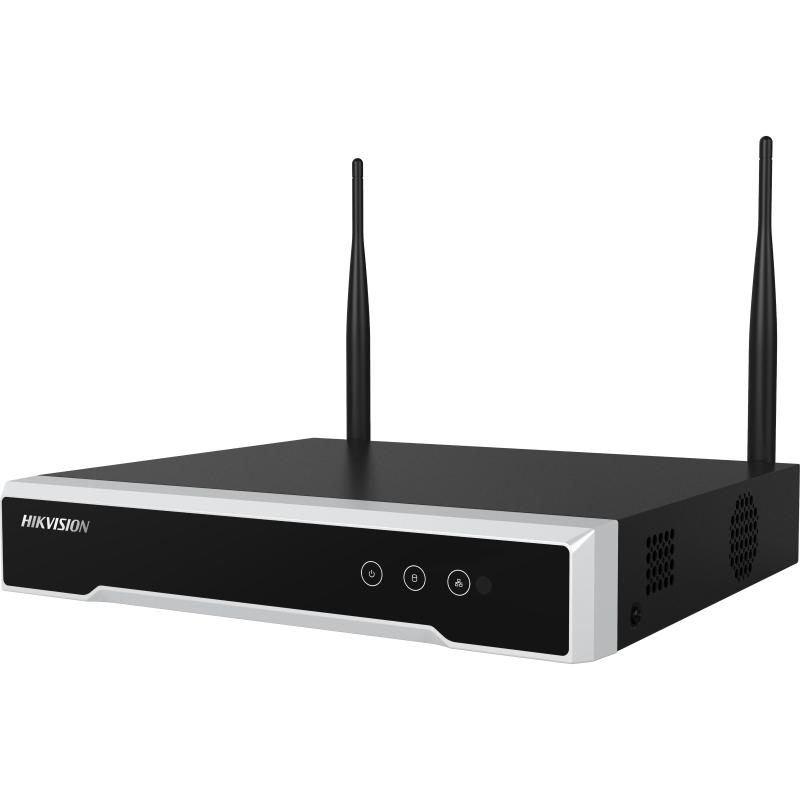

Hikvision DS-7104NI-K1/W/M(C) 4-ch Mini 1U WiFi NVR

Write a review

€113.59

Vendor: Security Supplier Sales

Return period: 28 days

CODE: DS-7104NI-K1/W/M(C)

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

This compact network video recorder (NVR) supports up to four channels and offers wireless connectivity, making it suitable for small-scale video surveillance setups. The device is housed in a Mini 1U chassis, ensuring it occupies minimal space while providing robust functionality. It features high-definition video output, which supports resolutions up to 1080p for clear and detailed monitoring.

The unit includes support for both H.265 and H.264 video compression technologies, enhancing storage efficiency and reducing bandwidth requirements for streamed video. Users can benefit from simultaneous HDMI and VGA outputs, allowing the connection of multiple monitors for versatile viewing options.

With the capability to connect to WiFi, this NVR facilitates flexible installation options, free from the constraints of wired infrastructure. It also includes a built-in SATA interface that supports one hard drive with a capacity of up to 6TB, providing ample storage for recorded video.

Additional features include remote viewing capabilities through a compatible application, enabling users to monitor their surveillance footage from anywhere. This device also supports various smart features tailored for surveillance efficiency, including motion detection and video tampering alarms.

Basic data
Item name	Hikvision DS-7104NI-K1/W/M(C) 4-ch Mini 1U WiFi NVR
Product symbol	DS-7104NI-K1/W/M(C)
Hierarchy by CATEGORY	Home Security & Automation Surveillance Systems Network Video Recorders (NVR)
Hierarchy by MANUFACTURER	Hikvision
Package sizes (HxWxL)	280 x 80 x 400 mm
Weight gross	1.50 kg
Weight & dimensions
Height	48.00 millimeter
Width	265.00 millimeter
Depth	246.00 millimeter
Weight	1600.00 gram
Hard drive
Maximum storage capacity	6.00 TB
Wireless LAN features
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi data rate (max)	144
Wi-Fi standards	802.11b 802.11g Wi-Fi 4 (802.11n)
Features
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN50130-4, EN 61000-3-2,EN 61000-3-3
Rack capacity	1U
Product color	Black
Performance
Number of users	16 user(s)
Video input channels	4 channels
Number of simultaneously playbacked channels	4 channels
Audio formats supported	G.711 μ-law G.726 MP2L2
Input bandwidth	50.00 Mb/s
Output bandwidth	40.00 Mb/s
Video formats supported	H.264 H.264+ H.265 H.265+
Supported resolutions	1920 x 1080px, 1280 x 1024px, 1280 x 720px, 1024 x 768px
Ports & interfaces
Audio output	1
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Ethernet LAN data rates	10,100 Mbit/s
