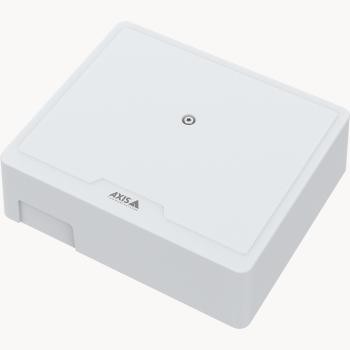

AXIS 02368-001 A1210 Door Control - Wired - Serial RS-485/Gigabit Ethernet/Wiegand - White NCS S ...

Write a review

€721.65

Vendor: Security Supplier Sales

Return period: 28 days

CODE: 02368-001

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

Axis 02368-001. Internal memory: 0.512 GB, Internal storage capacity: 2 GB, Storage media: Flash. Operating voltage: 12 V, DC voltage range: 11.5 - 12.5 V. Width: 5.67" (144 mm), Depth: 4.8" (122 mm), Height: 1.97" (50 mm)

Basic data
Item name	AXIS 02368-001 A1210 Door Control - Wired - Serial RS-485/Gigabit Ethernet/Wiegand - White NCS S 1002-B
Product symbol	02368-001
Hierarchy by CATEGORY	Home Security & Automation Access & Control Security Door Controllers
Hierarchy by MANUFACTURER	Axis
Package sizes (HxWxL)	50 x 144 x 122 mm
Weight gross	0.65 kg
Weight & dimensions
Height	50.00 millimeter
Width	144.00 millimeter
Depth	122.00 millimeter
Weight	645.00 gram
Power
Operating voltage	12.00 volt
DC voltage range	11.5 - 12.5 V
Technical details
Maximum number of doors	1 door(s)
Supported network protocols	IPv4, IPv6, HTTP, HTTPSc, TLSc, QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SOCKS, SSH, MQTT v3.1.1, Syslog
Case design	Housing
Performance
Internal memory	0.51 GB
Storage media	Flash
Certification	UL 2043 UL294 EAC, EN 55035, EN 55032 Class B, EN 50130-4, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class B, KC KN35 IEC/EN/UL 62368-1, UL 294, UL 2043 Environment NEMA TS 2 (2.2.7-2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 CSA C22.2 No. 205-1983
Internal storage capacity	2.00 GB
Ethernet LAN data rates	10,100,1000 Mbit/s
