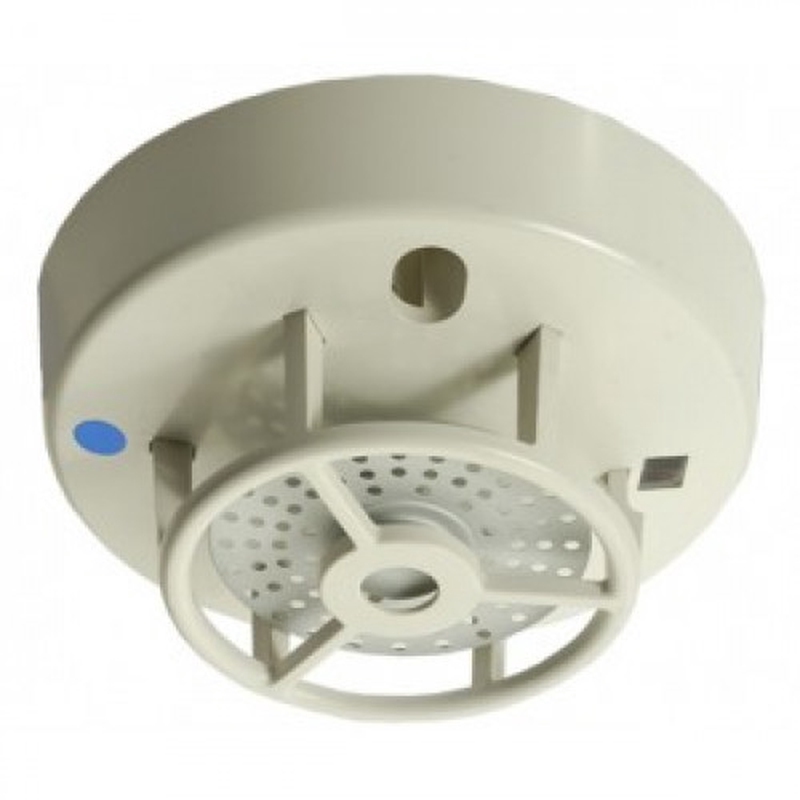

Hochiki DFG-60BLKJ Weatherproof Heat Detector (No Base Required)
Model DFG-60BLKJ is a 60 °C Fixed Temperature Waterproof Heat Detector, the detector uses a bi-metallic strip to sense temperature change, therefore consuming minimal standby current and providing high reliability.
The DFG-60BLKJ is particularly suited to environments, which are exposed to high levels of condensation or are hosed down. The detector has a wide operating margin allowing it to respond to both slow and fast increases in temperature; it can also sense temperature reliably in a horizontal or vertical position.
The DFG-60BLKJ requires no mounting base as short flying leads are provided for connection to the conventional zone and remote LED. If a backbox is required, then the DFG-60BLKJ can be mounted using the Hochiki MBB-1 Marine Approved back Box.
Key Features:
Waterproof design rated to IP67
Low profile shape
Utilises a bi-metallic strip to sense temperature change
No Mounting base required
Minimal standby current
Approved by LPCB & VdS
Model DFG-60BLKJ is a 60 °C Fixed Temperature Waterproof Heat Detector, the detector uses a bi-metallic strip to sense temperature change, therefore consuming minimal standby current and providing high reliability.
The DFG-60BLKJ is particularly suited to environments, which are exposed to high levels of condensation or are hosed down. The detector has a wide operating margin allowing it to respond to both slow and fast increases in temperature; it can also sense temperature reliably in a horizontal or vertical position.
The DFG-60BLKJ requires no mounting base as short flying leads are provided for connection to the conventional zone and remote LED. If a backbox is required, then the DFG-60BLKJ can be mounted using the Hochiki MBB-1 Marine Approved back Box.
Key Features:
Waterproof design rated to IP67
Low profile shape
Utilises a bi-metallic strip to sense temperature change
No Mounting base required
Minimal standby current
Approved by LPCB & VdS
