Hochiki Single Zone Monitor with SCI

Write a review
72.05
BON Enterprises
28 days
CHQ-SZM2(SCI)
IN STOCK
+

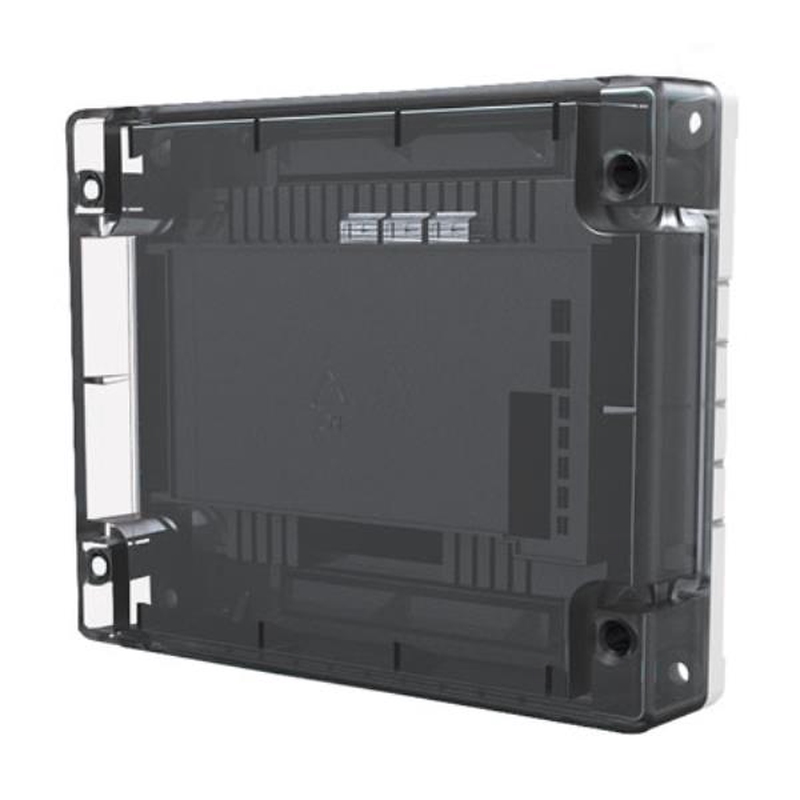

Model CHQ-SZM2(SCI) is a Single Zone Monitor designed to allow up to 6 conventional detectors to be interfaced to Hochiki’s ESP analogue addressable system. The unit is also available as a DIN Rail mountable version; both models feature an integral short-circuit isolator.

The CHQ-SZM2(SCI) utilises simple DIL switches for reliable addressing.

A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-SZM2(SCI), increases the IP rating to IP65.

The conventional zone on the CHQ-SZM2(SCI) does not support any line continuity options; if Call Points are being interfaced they should be wired at the beginning of the zone.

Hochiki CHQ-SZM2_SCI__1433820-00 Product Specification 01.pdf (Hochiki_CHQ-SZM2_SCI__1433820-00_Product_Specification_01.pdf, 98 Kb) [Download]

Hochiki CHQ-SZM2_SCI__1433820-00 Installation Instructions 01.pdf (Hochiki_CHQ-SZM2_SCI__1433820-00_Installation_Instructions_01.pdf, 452 Kb) [Download]
