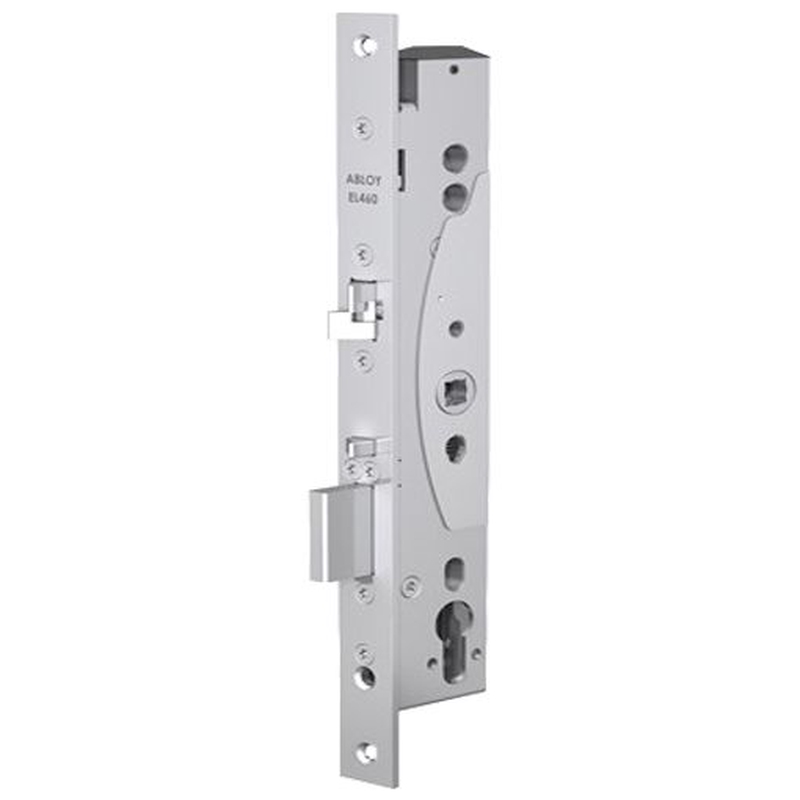

ABLOY® EL460 Solinoid LockABLOY® EL460 is a handle controlled solenoid lock used in narrow profile doors. Handle controlled locks are best suited in medium traffic doors. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. The locks can be used both in exit and fire rated doors (EN). Recommended to be used in interior doors of business premises, public buildings, hospitals, educational premises etc.High security locks ABLOY® EL460 are used especially in situations where the advantages of handle-controlled unlocking have to be combined with the mechanical security requirements. The integrated monitoring contacts from the lock can be connected to the different systems.When door closes, dead bolt is thrown out automatically, double action latch is blocked and the lock case is secured in two points. Only the outside handle is electrically controlled. The lock can always be opened by inside handle. Mechanical opening by cylinder is always possible.The exit side settings and selecting between fail-locked and fail-unlocked can be performed on the lock as required.ABLOY® EL460 with split spindle functionOutside handle is engaged electrically, e.g. by electric access control. By pressing engaged handle, dead bolt is retracted and double action latch released.Inside handle opens lock mechanically (exit function), no need for electric control.FeaturesMechanical automatic locking systembackset 30mmNon-handedCan be changed between fail-unlocked andfail-lockedBurglary-resistant due to dead bolt with 20 mm throwMechanical override with cylinderMonitoring functionsDoor statusHandle down20mm deadbolt, 10mm double action boltBolt deadlockedBolt in9mm spindle24mm forend plateKey cylinder usedOperating voltage 12 – 24 V DC STAB (-10%, +15%).Current max. 0.55 A (12V DC), 0.27 A (24V DC).Idle0.24 A (12V DC), 0.11 A (24V DC).Micro switches max. 0.5 A 30 V AC/DC resist, 10 W.Sabotage loop
