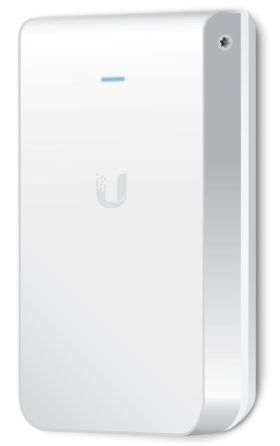

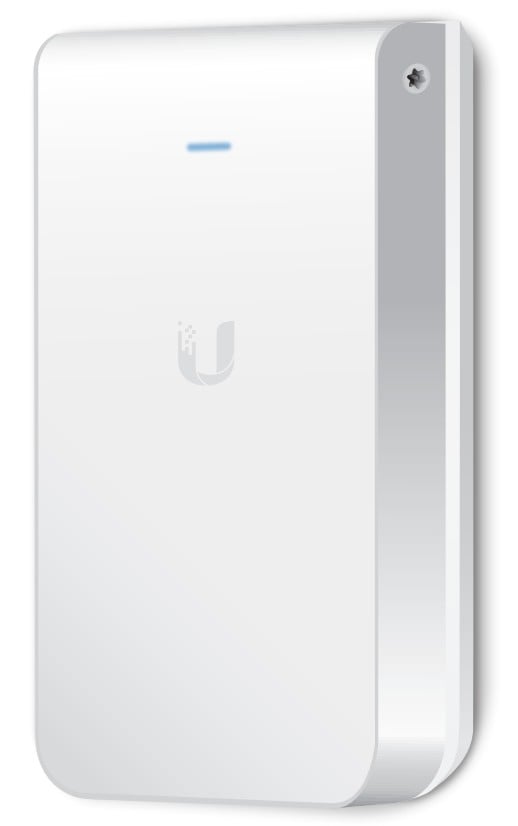

Ubiquiti Networks UniFi HD In-Wall 1733 Mbit/s White Power over Ethernet (PoE)
UniFi IW HD
The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser and the UniFi app (iOS or AndroidTM), the UniFi application is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Integrated Gigabit Switch
Four ports are available for bridging – one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+ switch.
Superior Processing Power
The UniFi IW HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.
Power over Ethernet (PoE) Standard
The UniFi IW HD AP can be conveniently powered by an 802.3af or 802.at compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch.
Quick and Simple Installation
The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware.
Customizable with Various Skins
Optional skins (sold separately) allow the UniFi IW HD AP to discreetly blend into its setting.
UniFi Controller
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
Additional Product Notes
- 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2x2 MIMO on 2.4GHz (300Mbps max PHY rate)
- 802.3af for base functionality. 802.3at required if using PoE passthrough
- 1x4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE passthrough (port 1 only)
| Maximum data transfer rate | Wi-Fi data rate (max) | Ethernet LAN data rates | WAN connectiony | Security algorithms | Placement | Antennas quantity |
| 1733 Mbit/s | 1733 Mbit/s | 10,100,1000 Mbit/s | Ethernet (RJ-45) | WEP,WPA,WPA-AES,WPA-Enterprise,WPA-PSK,WPA-TKIP,WPA2,WPA2-EAP,WPA2-TKIP | Wall | 4 |
| Basic data | |
| Item name | Ubiquiti Networks UniFi HD In-Wall 1733 Mbit/s White Power over Ethernet (PoE) (UAP-IW-HD) |
| Product symbol | UAP-IW-HD |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 140 x 190 x 30 mm |
| Weight gross | 0.35 kg |
| Logistics data | |
| Harmonized System (HS) code |
|
| Weight & dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Weight |
|
| Antenna | |
| Antenna type |
|
| Antenna gain level (max) |
|
| Antenna features |
|
| Power | |
| AC input voltage |
|
| Power consumption (max) |
|
| Certificates | |
| Certification |
|
| Protocols | |
| Management protocols |
|
| Packaging content | |
| Quantity per pack |
|
| Features | |
| Maximum data transfer rate |
|
| Transmitting power |
|
| Frequency band |
|
| Number of users |
|
| Networking standards |
|
| Throughput data rate |
|
| Wi-Fi data rate (max) |
|
| MIMO type |
|
| Virtual LAN features |
|
| Ethernet LAN data rates |
|
| Design | |
| Placement |
|
| LED indicators |
|
| Product color |
|
| Ports & interfaces | |
| WAN connection |
|
| Security | |
| Security algorithms |
|
