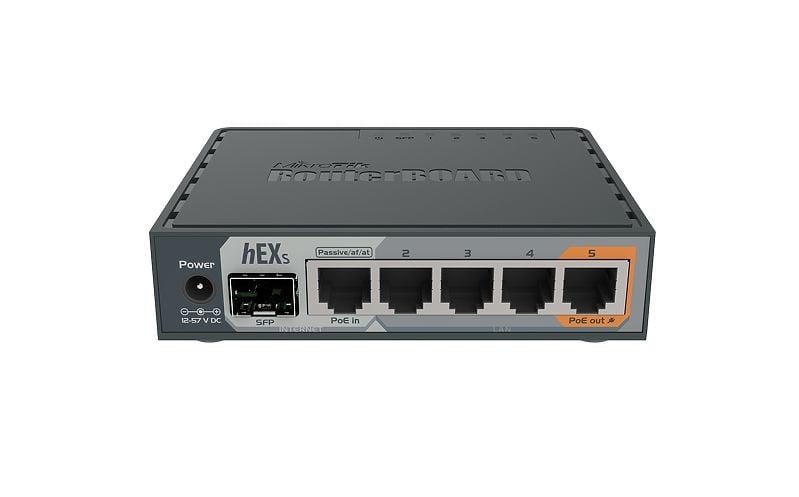

MikroTik hEX S Ethernet Router
5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec Hardware Encryption Support and The Dude Server Package
hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
Powering
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage: 12-57 V
- Max power consumption: 24 W
- Max power consumption without attachments: 6 W
- FAN count: Passive
- PoE in: 802.3af/at
- PoE in input Voltage: 12-57 V
PoE-out
- PoE-out ports: Ether5
- PoE out: Passive PoE up to 57V
- Max out per port output (input 18-30 V): 500 mA
- Max out per port output (input 30-57 V): 500 mA
- Max total out (A): 500 mA
Ethernet
- 10/100/1000 Ethernet ports: 5
Fiber
- SFP ports: 1
Peripherals
- Memory card type: microSD
- Memory Cards: 1
- Number of USB ports: 1
- USB Power Reset: Yes
- USB slot type: USB type A
- Max USB current (A): 1
Other
- PCB Temperature Monitor: Yes
- Voltage Monitor: Yes
- Mode Button: Yes
Certification & Approvals
- Certification: CE, EAC, ROHS
- IP: IP20
| Basic data | |
| Item name | MikroTik hEX S 5x Gigabit Ethernet Router (RB760IGS) |
| Product symbol | RB760IGS |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 30 x 110 x 160 mm |
| Weight gross | 0.30 kg |
| Logistics data | |
| Harmonized System (HS) code |
|
| Weight & dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Antenna | |
| Antenna type |
|
| Power | |
| Power consumption (typical) |
|
| Power source type |
|
| Features | |
| Internal memory |
|
| Design | |
| Product color |
|
| Network | |
| Ethernet interface type |
|
| Cabling technology |
|
| Ethernet LAN data rates |
|
