Ubiquiti Networks ES-16-XG - Managed - 10G Ethernet (100/1000/10000) - Rack mounting - 1U (ES-16-XG)

Write a review

€692.20

Vendor: Security Supplier Sales

Return period: 28 days

CODE: ES-16-XG

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

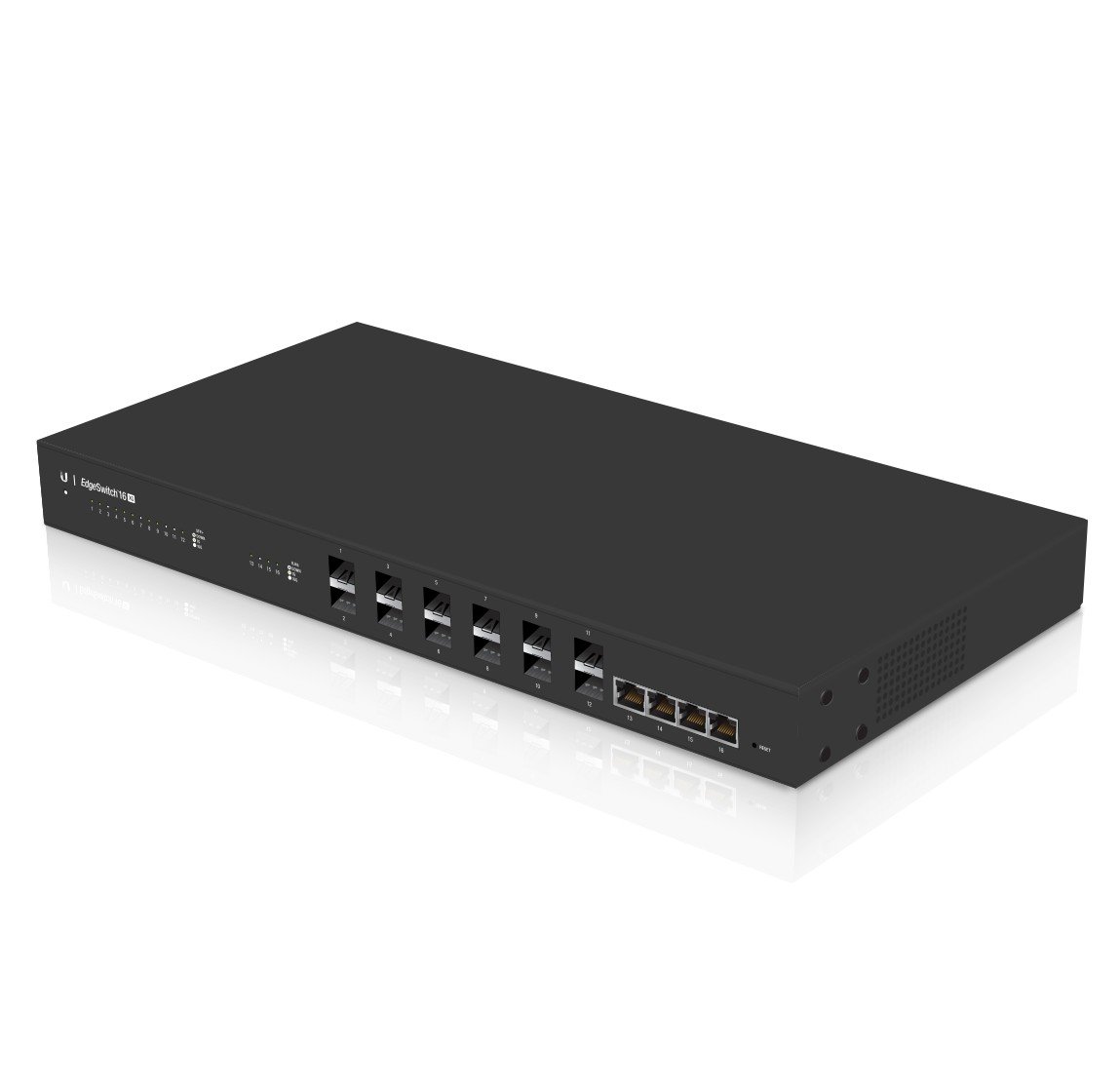

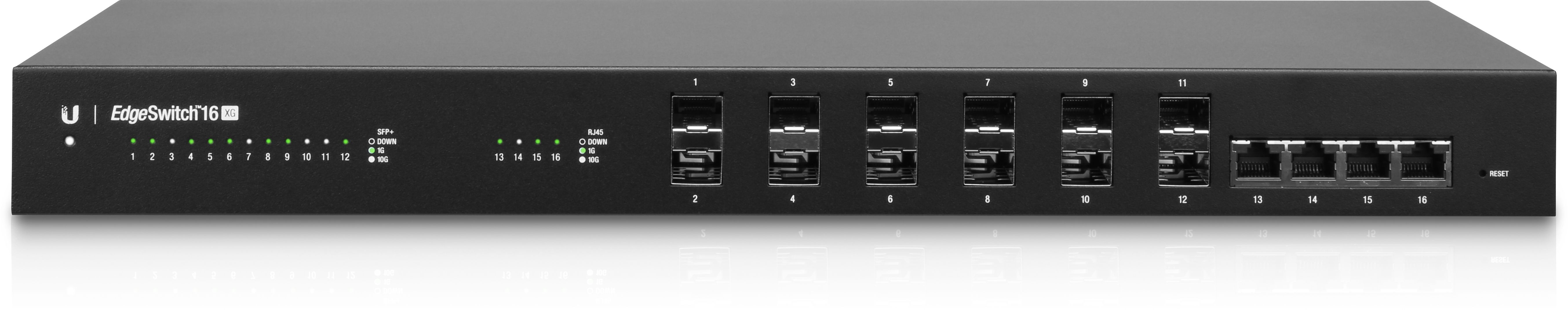

Ubiquiti Networks ES-16-XG - Managed - 10G Ethernet (100/1000/10000) - Rack mounting - 1U

Ubiquiti Edge Switch 16-XG – advanced switching technology

High capacity ES-16-XG switch is equipped with 16 10G ports (12 SFP+ and 4 RJ45). It is distinguished by high throughput which is perfect for expanding networks.

The ES-16-XG switch allows for the forwarding of traffic at each port without packet loss. It supports up to 160 Gbps.

Advanced solutions

The Edge Switch works based on an advanced operating system which provides advanced switching functions, such as VLAN tagging or link aggregation as well as Layer-3 features (static routing and DHCP). It can be used at temperatures ranging up to 40 degrees Celsius.

Key features

12 SFP ports
4 RJ45 ports
320 Gbps switching capacity
durable construction
reliability
443 x 221 x 43 mm size

Basic data
Item name	Ubiquiti Networks ES-16-XG - Managed - 10G Ethernet (100/1000/10000) - Rack mounting - 1U (ES-16-XG)
Product symbol	ES-16-XG
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	Ubiquiti
Package sizes (HxWxL)	545 x 265 x 75 mm
Weight gross	3.40 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	43.00 millimeter
Width	443.00 millimeter
Depth	221.00 millimeter
Weight	2710.00 gram
Power
Input voltage	16 - 25 V
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	36.00 W
Data transmission
Throughput	238.1 Mpps
Switching capacity	320.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	CE, FCC, IC
Design
Form factor	1U
Housing material	Steel
LED indicators	Activity, Link, Speed
Product color	Black
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ac IEEE 802.3ad IEEE 802.3ak IEEE 802.3an IEEE 802.3x
Virtual LAN features	Port-based VLAN Tagged VLAN
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-T, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Console port	RJ-45
Power connector	DC-in jack
Security
DHCP features	DHCP server
Security algorithms	SNMP SSH SSL/TLS
Authentication	Port-based authentication
Management features
Switch layer	L2/L3
Switch type	Managed
