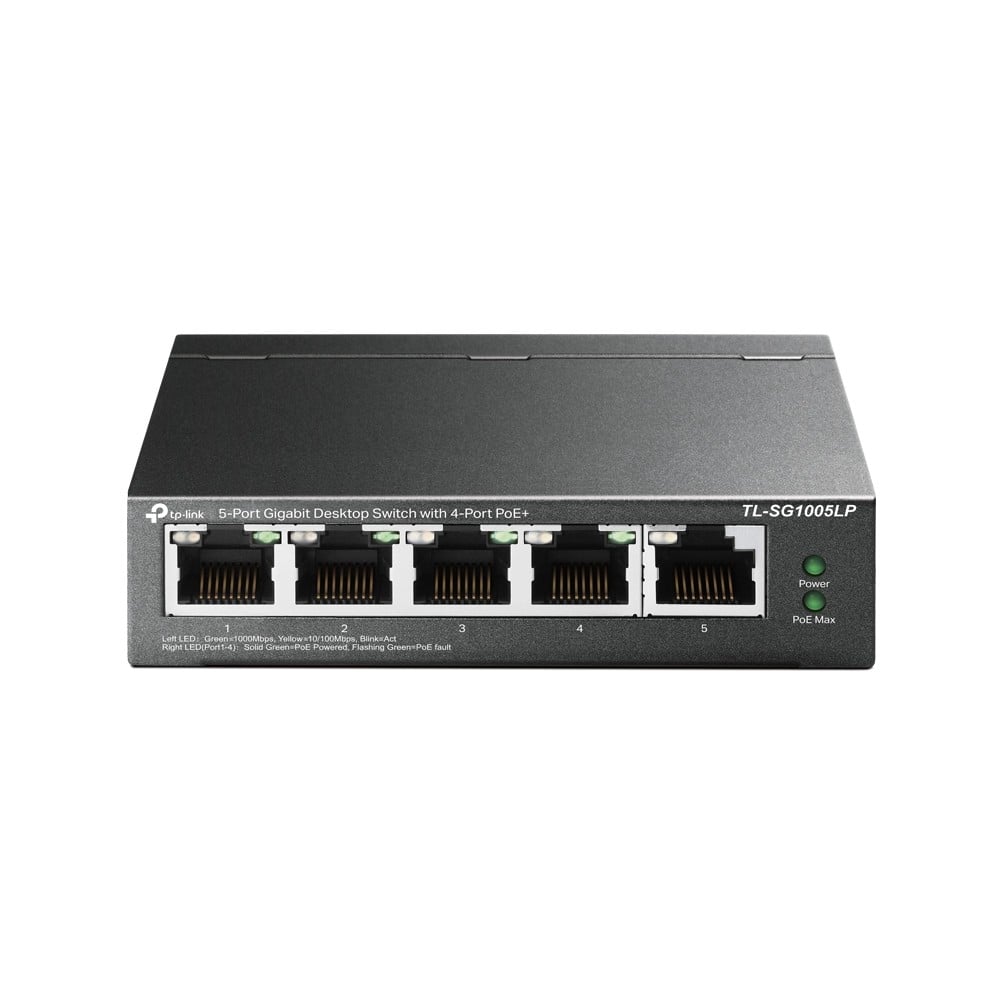

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+

Write a review

€40.81

Vendor: Security Supplier Sales

Return period: 28 days

CODE: TL-SG1005LP

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

The TP-Link TL-SG1005LP is an advanced unmanaged switch designed to enhance your networking experience with high-speed connections. Featuring five RJ-45 Ethernet ports that support Gigabit Ethernet (10/100/1000), this switch is versatile enough to meet a wide range of networking needs. With a robust MAC address table capable of holding up to 2000 entries and a switching capacity of 10 Gbit/s, the TL-SG1005LP ensures efficient handling of network traffic, making it an ideal choice for both home and office environments.

One of the standout features of the TP-Link TL-SG1005LP is its Power over Ethernet (PoE) capabilities on four of its ports. This innovative technology simplifies the deployment of network devices such as IP cameras and wireless access points by eliminating the need for additional power cables, thereby streamlining your setup. The switch adheres to multiple networking standards, including IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x, enhancing its compatibility and performance across diverse networking environments.

Designed with flexibility in mind, the TP-Link TL-SG1005LP is wall mountable, allowing for optimized space utilization in your setup. Operating with a DC input voltage of 53.5 V, this switch is a reliable solution for users looking to expand their network while maintaining simplicity and functionality. With its combination of performance, ease of use, and advanced features, the TL-SG1005LP stands out as a robust choice for anyone seeking to enhance their networking capabilities.

Basic data
Item name	TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+
Product symbol	TL-SG1005LP
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	TP-LINK
Package sizes (HxWxL)	200 x 120 x 140 mm
Weight gross	0.70 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	25.00 millimeter
Width	99.80 millimeter
Depth	98.00 millimeter
Power
Power source	DC/PoE
Input current	0.81 A
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
DC input voltage	53.5 V
Power consumption (max)	47.50 W
Data transmission
Switching capacity	10.00 Gb/s
MAC address table	2000 entries
Forwarding rate	7.44 Mpps
Certificates
Certification	FCC, CE, RoHS
icecat_automatic_48024_76	CE Federal Communications Commission (FCC) RoHS
Sustainability
Sustainability certificates	CE
Operational conditions
Heat dissipation	161.98
Packaging data
Package depth	196.00 millimeter
Package height	121.00 millimeter
Package width	131.00 millimeter
Package type	Box
Package weight	730.00 gram
Design
LED indicators	Yes
Product color	Black
Network
Networking standards	IEEE 802.1p IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3i IEEE 802.3u IEEE 802.3x
Cable types supported	Cat3 Cat4 Cat5 Cat5e Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Performance
Maximum cable length	100.00 meter
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	40.00 W
Management features
Switch layer	L2
Switch type	Unmanaged
