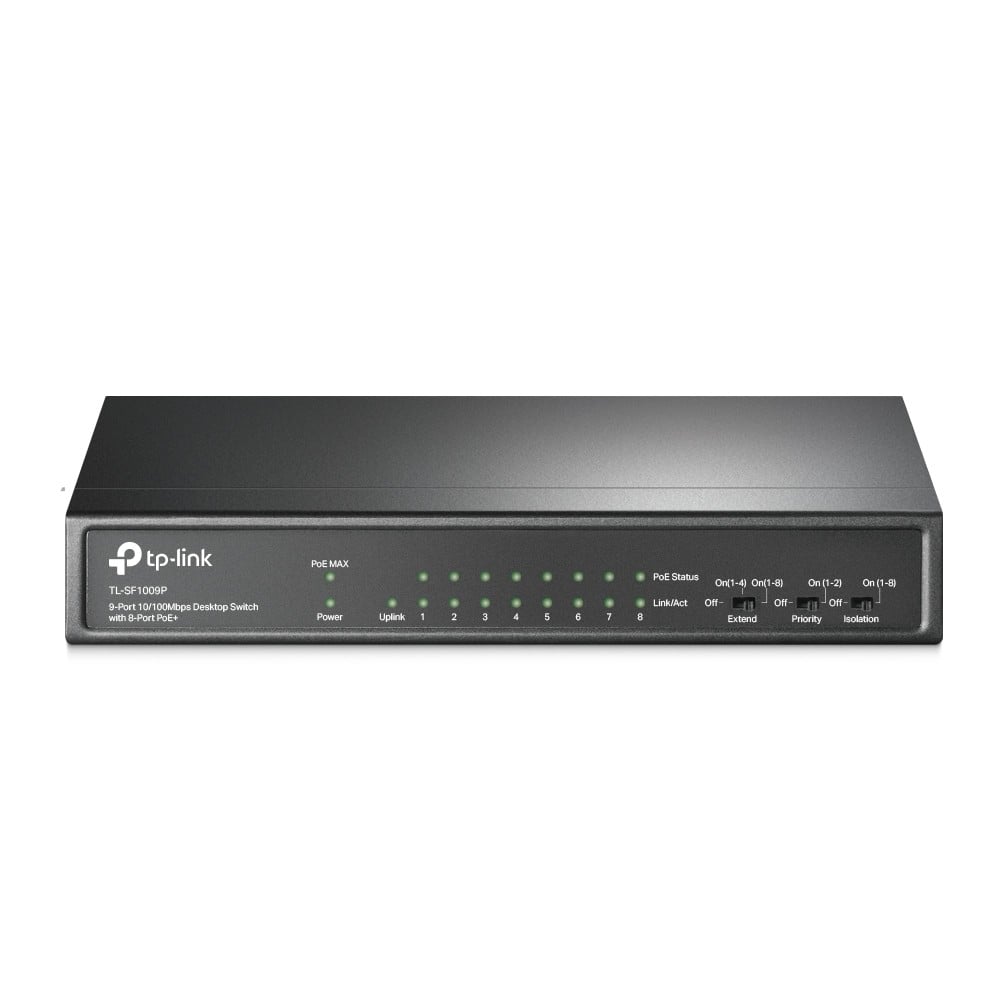

TP-Link TL-SF1009P 9-Port 10/100 Mbps Desktop Switch with 8-Port PoE+

Write a review

€48.69

Vendor: Security Supplier Sales

Return period: 28 days

CODE: TL-SF1009P

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

The TP-LINK TL-SF1009P is a high-performance 9-Port 10/100Mbps Desktop Switch designed to enhance your network connectivity. This unmanaged switch features nine RJ-45 Ethernet ports that support Fast Ethernet (10/100) speeds, making it an ideal choice for small to medium-sized networks. Notably, eight of these ports are equipped with Power over Ethernet (PoE+) capabilities, allowing you to deliver both data and electrical power to PoE-enabled devices such as IP cameras and VoIP phones through a single cable, streamlining installations in areas with limited power outlets.

With a robust switching capacity of 1.6 Gbit/s and a MAC address table that accommodates up to 2000 entries, the TL-SF1009P ensures efficient traffic management without bottlenecks. This model supports full duplex communication, enabling simultaneous data transmission and reception, which significantly enhances overall network performance. It adheres to several important networking standards, including IEEE 802.3af, IEEE 802.3at, and IEEE 802.3x, ensuring compatibility with a wide range of network devices.

Designed for flexibility, the TP-LINK TL-SF1009P is wall mountable, allowing for optimal space utilization and improved cable management in your networking setup. It operates with a DC input voltage of 53.5 V and includes a DC-in jack for easy power connectivity. This switch is an excellent choice for those looking to expand their network capabilities while maintaining a clean and organized environment, making it a standout option in its class.

Basic data
Item name	TP-Link TL-SF1009P 9-Port 10/100 Mbps Desktop Switch with 8-Port PoE+
Product symbol	TL-SF1009P
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	TP-LINK
Package sizes (HxWxL)	230 x 80 x 290 mm
Weight gross	1 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	27.00 millimeter
Width	171.00 millimeter
Depth	98.00 millimeter
Power
Power source	DC/PoE
Input voltage	53.5 V
Input current	1.31 A
AC input frequency	50 Hz
AC input voltage	220 V
DC input voltage	53.5 V
Power consumption (max)	77.08 W
Data transmission
Switching capacity	1.60 Gb/s
MAC address table	2000 entries
Forwarding rate	1.3392 Mpps
Certificates
Certification	FCC, CE, RoHS
icecat_automatic_48024_76	CE Federal Communications Commission (FCC) RoHS
Sustainability
Sustainability certificates	CE
Operational conditions
Heat dissipation	262.84
Packaging data
Package depth	280.00 millimeter
Package height	68.00 millimeter
Package width	223.00 millimeter
Package type	Box
Package weight	980.00 gram
Design
Housing material	Metal
LED indicators	Activity, Link, PoE, Power
Product color	Black
Network
Networking standards	IEEE 802.3af IEEE 802.3at IEEE 802.3i IEEE 802.3u IEEE 802.3x
Cable types supported	Cat3 Cat4 Cat5 Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	DC-in jack
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	65.00 W
Power over Ethernet (PoE) power per port	30.00 W
Management features
Switch layer	L2
Switch type	Unmanaged

Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
