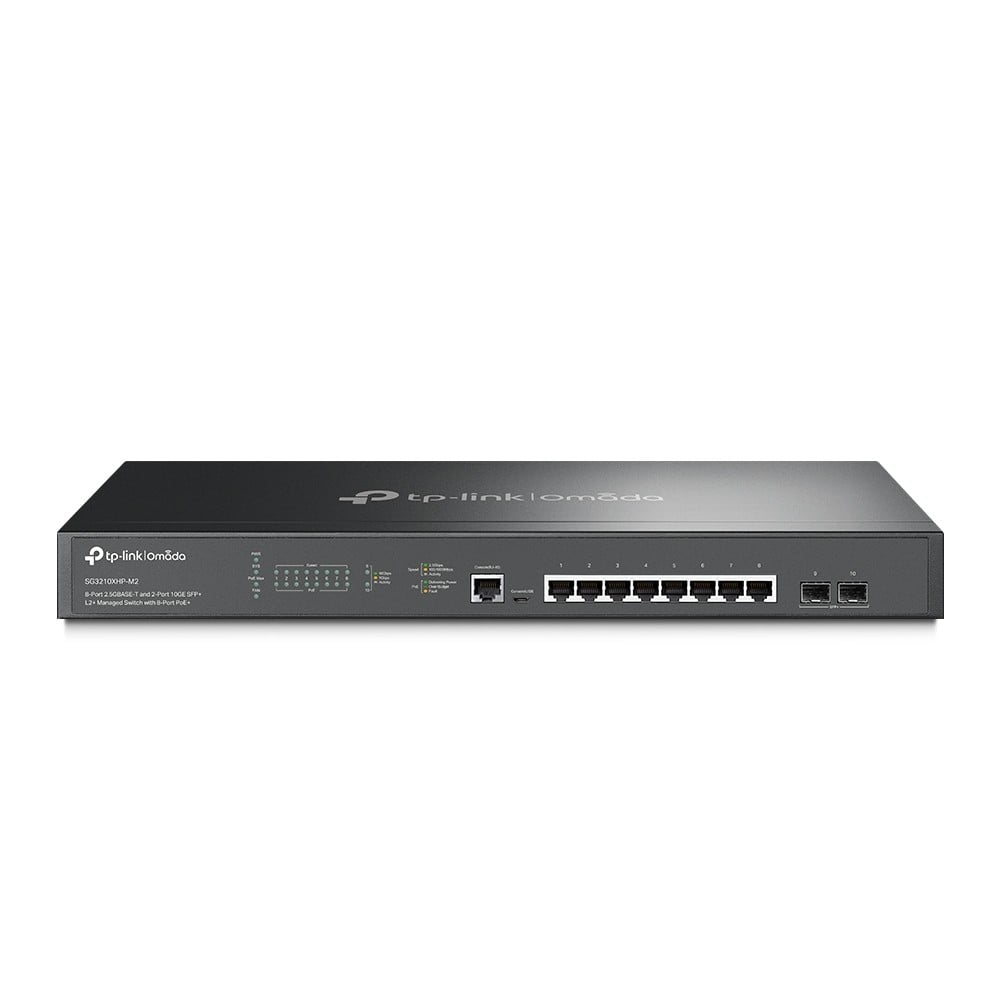

TP-Link SG3210XHP-M2 (TL-SG3210XHP-M2) JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Mana...

Write a review
527.64
28 days
SG3210XHP-M2
IN STOCK
+

The TP-Link JetStream 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch (model SG3210XHP-M2) is engineered for high-speed networking, making it an ideal choice for modern business environments. This managed switch features eight 2.5G Ethernet ports that support speeds of 100/1000/2500 Mbps, along with two 10G SFP+ ports. With a robust switching capacity of 80 Gbit/s, it ensures efficient handling of large data transfers, providing a significant advantage over standard switches in terms of performance and reliability.


Designed with advanced network management capabilities, the SG3210XHP-M2 boasts a MAC address table that can store up to 16,000 entries, facilitating smooth network management and enhanced security. It complies with multiple networking standards, including IEEE 802.1d, IEEE 802.1s, and IEEE 802.1w, which contribute to its functionality and reliability across various network setups. The inclusion of both an RJ-45 and a Micro-USB console port simplifies management, making it accessible for network administrators.


One of the standout features of this switch is its Power over Ethernet (PoE) capability, allowing it to power PoE-compatible devices such as IP cameras and wireless access points directly through network cables. This reduces the need for additional power supplies, streamlining installation and reducing clutter. The SG3210XHP-M2 is designed for rack mounting and fits in a standard 1U rack space, making it suitable for installation in server rooms and data centers. The secure AC-in jack power connector ensures a reliable power supply connection, further enhancing its suitability for demanding networking environments.




Basic data
Item nameTP-Link SG3210XHP-M2 (TL-SG3210XHP-M2) JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
Product symbolSG3210XHP-M2
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • TP-LINK
Package sizes (HxWxL)44 x 440 x 180 mm
Weight gross3.10 kg
Weight & dimensions
Height
  • 44.00 millimeter
Width
  • 440.00 millimeter
Depth
  • 180.00 millimeter
Power
Power source
  • AC
AC input frequency
  • 50/60 Hz
AC input voltage
  • 100 - 240 V
Power consumption (max)
  • 285.90 W
Data transmission
Packet buffer memory
  • 12.00 MB
Switching capacity
  • 80.00 Gb/s
MAC address table
  • 16000 entries
Forwarding rate
  • 59.52 Mpps
Certificates
Certification
  • CE, FCC, RoHS
Protocols
Management protocols
  • SNMPv1/v2c/v3, SNTP
Packaging content
Cables included
  • AC
Operational conditions
Heat dissipation
  • 975.54
Packaging data
Package type
  • Box
Design
Number of fans
  • 2 fan(s)
Form factor
  • 1U
LED indicators
  • Yes
Product color
  • Black
Network
Networking standards
  • IEEE 802.1D
  • IEEE 802.1s
  • IEEE 802.1w
Virtual LAN features
  • MAC address-based VLAN
  • Port-based VLAN
  • Private VLAN
  • Protocol-based VLAN
  • Tagged VLAN
  • Voice VLAN
Ethernet LAN data rates
  • 100,1000,2500 Mbit/s
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • 2.5G Ethernet (100/1000/2500)
Console port
  • RJ-45/Micro-USB
Power connector
  • AC-in jack
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
  • 240.00 W
Power over Ethernet (PoE) power per port
  • 30.00 W
Multicast features
Multicast Listener Discovery (MLD) snooping
  • Y
Security
Authentication type
  • aaa
  • tacacs_
Queue scheduling algorithms
  • SP
  • WRR+SP
  • Weighted Round Robin (WRR)
DHCP features
  • DHCP client
  • DHCP relay
  • DHCP server
  • DHCP snooping
  • DHCPv6 client
  • DHCPv6 snooping
Security algorithms
  • HTTPS
  • SSH
  • SSH-2
  • SSL/TLS
Authentication
  • MAC-based authentication, Port-based authentication
Management features
MIB support
  • RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Switch layer
  • L2+
Switch type
  • Managed
