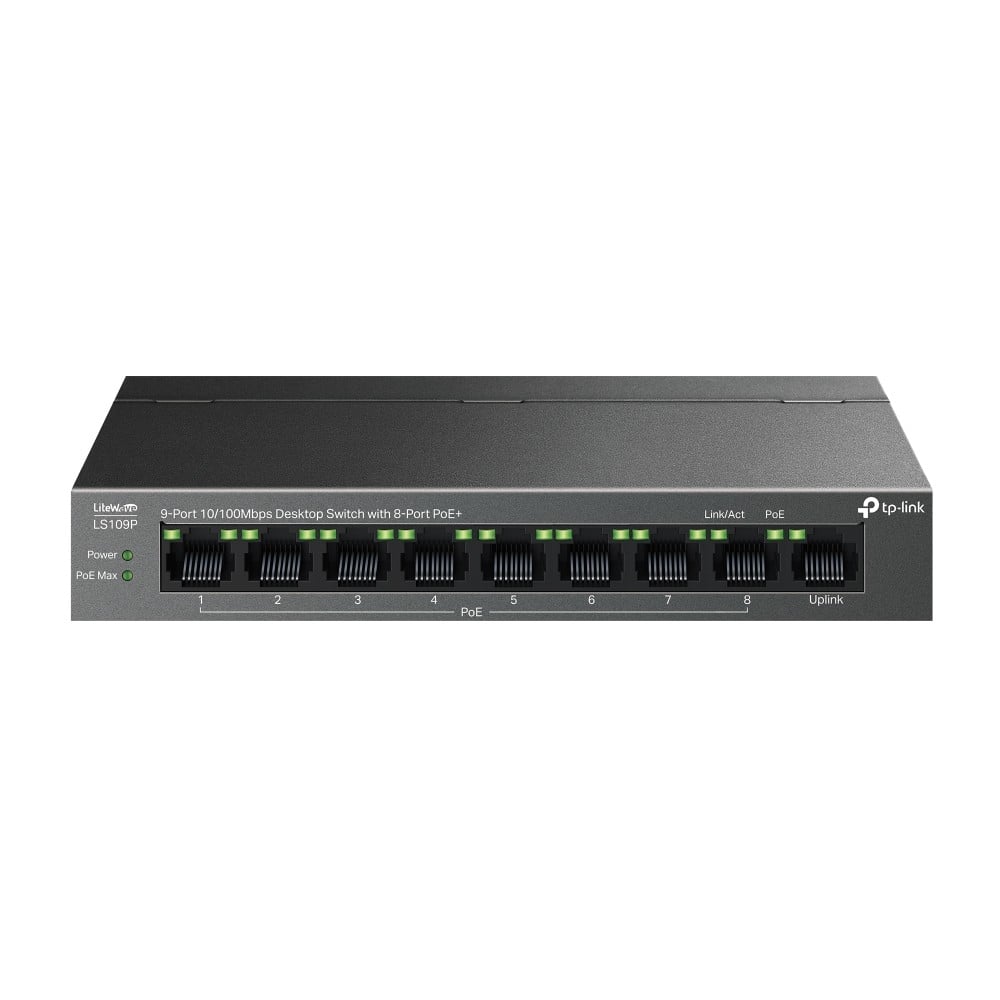

TP-Link LS109P 9-Port 10/100 Mbps Desktop Switch with 8-Port PoE+

Write a review

€32.41

Vendor: Security Supplier Sales

Return period: 28 days

CODE: LS109P

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

Enhance your network capabilities with the TP-LINK LS109P, a 9-port 10/100 Mbps desktop switch designed to meet the demands of modern networking. This device features nine ports, with eight supporting Power over Ethernet Plus (PoE+) technology, allowing you to power devices such as IP cameras, VoIP phones, and wireless access points directly through the network cables. This innovative feature eliminates the need for additional power supplies, streamlining your setup and reducing clutter.

Each PoE+ port on the LS109P can provide up to 30 watts of power, with a total power budget of 65 watts across all PoE+ ports. Operating at speeds of up to 100 Mbps, this switch is designed for quick and easy setup without the need for software installation. Its compact design allows for versatile placement options, whether on a desktop or mounted on a wall, making it suitable for various installation environments.

The TP-LINK LS109P also supports Auto-MDI/MDIX, eliminating the need for crossover cables and simplifying your network configuration. Housed in a robust metal casing, this switch ensures durability and reliability for long-term use. With its efficient solution for expanding your network while providing power to PoE-enabled devices, the LS109P is a valuable addition to small office and home networks, offering a significant advantage over competitors with its comprehensive PoE+ support.

Basic data
Item name	TP-Link LS109P 9-Port 10/100 Mbps Desktop Switch with 8-Port PoE+
Product symbol	LS109P
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	TP-LINK
Package sizes (HxWxL)	27 x 171 x 98 mm
Weight & dimensions
Height	27.00 millimeter
Width	171.00 millimeter
Depth	98.00 millimeter
Power
Power source	DC/PoE
Input current	1.31 A
AC input frequency	50 Hz
AC input voltage	220 V
DC input voltage	53.5 V
Power consumption (max)	73.24 W
Data transmission
Switching capacity	1.80 Gb/s
MAC address table	2000 entries
Forwarding rate	1.3392 Mpps
Certificates
Certification	CE, FCC, RoHS
Operational conditions
Heat dissipation	249.00
Packaging data
Package type	Box
Design
Number of fans	0 fan(s)
LED indicators	Yes
Product color	Black
Network
Networking standards	IEEE 802.3af IEEE 802.3at IEEE 802.3i IEEE 802.3u IEEE 802.3x
Cable types supported	Cat3 Cat4 Cat5 Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30.00 W
Management features
Switch layer	L2
Switch type	Unmanaged
