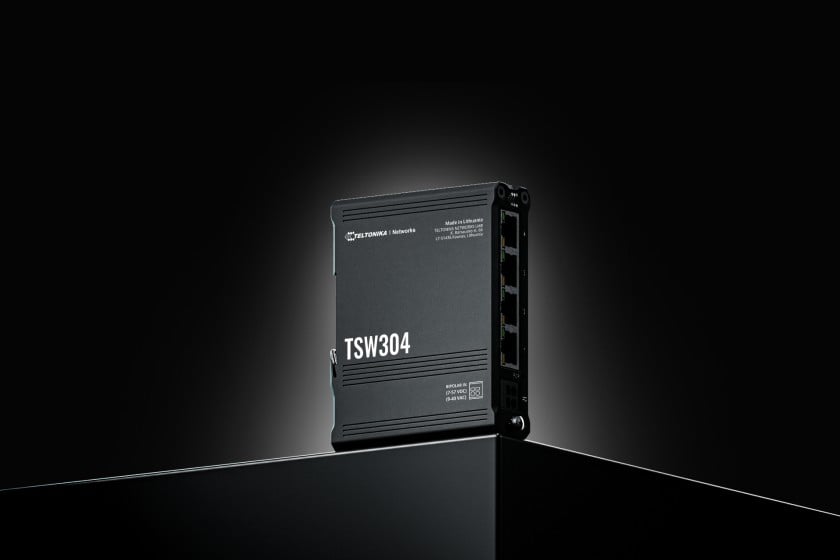

Teltonika TSW304 Gigabit Switch with DIN Rail

Write a review

€81.14

Vendor: Security Supplier Sales

Return period: 28 days

CODE: TSW304000000

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

The tsw304000000 is equipped with four basic switching RJ-45 Ethernet ports, supporting Gigabit Ethernet (10/100/1000) for high-speed connectivity and efficient network setups. It features a MAC address table capable of holding up to 2000 entries and boasts a switching capacity of 8 Gbit/s, ensuring smooth data transmission and handling of traffic on busy networks. This device adheres to multiple networking standards, including IEEE 802.3, IEEE 802.3az, and IEEE 802.3u, which enhances its compatibility and energy efficiency. It supports a DC input voltage range from 7 to 57 V and includes Power over Ethernet (PoE) capabilities, allowing both power and data to be carried over a single Ethernet cable, reducing cabling requirements and simplifying installations. Designed with durability in mind, the unit is housed in a shock-resistant casing, making it suitable for challenging industrial environments. It also features an integrated DIN rail mounting option and additional surface mounting choices, providing flexibility in installation. The compact dimensions of 102 x 25 x 81.5 mm allow it to be easily integrated into any server cabinet or setup.

Basic data
Item name	Teltonika TSW304 Gigabit Switch with DIN Rail
Product symbol	TSW304000000
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	Teltonika
Package sizes (HxWxL)	150 x 40 x 180 mm
Weight gross	0.20 kg
Weight & dimensions
Height	25.00 millimeter
Width	102.00 millimeter
Depth	81.50 millimeter
Weight	210.00 gram
Power
Power source	AC/DC
Input voltage	9 - 40 V
Power consumption (typical)	0.26 W
DC input voltage	7 - 57 V
Power consumption (max)	1.44 W
Data transmission
Packet buffer memory	0.13 MB
Switching capacity	8.00 Gb/s
MAC address table	2000 entries
Certificates
Certification	CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
Design
International Protection (IP) code	IP30
Housing material	Aluminum
LED indicators	Power, Status
Product color	Black
Network
Networking standards	IEEE 802.3 IEEE 802.3az IEEE 802.3u
Ethernet LAN data rates	10,100,1000 Mbit/s
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported	Passive PoE
Management features
Switch layer	L2
Switch type	Unmanaged
