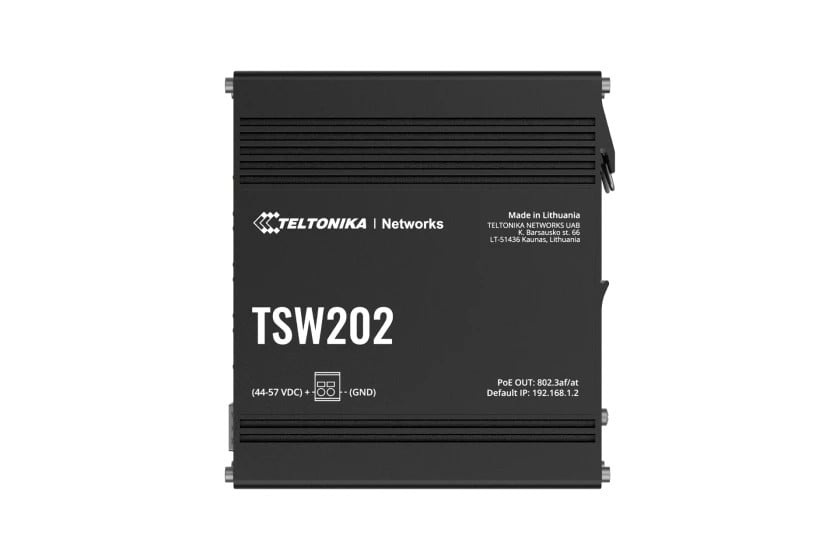

The switch is a managed L2 device equipped with eight Gigabit Ethernet (10/100/1000) RJ-45 ports and two installed SFP modules, supporting full duplex communication. It features a MAC address table capable of holding 8000 entries and boasts a switching capacity of 20 Gbit/s. Adhering to networking standards such as IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3z, this switch is designed to handle robust industrial demands. It includes a terminal block (3-pin) power connector and supports Power over Ethernet (PoE) with a maximum of 30 W power per port and a total of 240 W. The PoE management functionality allows for precise control over power distribution, enabling activation or deactivation of PoE on selected ports. The device also offers VLAN support and advanced software features like Quality of Service (QoS), which aids in bandwidth management by classifying and prioritizing network traffic. Built for challenging environments, it comes with an integrated DIN rail bracket, a rugged aluminum housing, and is built to withstand extreme temperatures and vibrations, ensuring durability and ease of installation.
| Basic data | |
| Item name | Teltonika TSW202 Managed PoE+ Switch |
| Product symbol | TSW202000000 |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 50 x 140 x 140 mm |
| Weight gross | 0.70 kg |
| Weight & dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Weight |
|
| Power | |
| Power source |
|
| Data transmission | |
| Switching capacity |
|
| MAC address table |
|
| Design | |
| International Protection (IP) code |
|
| Housing material |
|
| LED indicators |
|
| Product color |
|
| Network | |
| Networking standards |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type |
|
| Power connector |
|
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget |
|
| Power over Ethernet (PoE) power per port |
|
| Power over Ethernet (PoE) type supported |
|
| Security | |
| DHCP features |
|
| Management features | |
| Switch layer |
|
| Switch type |
|
