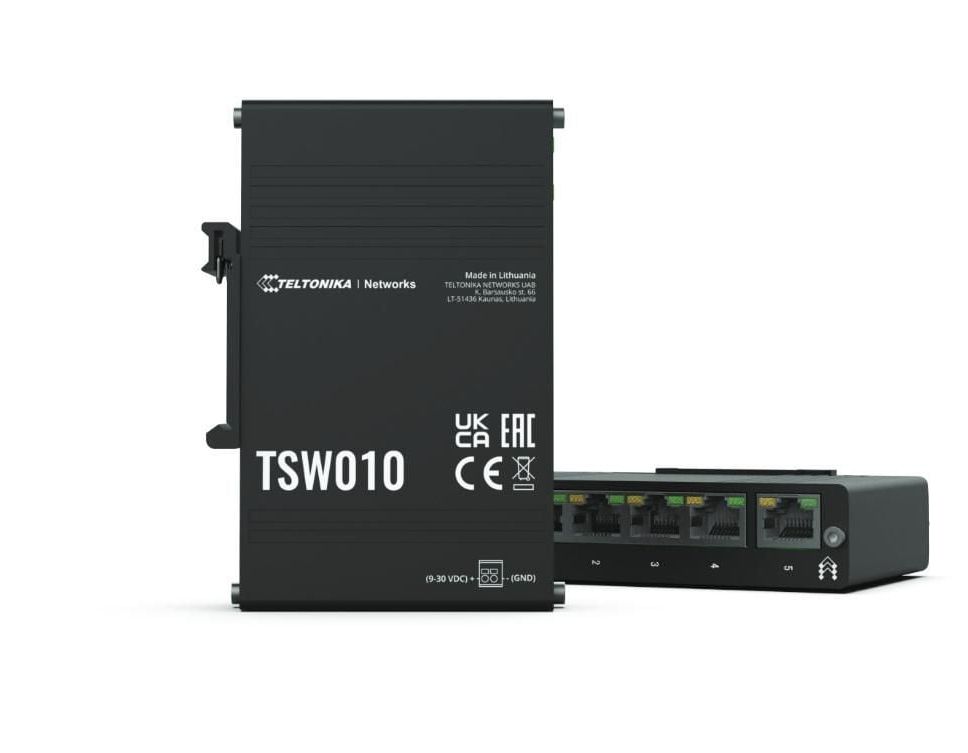

The Teltonika TSW010 DIN Rain Switch is equipped with five basic switching RJ-45 Ethernet ports that support Fast Ethernet (10/100 Mbps), making it suitable for various industrial applications. It features a MAC address table capable of holding 2000 entries and boasts a switching capacity of 1 Gbit/s. Adhering to networking standards IEEE 802.3, IEEE 802.3az, and IEEE 802.3u, this switch ensures compliance with current technological protocols. The unit is powered through a DC-in jack and does not support Power over Ethernet (PoE). Its robust design includes a DIN rail bracket for easy installation, promoting a streamlined setup process without the need for additional mounting equipment. The compact and durable construction of the switch is ideal for environments that experience vibrations and varying temperatures, typical in industrial settings. This switch is an effective solution for enhancing network connectivity and communication within automated and machine-to-machine (M2M) operations.

Basic data
Item name	Teltonika TSW010 Din Rail Switch
Product symbol	TSW010000000
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	Teltonika
Package sizes (HxWxL)	150 x 35 x 180 mm
Weight gross	0.22 kg
Weight & dimensions
Height	27.40 millimeter
Width	113.10 millimeter
Depth	80.50 millimeter
Weight	146.50 gram
Power
Power source	DC/PoE
Input voltage	9 - 30 V
Power consumption (typical)	0.30 W
Power consumption (max)	0.90 W
Data transmission
Packet buffer memory	0.13 MB
Switching capacity	1.00 Gb/s
MAC address table	2000 entries
Certificates
Certification	CE, REACH, RoHS, WEEE UKCA, FCC, IC, CB, RCM
Design
International Protection (IP) code	IP30
Housing material	Aluminum
LED indicators	Yes
Product color	Black
Network
Networking standards	IEEE 802.3 IEEE 802.3az IEEE 802.3u
Ethernet LAN data rates	10,100 Mbit/s
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported	Passive PoE
Management features
Switch layer	L2
Switch type	Unmanaged
