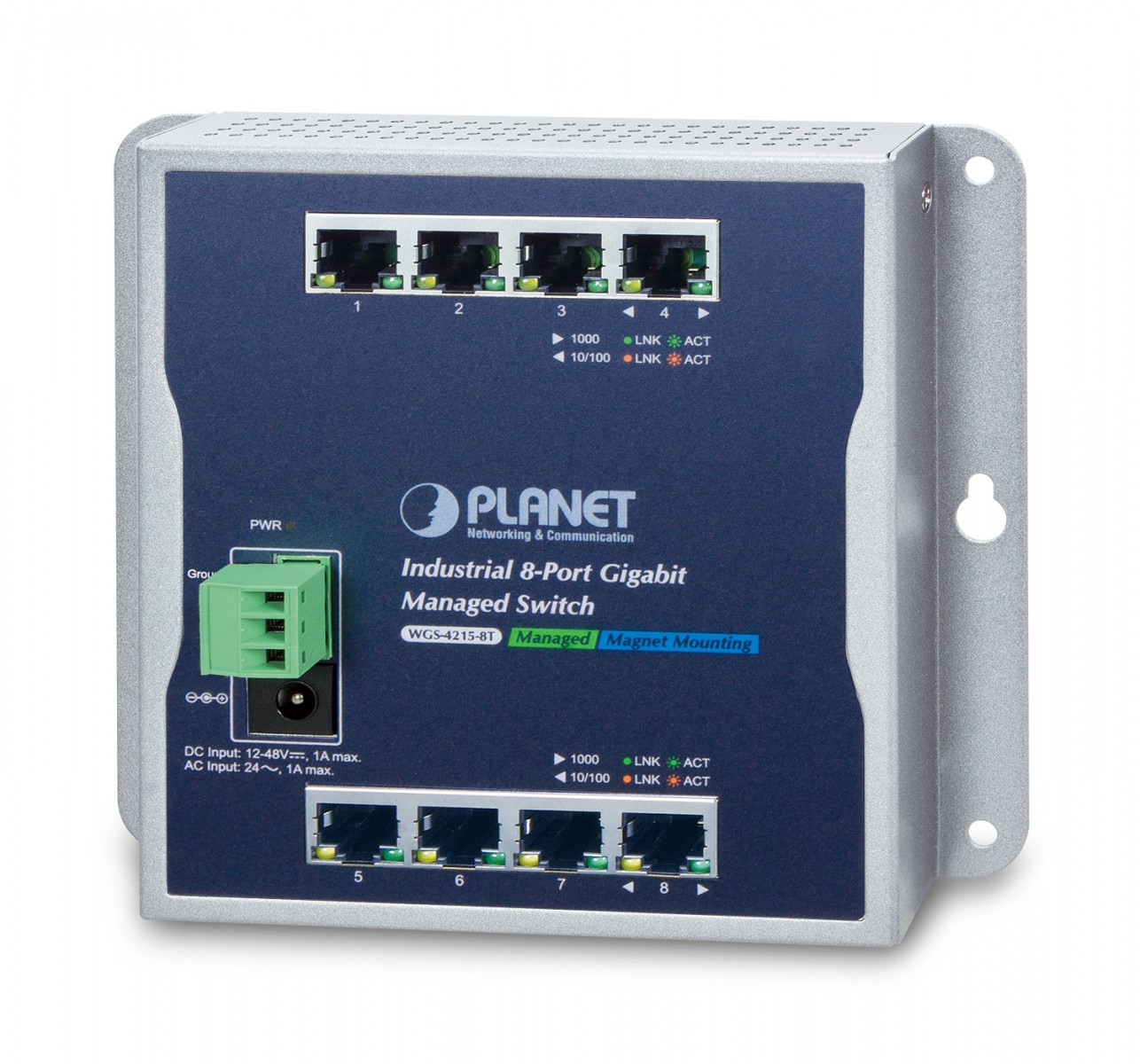

Planet WGS-4215-8T IP30, IPv6/IPv4, 8-Port 1000TP Wall-mount Managed Ethernet Switch (-40 to 75 ...

Write a review

€189.25

Vendor: Security Supplier Sales

Return period: 28 days

CODE: WGS-4215-8T

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET WGS-4215-8T. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input voltage: 24 V. Power connector: DC-in jack. Wall mountable

Basic data
Item name	Planet WGS-4215-8T IP30, IPv6/IPv4, 8-Port 1000TP Wall-mount Managed Ethernet Switch (-40 to 75 C), dual redundant power input on 12-48VDC / 24VAC terminal blo
Product symbol	WGS-4215-8T
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	70 x 200 x 230 mm
Weight gross	0.70 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	134.00 millimeter
Width	148.00 millimeter
Depth	25.00 millimeter
Weight	496.00 gram
Power
Input current	1 A
Output current	1.00 A
Power consumption (typical)	7.00 W
DC input voltage	24 V
Data transmission
Packet buffer memory	4.10 MB
Throughput	11.9 Mpps
Switching capacity	16.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC 15 A, CE
Protocols
Management protocols	LLDP
Operational conditions
Heat dissipation	24.00
Design
Safety	IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6
International Protection (IP) code	IP30
Housing material	Metal
LED indicators	Activity, Link, Power
Product color	Black
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	Private VLAN Protocol-based VLAN Stacked VLAN Tagged VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Security
Security algorithms	128-bit SSL 802.1x RADIUS SNMP SSH
Authentication	Port-based authentication
Management features
MIB support	RFC 1213, RFC 1215, RFC 1493, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3635
Switch layer	L2
Switch type	Managed
