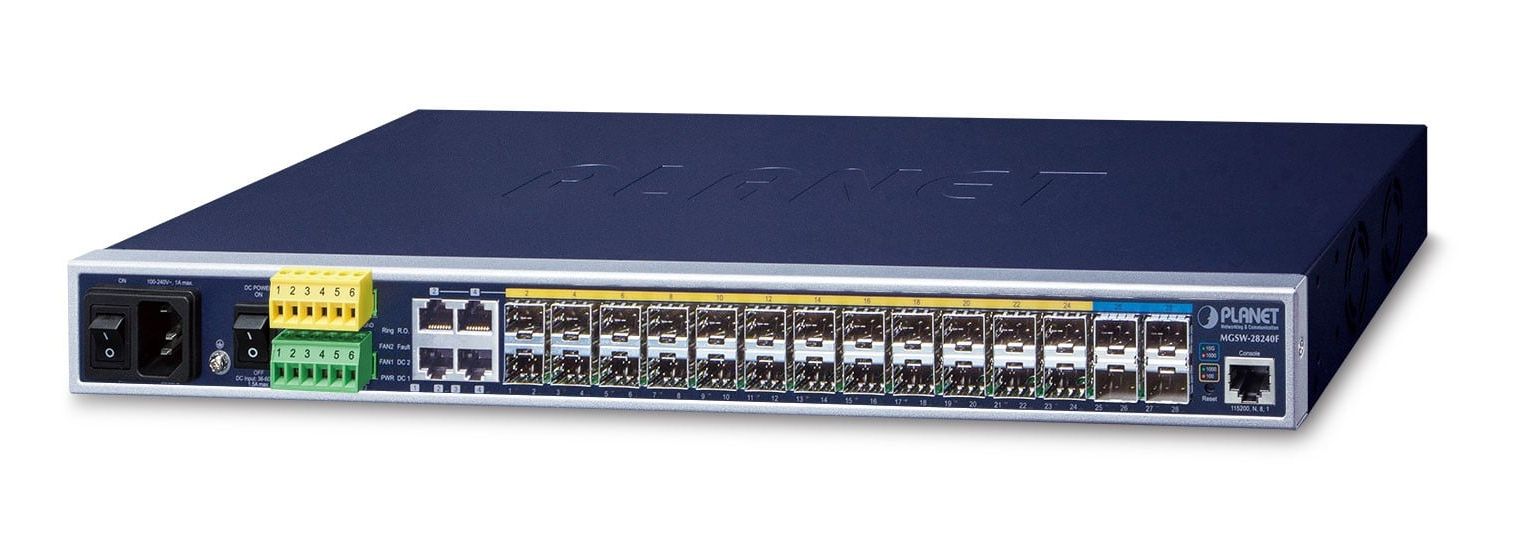

Planet MGSW-28240F L3 14100/1G SFP with 4 shared 10/100/1000T + 101G/2.5G SFP + 4*10G SFP+ Mana...

Write a review

€829.31

Vendor: Security Supplier Sales

Return period: 28 days

CODE: MGSW-28240F

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET MGSW-28240F. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RS-232. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting, Form factor: 1U

Basic data
Item name	Planet MGSW-28240F L3 14100/1G SFP with 4 shared 10/100/1000T + 101G/2.5G SFP + 4*10G SFP+ Managed Metro Ethernet Switch (AC+DC Power Redundant, 2xDI, 2xDO, C
Product symbol	MGSW-28240F
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	70 x 390 x 560 mm
Weight gross	3.70 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	44.50 millimeter
Width	440.00 millimeter
Depth	200.00 millimeter
Weight	2935.00 gram
Power
Output voltage	1.5 V
Power consumption (typical)	24.60 W
AC input frequency	50 - 60 Hz
AC input voltage	110 - 240 V
Power consumption (max)	57.00 W
Data transmission
Throughput	95.2 Mpps
Switching capacity	128.00 Gb/s
MAC address table	16000 entries
Certificates
Certification	FCC Part 15 Class A, CE
Protocols
Management protocols	SNMP
Design
Number of fans	2 fan(s)
Form factor	1U
LED indicators	Yes
Product color	Blue
Network
Networking standards	IEEE 802.11w IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1s IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	Port-based VLAN Protocol-based VLAN Tagged VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RS-232
Fiber optic connector	LC
Security
Security algorithms	SNMP SSH SSL/TLS
Optical fiber
Wavelength	1510.00 nm
Fiber type	Multi-mode
Fiber ethernet cabling technology	10GBASE-LR 10GBASE-SR
Transmission distance (max)	10.00 kilometer
Management features
MIB support	RFC-1213 MIB-II, IF-MIB, RFC-1493 Bridge MIB, RFC-1643 Ethernet MIB ,RFC-2863 Interface MIB RFC-2665 Ether-Like MIB, RFC-2819 RMON MIB (Group 1, 2), RFC-2737 Entity MIB, RFC-2618 RADIUS Client MIB, RFC3411 SNMP-Frameworks-MIB, IEEE 802.1X PAE, LLDP, MAU-M
Switch layer	L3
Switch type	Managed
