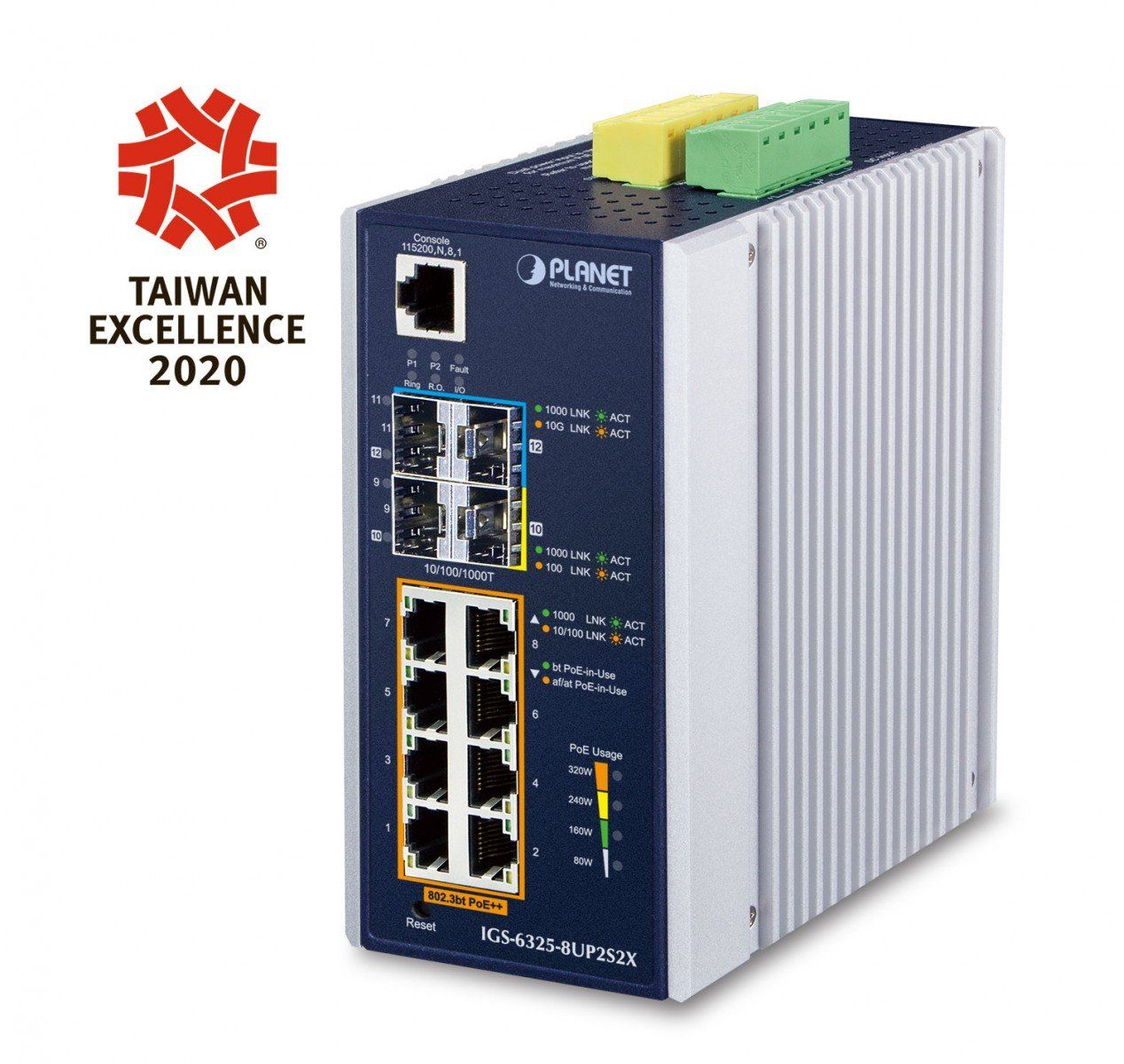

Planet IGS-6325-8UP2S2X IP30 DIN-rail Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-port 1G/2...

Write a review

€742.38

Vendor: Security Supplier Sales

Return period: 28 days

CODE: IGS-6325-8UP2S2X

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IP30 DIN-rail Industrial L3 8P. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2, Installed SFP+ modules quantity: 2, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Wall mountable

Basic data
Item name	Planet IGS-6325-8UP2S2X IP30 DIN-rail Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-port 1G/2.5G SFP + 2-Port 10G SFP+ Full Managed Switch (-40 to 75 C, 8-p
Product symbol	IGS-6325-8UP2S2X
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	110 x 180 x 240 mm
Weight gross	1.72 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	152.00 millimeter
Width	76.80 millimeter
Depth	107.30 millimeter
Weight	1152.00 gram
Data transmission
Packet buffer memory	32.00 MB
Throughput	44.64 Mpps
Switching capacity	60.00 Gb/s
MAC address table	16000 entries
Certificates
Certification	FCC Part 15 Class A CE: EN55032 EN55035 IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Design
International Protection (IP) code	IP30
Housing material	Aluminum
LED indicators	Yes
Product color	Aluminum, Blue
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1ag IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3af IEEE 802.3ah IEEE 802.3at IEEE 802.3bt IEEE 802.3u IEEE 802.3x IEEE 802.3z
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Security
DHCP features	DHCP Option 82 DHCP relay DHCP server DHCP snooping
Management features
Switch layer	L3
Switch type	Managed
