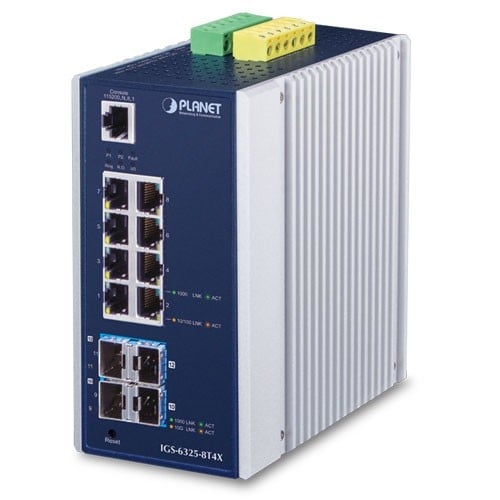

Planet IGS-6325-8T4X IP30 Industrial L3 8-Port 10/100/1000T + 4-Port 10G SFP+ Full Managed Switch...

Write a review

€701.96

Vendor: Security Supplier Sales

Return period: 28 days

CODE: IGS-6325-8T4X

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-6325-8T4X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 12 - 48 V. Wall mountable

Basic data
Item name	Planet IGS-6325-8T4X IP30 Industrial L3 8-Port 10/100/1000T + 4-Port 10G SFP+ Full Managed Switch (-40 to 75 C, dual redundant power input on 12~48VDC terminal
Product symbol	IGS-6325-8T4X
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	240 x 180 x 120 mm
Weight gross	1.60 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	152.00 millimeter
Width	76.00 millimeter
Depth	107.00 millimeter
Weight	1250.00 gram
Power
Input current	4/1.5 A
DC input voltage	12 - 48 V
Data transmission
Packet buffer memory	32.00 MB
Throughput	71.43 Mpps
Switching capacity	96.00 Gb/s
MAC address table	16000 entries
Certificates
Certification	FCC 15 A CE: EN55032 EN55035 EN 62368-1/IEC 62368-1: 2014
Design
International Protection (IP) code	IP30
Housing material	Aluminum
LED indicators	Yes
Product color	Blue, Gray
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1ag IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3ah IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	MAC address-based VLAN Private VLAN Protocol-based VLAN Voice VLAN
Performance
Flash memory	64.00 MB
Memory type	SDRAM
Internal memory	512.00 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Fiber optic connector	SFP+
Security
Security algorithms	SNMP SNMPv2 SNMPv3 SSH SSL/TLS
Management features
MIB support	RFC 1213 MIB-II, RFC 1493 MIB, RFC 1643, RFC 2863 Interface MIB, RFC 2665, RFC 2819 RMON (1, 2, 3. 9), RFC 2737 MIB, RFC 2618 RADIUS MIB, RFC 2863 IF-MIB, RFC 2933 IGMP-STD-MIB, RFC 3411 SNMP-MIB, RFC 4292 IP MIB, RFC 4293 IP MIB, RFC 4836 MA
Switch layer	L3
Switch type	Managed
