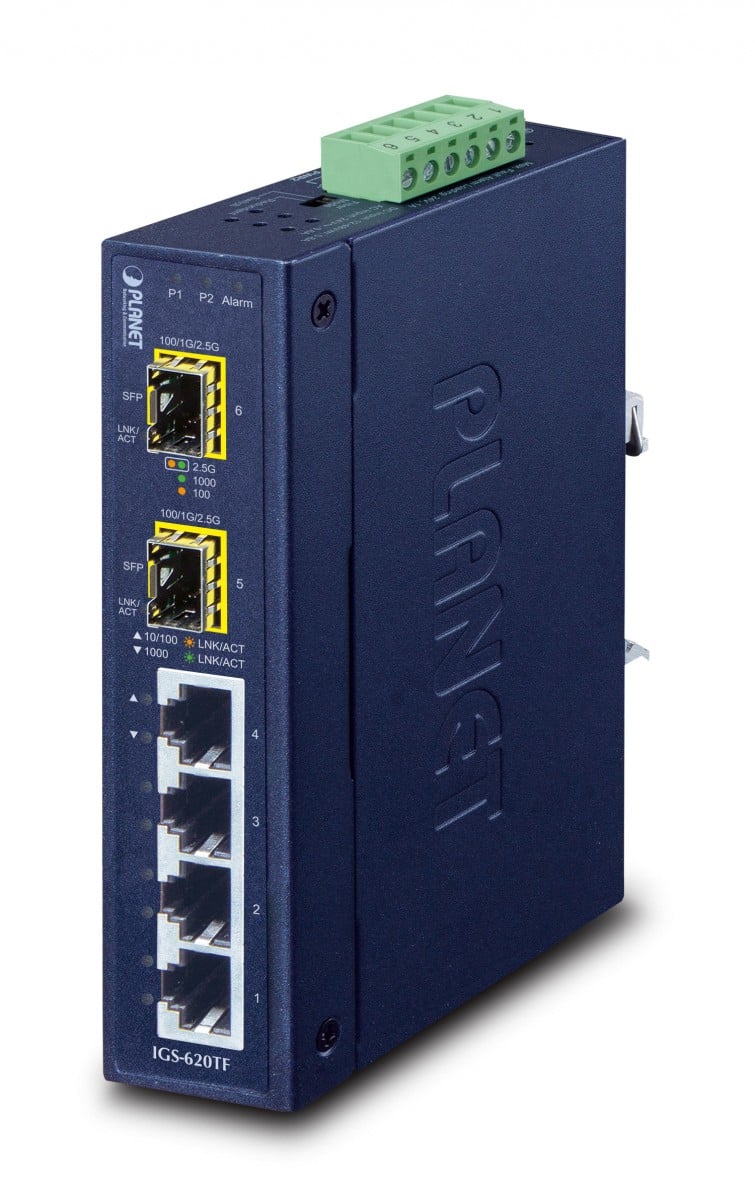

Planet IGS-620TF IP30 Industrial 4-Port 10/100/1000T + 2-Port 100/1000/2500X SFP Gigabit Switch (...

Write a review
187.97
28 days
IGS-620TF
IN STOCK
+
PLANET IGS-620TF. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 4000 entries, Switching capacity: 18 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 12 - 48 V. Wall mountable

Basic data
Item namePlanet IGS-620TF IP30 Industrial 4-Port 10/100/1000T + 2-Port 100/1000/2500X SFP Gigabit Switch (-40 to 75 degree C, dual 12~48V DC/24V AC, Fiber ports Switch/R
Product symbolIGS-620TF
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Switches
Hierarchy by MANUFACTURER
  • PLANET
Package sizes (HxWxL)40 x 210 x 150 mm
Weight gross0.70 kg
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Height
  • 135.00 millimeter
Width
  • 32.00 millimeter
Depth
  • 87.00 millimeter
Weight
  • 425.00 gram
Power
Power consumption (typical)
  • 7.50 W
DC input voltage
  • 12 - 48 V
Data transmission
Throughput
  • 13.39 Mpps
Switching capacity
  • 18.00 Gb/s
MAC address table
  • 4000 entries
Certificates
Certification
  • FCC Part 15 Class A, CE
Design
International Protection (IP) code
  • IP30
Housing material
  • Metal
LED indicators
  • Yes
Product color
  • Blue
Network
Networking standards
  • IEEE 802.1p
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Cable types supported
  • Cat5
  • Cat5e
  • Cat6
Copper ethernet cabling technology
  • 10BASE-T, 100BASE-T, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
  • Gigabit Ethernet (10/100/1000)
Fiber optic connector
  • SFP
Optical fiber
Fiber type
  • Multi-mode
Fiber ethernet cabling technology
  • 1000BASE‑LX
  • 1000BASE‑SX
  • 100BASE-FX
Transmission distance (max)
  • 60.00 kilometer
Management features
Switch layer
  • L2
Switch type
  • Unmanaged
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
