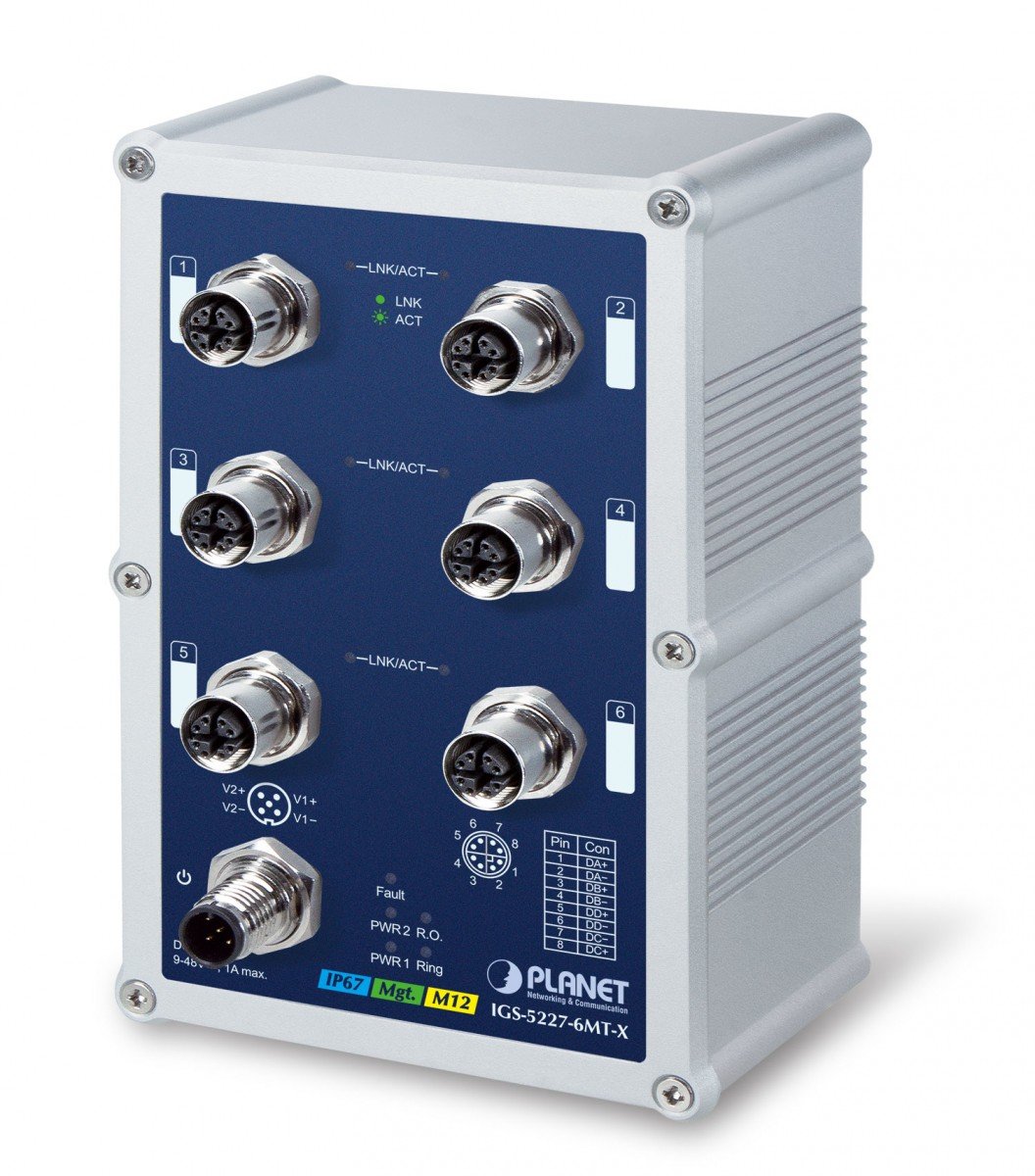

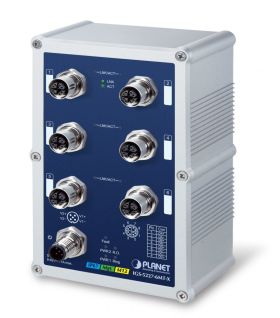

Planet IGS-5227-6MT-X IP67-rated Industrial L2+ 6-Port 10/100/1000T X-coded M12 Managed Ethernet ...

Write a review

€601.71

Vendor: Security Supplier Sales

Return period: 28 days

CODE: IGS-5227-6MT-X

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-5227-6MT-X. Switch type: Managed, Switch layer: L2+. Full duplex. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input voltage: 24 - 48 V. Wall mountable

Basic data
Item name	Planet IGS-5227-6MT-X IP67-rated Industrial L2+ 6-Port 10/100/1000T X-coded M12 Managed Ethernet Switch (-40 to 75 C, 9~48V DC) , ERPS Ring, 1588, Modbus TCP,EN
Product symbol	IGS-5227-6MT-X
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	260 x 170 x 100 mm
Weight gross	1.50 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	163.00 millimeter
Width	103.00 millimeter
Depth	68.20 millimeter
Weight	1037.00 gram
Power
Surge protection voltage	6.00 KV
DC input voltage	24 - 48 V
Power consumption (max)	6.68 W
Data transmission
Packet buffer memory	4.00 MB
Throughput	8.9 Mpps
Switching capacity	12.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC Part 15 Class A, CE IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Operational conditions
Heat dissipation	23.41
Design
International Protection (IP) code	IP67
Housing material	Aluminum
LED indicators	Activity, Link, Power
Product color	Blue, Silver
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3u IEEE 802.3x
Virtual LAN features	MAC address-based VLAN Private VLAN Protocol-based VLAN Tagged VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	No
Security
DHCP features	DHCP relay DHCP snooping
Security algorithms	802.1x RADIUS SNMP SNMPv3 SSH SSL/TLS
Authentication	MAC-based authentication
Management features
Switch layer	L2+
Switch type	Managed
