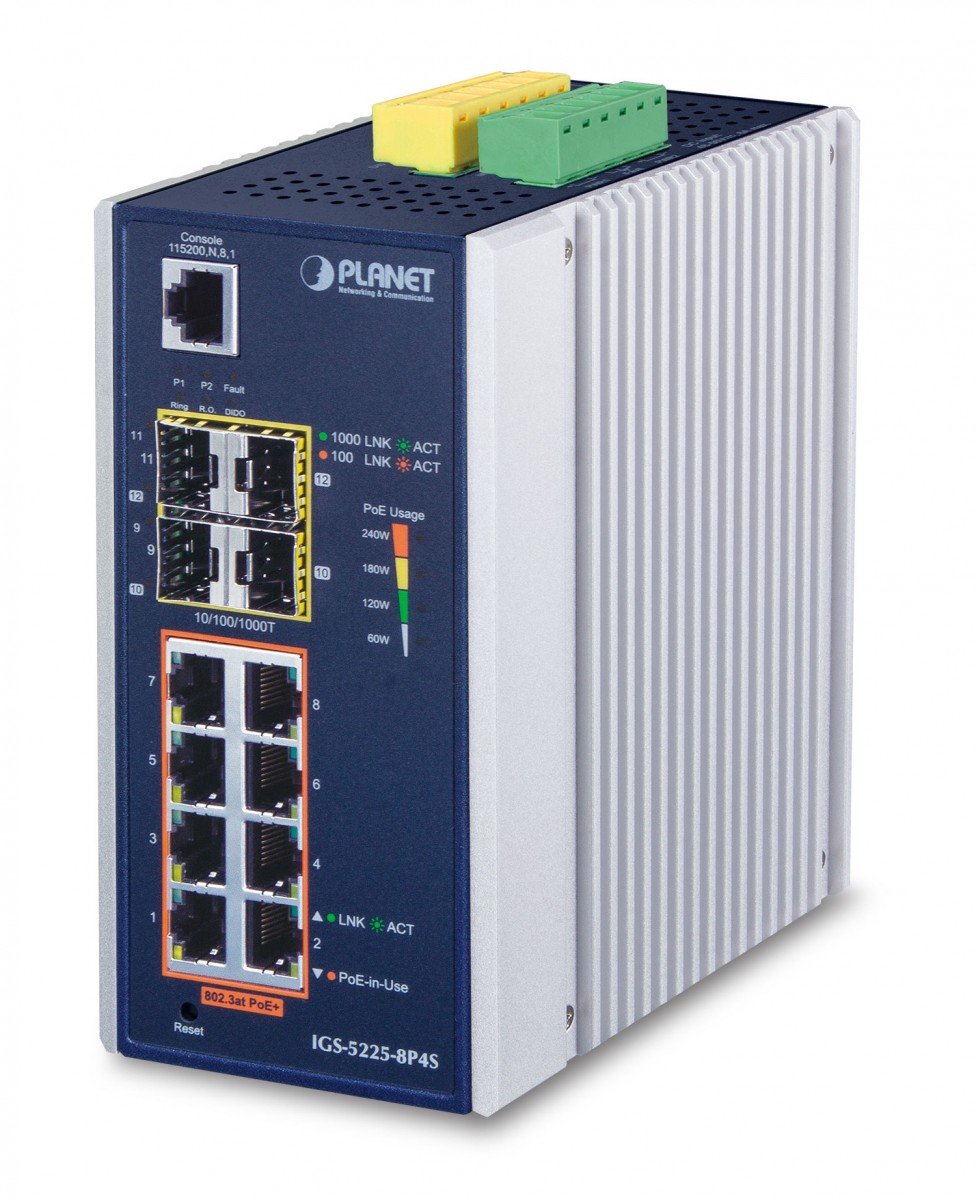

Planet IGS-5225-8P4S IP30 Industrial L2+/L4 8-Port 1000T 802.3at PoE + 2-Port 100/1G SFP + 2-Port...

Write a review

€560.88

Vendor: Security Supplier Sales

Return period: 28 days

CODE: IGS-5225-8P4S

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-5225-8P4S. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE.... DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable

Basic data
Item name	Planet IGS-5225-8P4S IP30 Industrial L2+/L4 8-Port 1000T 802.3at PoE + 2-Port 100/1G SFP + 2-Port 1G/2.5G SFP Full Managed Switch (-40 to 75 C, dual redundant p
Product symbol	IGS-5225-8P4S
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	90 x 170 x 300 mm
Weight gross	1.40 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	152.00 millimeter
Width	76.80 millimeter
Depth	107.33 millimeter
Weight	1093.00 gram
Power
Surge protection voltage	5.00 KV
DC input voltage	48 - 56 V
Power consumption (max)	255.90 W
Data transmission
Packet buffer memory	4.00 MB
Throughput	17.85 Mpps
Switching capacity	24.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC Part 15 Class A, CE IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Operational conditions
Heat dissipation	872.62
Design
International Protection (IP) code	IP30
LED indicators	LAN, PoE, Power
Product color	Blue, Silver
Network
Networking standards	IEEE 1588v2 IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1ad IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	MAC address-based VLAN Private VLAN Protocol-based VLAN Tagged VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Fiber optic connector	SFP
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	240.00 W
Power over Ethernet (PoE) power per port	36.00 W
Security
Authentication type	ieee_802_1x radius
DHCP features	DHCP relay DHCP snooping
Security algorithms	SNMP SNMPv3 SSH SSL/TLS
Authentication	MAC-based authentication
Optical fiber
Fiber ethernet cabling technology	100BASE-FX
Management features
Switch layer	L2+
Switch type	Managed
