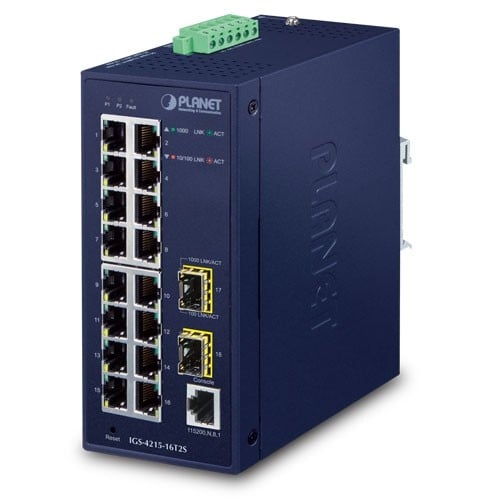

Planet IGS-4215-16T2S IP30 Industrial L2/L4 16-Port 10/100/1000T + 2-Port 100/1000X SFP Managed S...

Write a review

€414.53

Vendor: Security Supplier Sales

Return period: 28 days

CODE: IGS-4215-16T2S

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-4215-16T2S. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input voltage: 12 - 48 V. Wall mountable

Basic data
Item name	Planet IGS-4215-16T2S IP30 Industrial L2/L4 16-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C, dual redundant power input on 12~48VDC
Product symbol	IGS-4215-16T2S
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	90 x 175 x 310 mm
Weight gross	1.50 kg
Weight & dimensions
Height	152.00 millimeter
Width	66.00 millimeter
Depth	107.00 millimeter
Weight	813.00 gram
Power
DC input voltage	12 - 48 V
Power consumption (max)	15.00 W
Data transmission
Packet buffer memory	4.10 MB
Throughput	26.79 Mpps
Switching capacity	36.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC 15 A, CE IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6
Operational conditions
Heat dissipation	51.20
Design
International Protection (IP) code	IP30
Housing material	Metal
LED indicators	Yes
Product color	Blue
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3az IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	Private VLAN Stacked VLAN Tagged VLAN Voice VLAN
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Security
DHCP features	DHCP relay
Security algorithms	SNMPv3 SSH SSH-2 SSL/TLS
Authentication	Port-based authentication
Management features
MIB support	RFC 1213 MIB-II, RFC 1493, RFC 1643, RFC 2863, RFV 2665, RFC 2819, RFC 2737, RFC 2618, RFC 2863, RFC 2933, RFC 3411, RFC 4292, RFC 4836
Switch layer	L2/L4
Switch type	Managed
