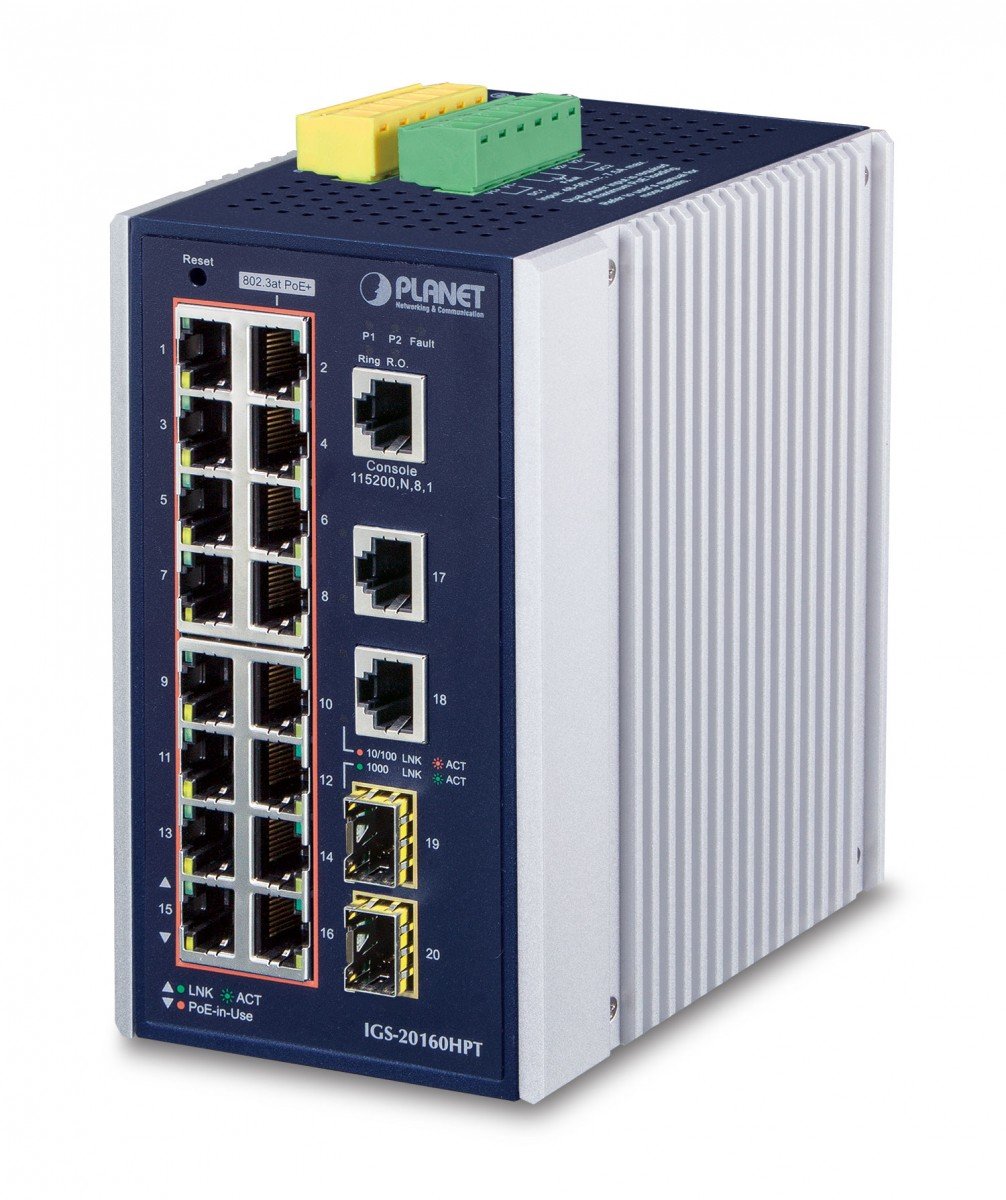

Planet IGS-20160HPT IP30 DIN-rail Industrial L3 16-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/...

Write a review

€934.46

Vendor: Security Supplier Sales

Return period: 28 days

CODE: IGS-20160HPT

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-20160HPT. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18, Installed SFP modules quantity: 2. Full duplex. MAC address table: 32000 entries, Switching capacity: 46 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable

Basic data
Item name	Planet IGS-20160HPT IP30 DIN-rail Industrial L3 16-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-port 1G/2.5G SFP Full Managed Switch (360 watts PoE b
Product symbol	IGS-20160HPT
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	240 x 120 x 170 mm
Weight gross	2 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	152.00 millimeter
Width	86.00 millimeter
Depth	107.00 millimeter
Weight	1548.00 gram
Power
DC input voltage	48 - 56 V
Data transmission
Packet buffer memory	4.00 MB
Throughput	34.2 Mpps
Switching capacity	46.00 Gb/s
MAC address table	32000 entries
Certificates
Certification	FCC 15 A, CE
Operational conditions
Heat dissipation	123.00
Design
Safety	IEC60068-2-32, IEC60068-2-27, IEC60068-2-6
International Protection (IP) code	IP30
Housing material	Aluminum
LED indicators	Activity, Link, PoE, Power, Power fail, Ring
Product color	Blue, White
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1ad IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3ah IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	Port-based VLAN Private VLAN Protocol-based VLAN Stacked VLAN Tagged VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Performance
Maximum data transfer rate	1000.00 Mb/s
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	320.00 W
Multicast features
Multicast MAC address table	4094 entries
Security
Security algorithms	128-bit SSL SNMP SSH
Optical fiber
Fiber ethernet cabling technology	1000BASE‑BX 1000BASE‑LX 1000BASE‑SX
Management features
MIB support	RFC-1213, IF, RFC-1493, RFC-1643, RFC-2863, RFC-2665, RFC-2819, RFC-2737, RFC-2618, RFC-2933, RFC-3411, LLDP, MAU
Switch layer	L2/L3
Switch type	Managed
