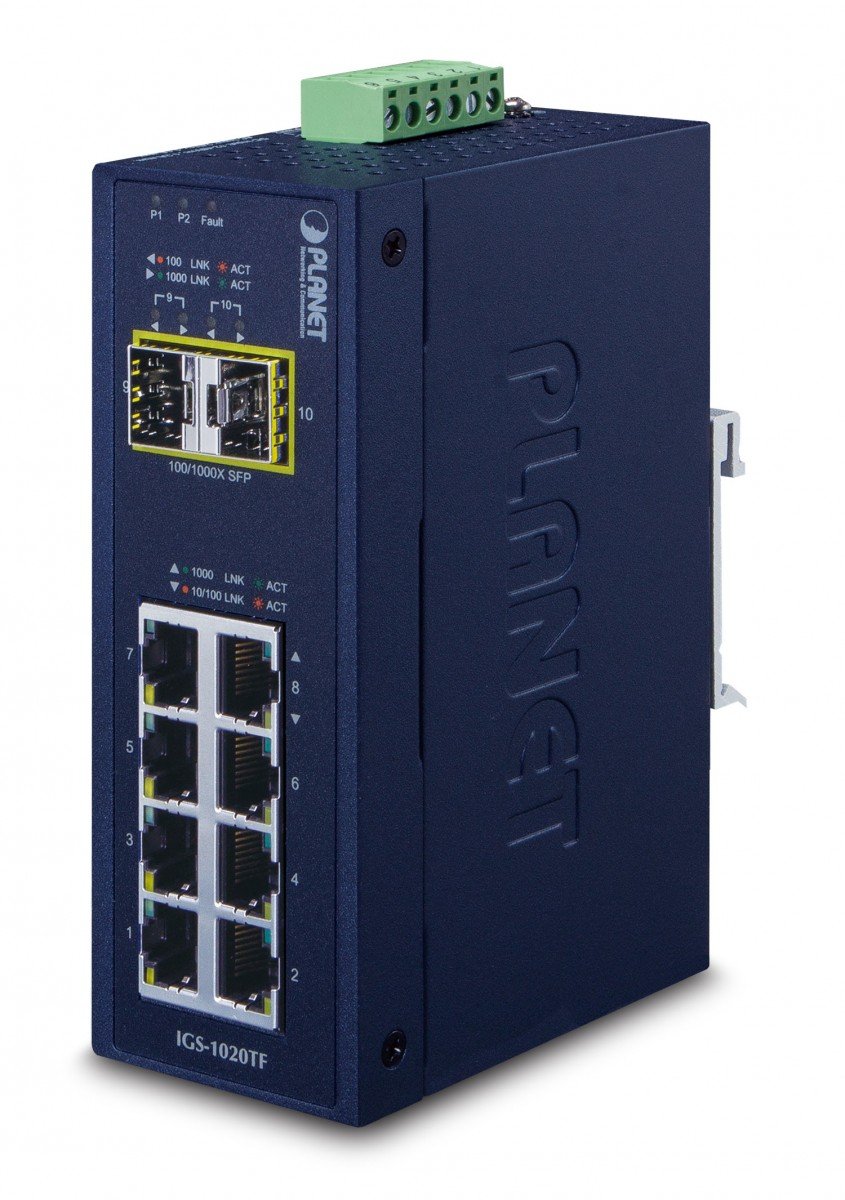

Planet IGS-1020TF IP30 Industrial 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch (-40...

Write a review

€198.39

Vendor: Security Supplier Sales

Return period: 28 days

CODE: IGS-1020TF

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IGS-1020TF. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 24 V. Wall mountable

Basic data
Item name	Planet IGS-1020TF IP30 Industrial 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch (-40~75 degrees C)
Product symbol	IGS-1020TF
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	200 x 100 x 140 mm
Weight gross	0.80 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	135.00 millimeter
Width	56.00 millimeter
Depth	87.00 millimeter
Weight	540.00 gram
Power
Input voltage	12 - 48 V
Power consumption (typical)	8.70 W
Power protection features	Reverse polarity
DC input voltage	24 V
Data transmission
Throughput	14.88 Mpps
Switching capacity	20.00 Gb/s
MAC address table	4000 entries
Certificates
Certification	FCC 15 A, CE, IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6
Operational conditions
Heat dissipation	29.69
Design
International Protection (IP) code	IP30
Housing material	Metal
LED indicators	Activity, Link, Power
Product color	Blue
Network
Networking standards	IEEE 802.1p IEEE 802.3 IEEE 802.3ab IEEE 802.3az IEEE 802.3u IEEE 802.3x IEEE 802.3z
Cable types supported	Cat5 Cat5e Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fiber optic connector	SFP
Optical fiber
Fiber ethernet cabling technology	100BASE-FX
Transmission distance (max)	60.00 kilometer
Management features
Switch layer	L2
Switch type	Unmanaged
