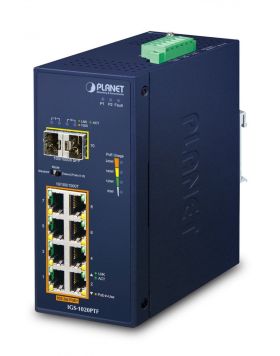

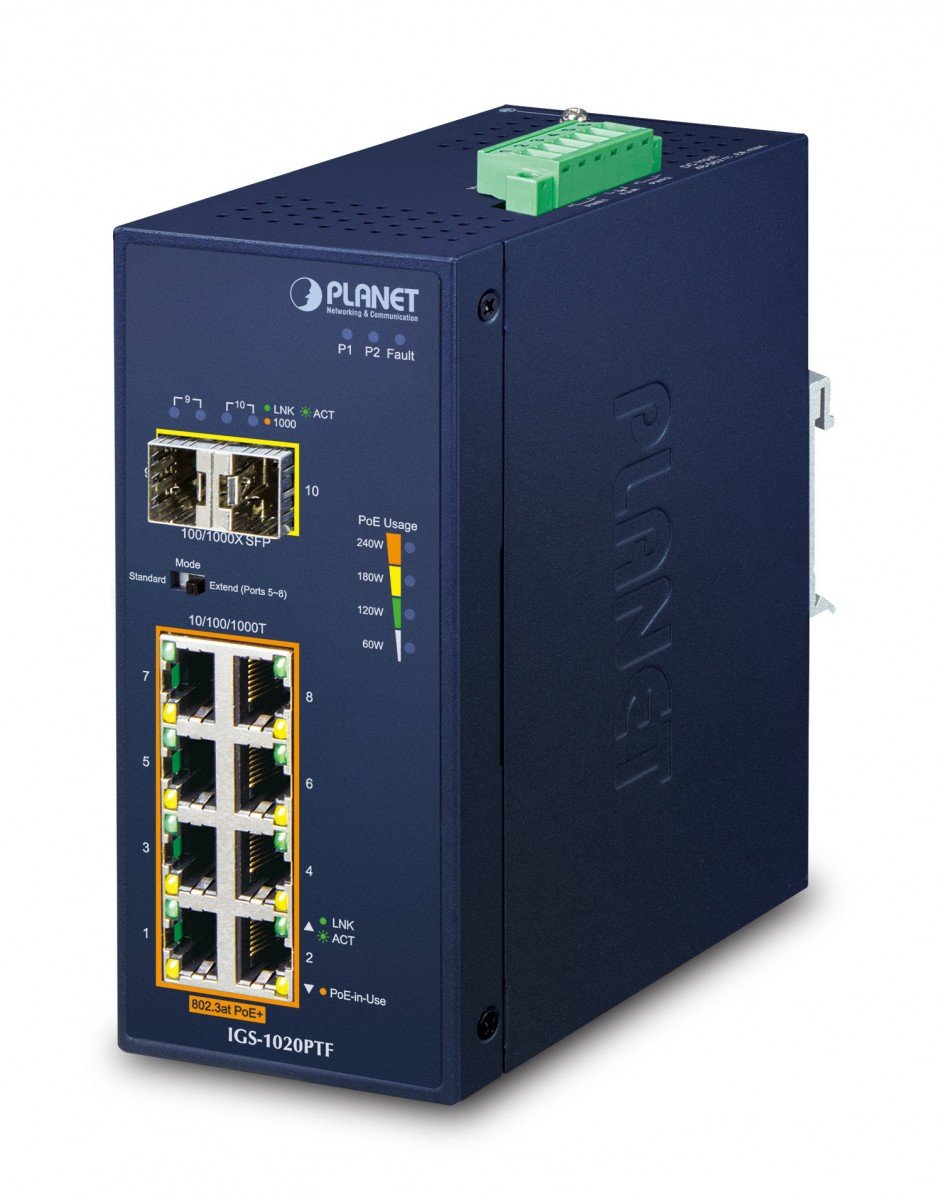

Planet IGS-1020PTF IP30 Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Etherne...

Write a review

€324.76

Vendor: Security Supplier Sales

Return period: 28 days

CODE: IGS-1020PTF

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IP30 Ind 8-P 10/100/1000T. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z. DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable

Basic data
Item name	Planet IGS-1020PTF IP30 Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch (-40~75 degrees C, 250m Extend mode, PoE Usage LED, du
Product symbol	IGS-1020PTF
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	95 x 180 x 310 mm
Weight gross	1.10 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	152.00 millimeter
Width	66.00 millimeter
Depth	106.00 millimeter
Weight	879.00 gram
Power
Input current	6 A
DC input voltage	48 - 56 V
Data transmission
Throughput	14.8 Mpps
Switching capacity	20.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC Part 15 Class A, CE IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Design
Housing material	Metal
LED indicators	Yes
Product color	Blue
Network
Networking standards	IEEE 802.3 IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.3u IEEE 802.3z
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	240.00 W
Management features
Switch layer	L2
Switch type	Unmanaged
