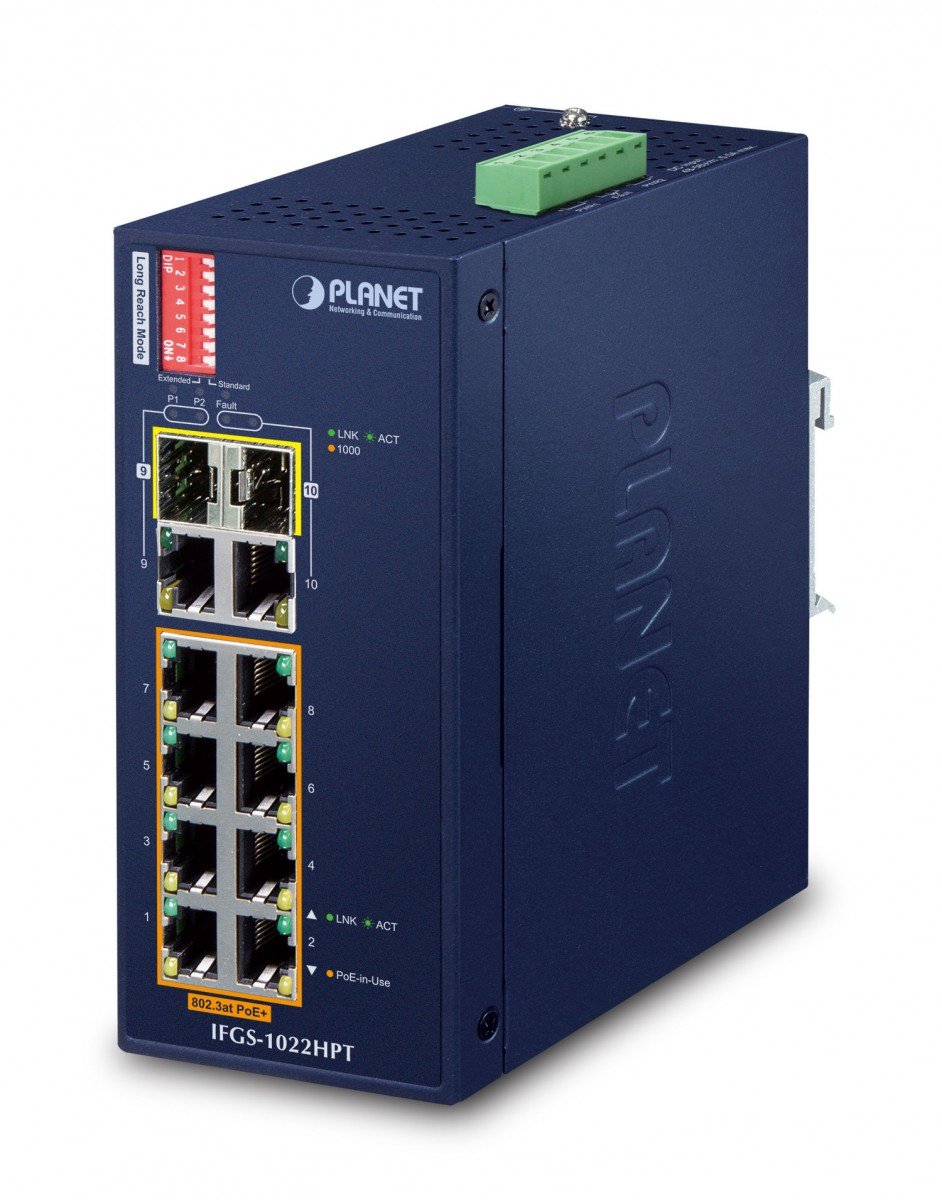

Planet IFGS-1022HPT IP30 Industrial 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP combo Eth...

Write a review

€308.71

Vendor: Security Supplier Sales

Return period: 28 days

CODE: IFGS-1022HPT

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET IFGS-1022HPT. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 16000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable

Basic data
Item name	Planet IFGS-1022HPT IP30 Industrial 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP combo Ethernet Switch (-40 to 75 C, 250m Extend mode, dual redundant pow
Product symbol	IFGS-1022HPT
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	300 x 100 x 180 mm
Weight gross	1.30 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	161.00 millimeter
Width	72.00 millimeter
Depth	107.00 millimeter
Weight	1034.00 gram
Power
Input current	5.5 A
DC input voltage	48 - 56 V
Power consumption (max)	241.00 W
Data transmission
Packet buffer memory	4.00 MB
Throughput	4.1 Mpps
Switching capacity	5.60 Gb/s
MAC address table	16000 entries
Certificates
Certification	FCC Part 15 Class A, CE IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Operational conditions
Heat dissipation	832.00
Design
International Protection (IP) code	IP30
Housing material	Aluminum
LED indicators	Yes
Product color	Blue
Network
Networking standards	IEEE 802.3 IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	240.00 W
Power over Ethernet (PoE) power per port	30.00 W
Management features
Switch layer	L2
Switch type	Unmanaged

Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
