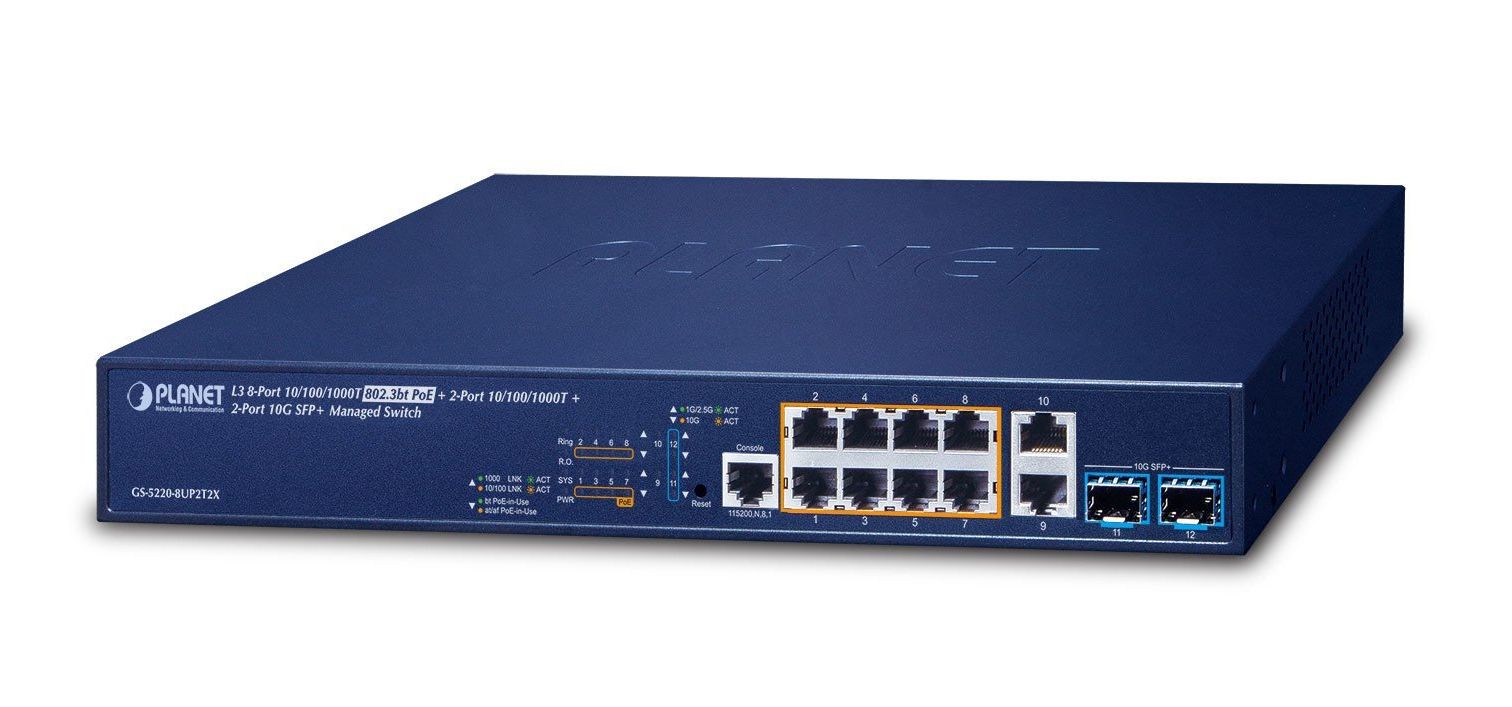

Planet GS-5220-8UP2T2X L3 8-Port 10/100/1000T 95W 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 10G ...

Write a review

€623.20

Vendor: Security Supplier Sales

Return period: 28 days

CODE: GS-5220-8UP2T2X

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET GS-5220-8UP2T2X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10, Installed SFP modules quantity: 2, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Basic data
Item name	Planet GS-5220-8UP2T2X L3 8-Port 10/100/1000T 95W 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 10G SFP+ Managed Switch (240W PoE Budget, 200m Extend mode, ERPS Ri
Product symbol	GS-5220-8UP2T2X
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	43.5 x 330 x 200 mm
Weight gross	2.10 kg
Weight & dimensions
Height	43.50 millimeter
Width	330.00 millimeter
Depth	200.00 millimeter
Weight	2100.00 gram
Power
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	284.00 W
Data transmission
Packet buffer memory	16.00 MB
Throughput	44.642 Mpps
Switching capacity	60.00 Gb/s
MAC address table	16000 entries
Certificates
Certification	FCC Part 15 Class A, CE
Protocols
Routing protocols	OSPF
Operational conditions
Heat dissipation	969.00
Design
Form factor	1U
LED indicators	Activity, Fan fail, Link, PoE, Power, Ring, System
Product color	Blue
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	MAC address-based VLAN Multicast VLAN Private VLAN Protocol-based VLAN Tagged VLAN Voice VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	240.00 W
Power over Ethernet (PoE) power per port	90.00 W
Security
Queue scheduling algorithms	Priority queuing (PQ) Weighted Round Robin (WRR)
Security algorithms	SNMP SNMPv3
Authentication	Port-based authentication
Management features
Switch layer	L3
Switch type	Managed
