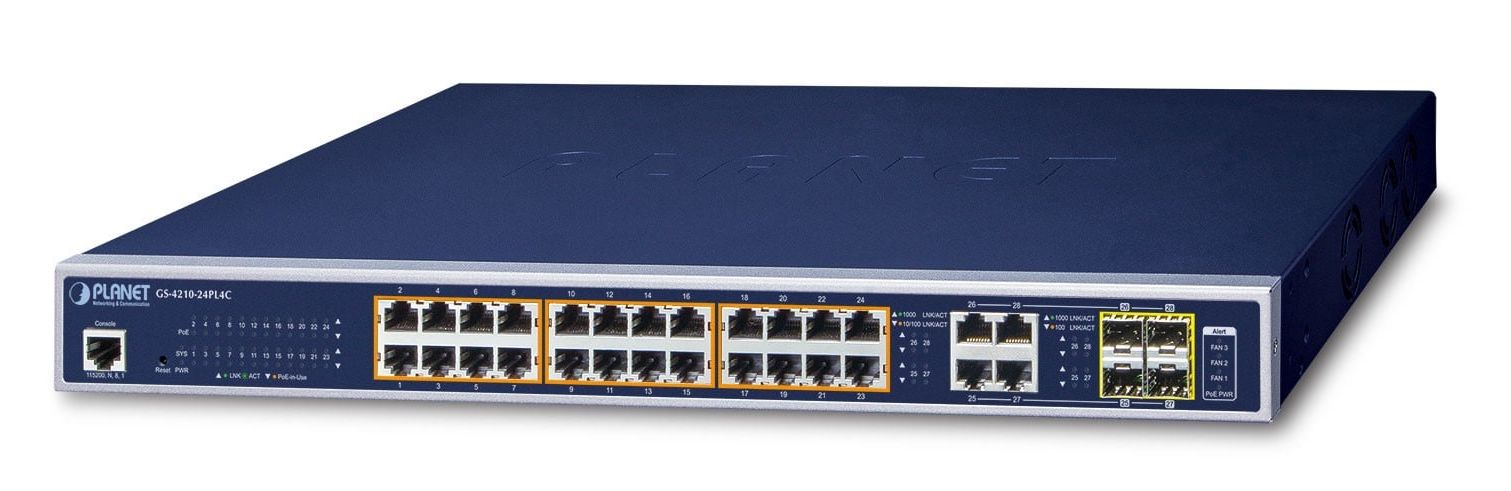

Planet GS-4210-24PL4C IPv6/IPv4, 24-Port Managed 802.3at PoE+ Gigabit Ethernet Switch + 4-Port Gi...

Write a review

€567.02

Vendor: Security Supplier Sales

Return period: 28 days

CODE: GS-4210-24PL4C

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET GS-4210-24PL4C. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 28, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Basic data
Item name	Planet GS-4210-24PL4C IPv6/IPv4, 24-Port Managed 802.3at PoE+ Gigabit Ethernet Switch + 4-Port Gigabit Combo TP/SFP (430W PoE Budget, 250m Extend mode, supports
Product symbol	GS-4210-24PL4C
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	100 x 390 x 570 mm
Weight gross	5.80 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	44.50 millimeter
Width	440.00 millimeter
Depth	300.00 millimeter
Weight	4800.00 gram
Power
Power protection features	Short circuit
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	520.00 W
Data transmission
Packet buffer memory	4.10 MB
Throughput	41.67 Mpps
Switching capacity	56.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	FCC 15 A, CE
Operational conditions
Heat dissipation	1774.00
Packaging data
Package depth	570.00 millimeter
Package height	100.00 millimeter
Package width	395.00 millimeter
Package type	Box
Package weight	500.00 gram
Design
Number of fans	3 fan(s)
Form factor	1U
Housing material	Metal
LED indicators	Activity, Link, PoE, Power, System
Product color	Blue
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	Private VLAN Protocol-based VLAN Tagged VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Fiber optic connector	MiniGBIC SFP
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	440.00 W
Power over Ethernet (PoE) power per port	36.00 W
Security
Security algorithms	802.1x RADIUS SNMP SSH
Authentication	Port-based authentication
Optical fiber
Fiber ethernet cabling technology	1000BASE-X
Transmission distance (max)	0.10 kilometer
Management features
MIB support	RFC 1213, RFC 1215, RFC 1493, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3635
Switch layer	L2/L4
Switch type	Managed
