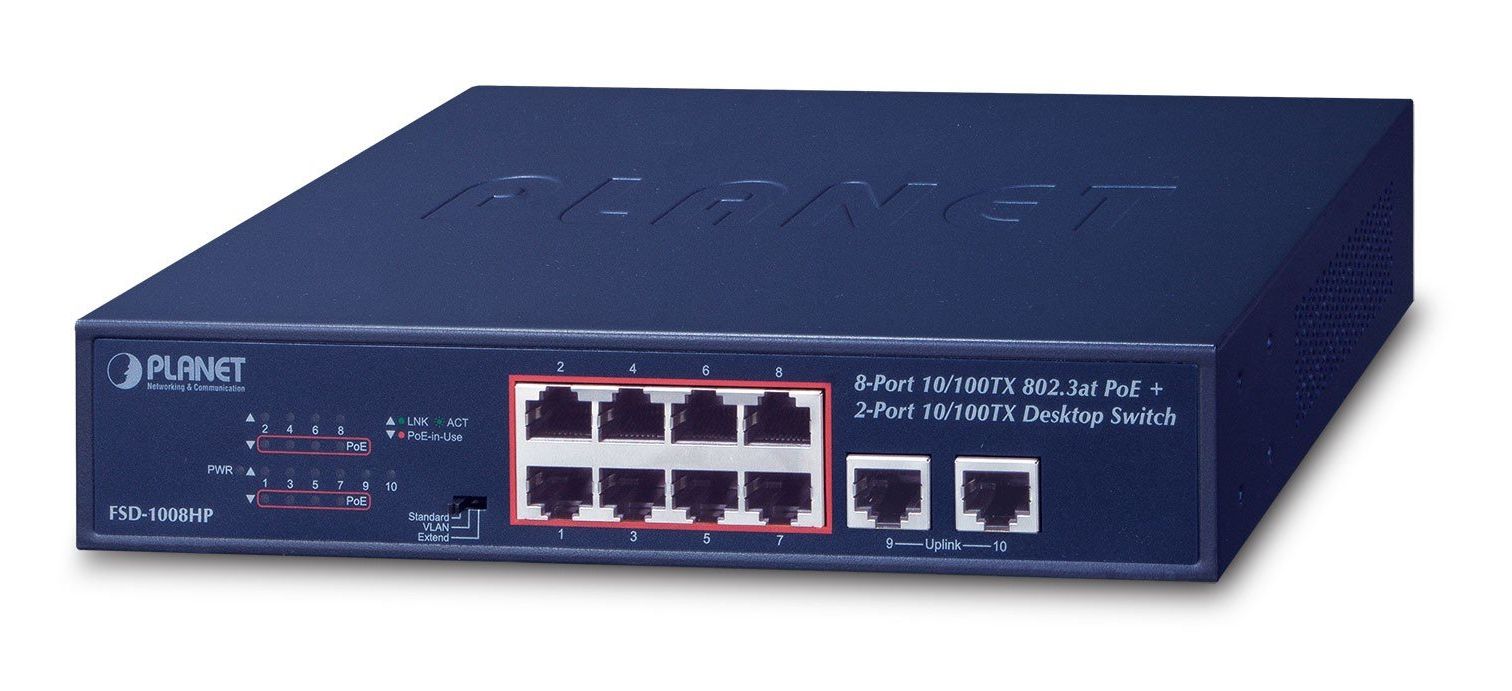

Planet FSD-1008HP 8-Port 10/100TX 802.3at PoE + 2-Port 10/100TX Desktop Switch (120W PoE Budget, ...

Write a review

€95.63

Vendor: Security Supplier Sales

Return period: 28 days

CODE: FSD-1008HP

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET FSD-1008HP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 8000 entries, Switching capacity: 2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Basic data
Item name	Planet FSD-1008HP 8-Port 10/100TX 802.3at PoE + 2-Port 10/100TX Desktop Switch (120W PoE Budget, Standard/VLAN/Extend mode, fanless, 10-inch and rack-mountable)
Product symbol	FSD-1008HP
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	80 x 210 x 310 mm
Weight gross	1.40 kg
Weight & dimensions
Height	43.00 millimeter
Width	220.00 millimeter
Depth	150.00 millimeter
Weight	1230.00 gram
Power
Input current	2.5 A
Power consumption (typical)	5.00 W
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Data transmission
Throughput	1.48 Mpps
Switching capacity	2.00 Gb/s
MAC address table	8000 entries
Certificates
Certification	CE, FCC
Operational conditions
Heat dissipation	440.10
Design
Form factor	1U
Housing material	Metal
LED indicators	Yes
Product color	Blue
Network
Networking standards	IEEE 802.3 IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.3u IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	120.00 W
Management features
Switch layer	L2
Switch type	Unmanaged
