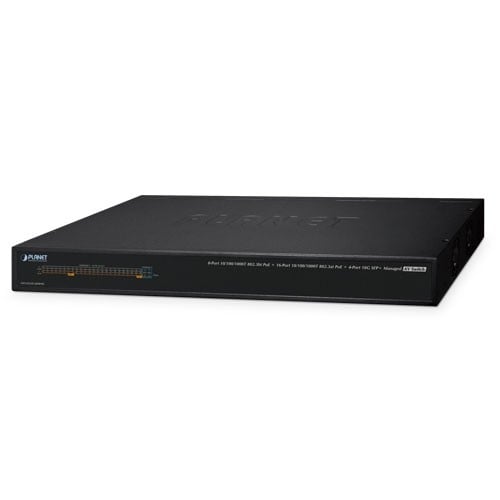

PLANET AVS-4210-24HP4X network switch Managed L2/L4 10G Ethernet (100/1000/10000) Power over Ethe...

Write a review

€719.76

Vendor: Security Supplier Sales

Return period: 28 days

CODE: AVS-4210-24HP4X

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET AVS-4210-24HP4X. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP+ modules quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Basic data
Item name	PLANET AVS-4210-24HP4X network switch Managed L2/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Product symbol	AVS-4210-24HP4X
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	44 x 440 x 207 mm
Weight gross	3.44 kg
Weight & dimensions
Height	44.00 millimeter
Width	440.00 millimeter
Depth	207.00 millimeter
Weight	3443.00 gram
Power
Power source	AC/PoE
Power consumption (typical)	15.10 W
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	533.00 W
Data transmission
Packet buffer memory	12.00 MB
Throughput	95.23 Mpps
Switching capacity	128.00 Gb/s
MAC address table	16000 entries
Operational conditions
Heat dissipation	51.50
Design
Form factor	1U
LED indicators	Activity, Link, PoE, Power, System
Product color	Black
Network
Networking standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1ab IEEE 802.1ad IEEE 802.1p IEEE 802.1s IEEE 802.1w IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.3bt IEEE 802.3u IEEE 802.3x IEEE 802.3z
Virtual LAN features	Management VLAN Private VLAN Protocol-based VLAN Tagged VLAN
Ethernet LAN data rates	10,100,1000 Mbit/s
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Console port	RJ-45
Fiber optic connector	SFP+
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	450.00 W
Multicast features
Multicast Listener Discovery (MLD) snooping	IPv6 MLD snooping v2, v3, up to 256 multicast groups
Security
Authentication type	radius tacacs_
DHCP features	DHCP Option 82 DHCP snooping
Security algorithms	SNMP SNMPv2 SNMPv3 SSH SSH-2
Management features
MIB support	RFC 1213 MIB-II, RFC 1215 Generic Traps, RFC 1493 Bridge MIB, RFC 2674 Bridge MIB Extensions, RFC 2737 Entity MIB (Version 2), RFC 2819 RMON (1, 2, 3, 9), RFC 2863 Interface Group MIB, RFC 3635 Ethernet-like MIB, RFC 3621 Power Ethernet MIB
Switch layer	L2/L4
Switch type	Managed
