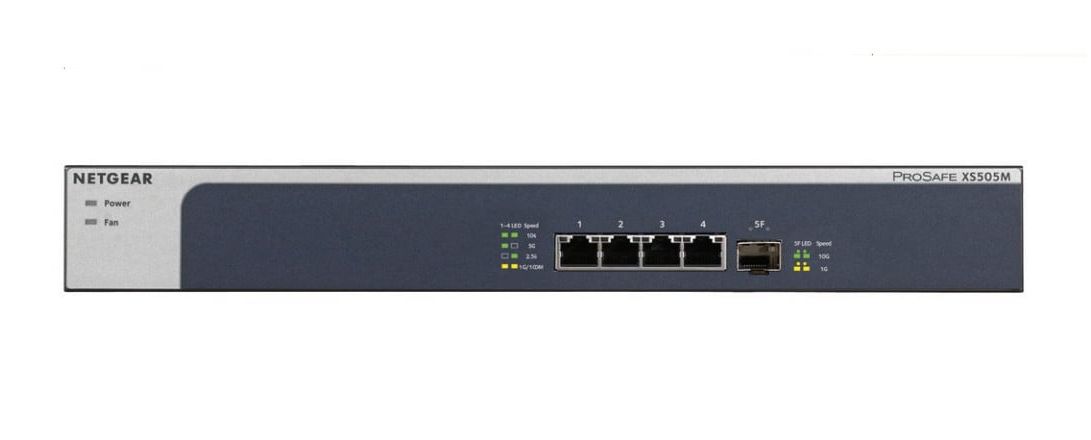

NETGEAR XS505M-100EUS 5PT 10G/MULTIGIGABIT UNMANAGED SWITCH

Write a review

€423.67

Vendor: Security Supplier Sales

Return period: 28 days

CODE: XS505M-100EUS

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

NETGEAR XS505M. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az,.... Power connector: DC-in jack. Rack mounting

Basic data
Item name	NETGEAR XS505M-100EUS 5PT 10G/MULTIGIGABIT UNMANAGED SWITCH
Product symbol	XS505M-100EUS
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Switches
Hierarchy by MANUFACTURER	Netgear
Package sizes (HxWxL)	290 x 80 x 480 mm
Weight gross	2.60 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	43.20 millimeter
Width	328.00 millimeter
Depth	169.00 millimeter
Weight	1380.00 gram
Power
Power source	AC
Input current	1.5 A
Power consumption (typical)	12.25 W
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	22.50 W
Data transmission
Packet buffer memory	128.00 MB
Switching capacity	100.00 Gb/s
MAC address table	2000 entries
Certificates
Certification	47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438
Operational conditions
Heat dissipation	85.30
Design
Safety	CE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI
LED indicators	Yes
Product color	Gray, Silver
Network
Networking standards	IEEE 802.1p IEEE 802.3 IEEE 802.3ab IEEE 802.3ae IEEE 802.3an IEEE 802.3aq IEEE 802.3az IEEE 802.3bz IEEE 802.3u IEEE 802.3x IEEE 802.3z
Performance
Mean time between failures (MTBF)	1093237.00 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Power connector	DC-in jack
Management features
Switch layer	L2
Switch type	Unmanaged
