TP-Link MC220L 10/100/1000 Mbps RJ45 to 1000 Mbps SFP Slot Supporting MiniGBIC Modules

Write a review

€18.05

Vendor: Security Supplier Sales

Return period: 28 days

CODE: MC220L

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

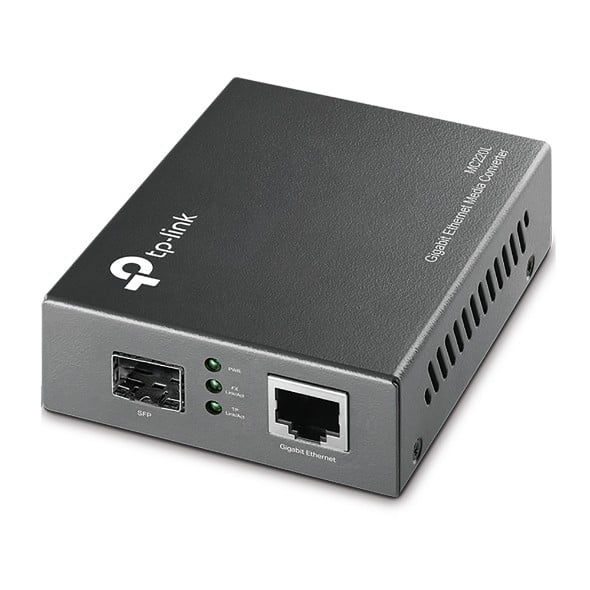

TP-LINK MC220L - Fibre media converter

TP-LINK MC220L

The MC220L is a media converter designed to convert 1000Base-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a standalone device (no chassis required) or with TP-Link's 19"system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.

TP-LINK MC220L network media converter 1000 Mbit/s Multi-mode, Single-mode Black

Additional Product Notes

Works at 1000Mbps in full-duplex mode for both TX port and FX port
Supports auto MID/MID-X for TX port
Link fault pass through and far end fault minimize the loss caused by link failure timely
Provides switch configuration of force /auto transfer mode for FX port
FX port support hot-swappable
Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
Easy-to-view LED indicators provide status to monitor network activity easily
External power supply
Complies with IEEE 802.3ab and IEEE 802.3z
1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Complies with IEEE 802.3ab and IEEE 802.3z
FX port supports hot-swappable

Basic data
Item name	TP-Link MC220L 10/100/1000 Mbps RJ45 to 1000 Mbps SFP Slot Supporting MiniGBIC Modules
Product symbol	MC220L
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Media Converters
Hierarchy by MANUFACTURER	TP-LINK
Package sizes (HxWxL)	65 x 165 x 210 mm
Weight gross	0.50 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	27.00 millimeter
Width	94.00 millimeter
Depth	73.00 millimeter
Power
Power consumption (max)	1.70 W
Certificates
icecat_automatic_48024_76	RoHS
Features
LED indicators	Yes
Product color	Black
Network
Maximum data transfer rate	1000.00 Mb/s
Networking standards	IEEE 802.3ab IEEE 802.3x IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Cable types supported	Cat5 Cat5e Cat6
Duplex system	Full Half
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Fiber mode structure	Multi-mode Single-mode
Maximum transfer distance	10000.00 meter
Ports & interfaces
Connectivity technology	Wired
Fiber optic connector	SFP

Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
