TP-Link FC311B-2 (TL-FC311B-2) 10/100/1000 Mbps RJ45 to 1000 Mbps Single-mode SC WDM Bi-Direction...

Write a review

€28.24

Vendor: Security Supplier Sales

Return period: 28 days

CODE: FC311B-2

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

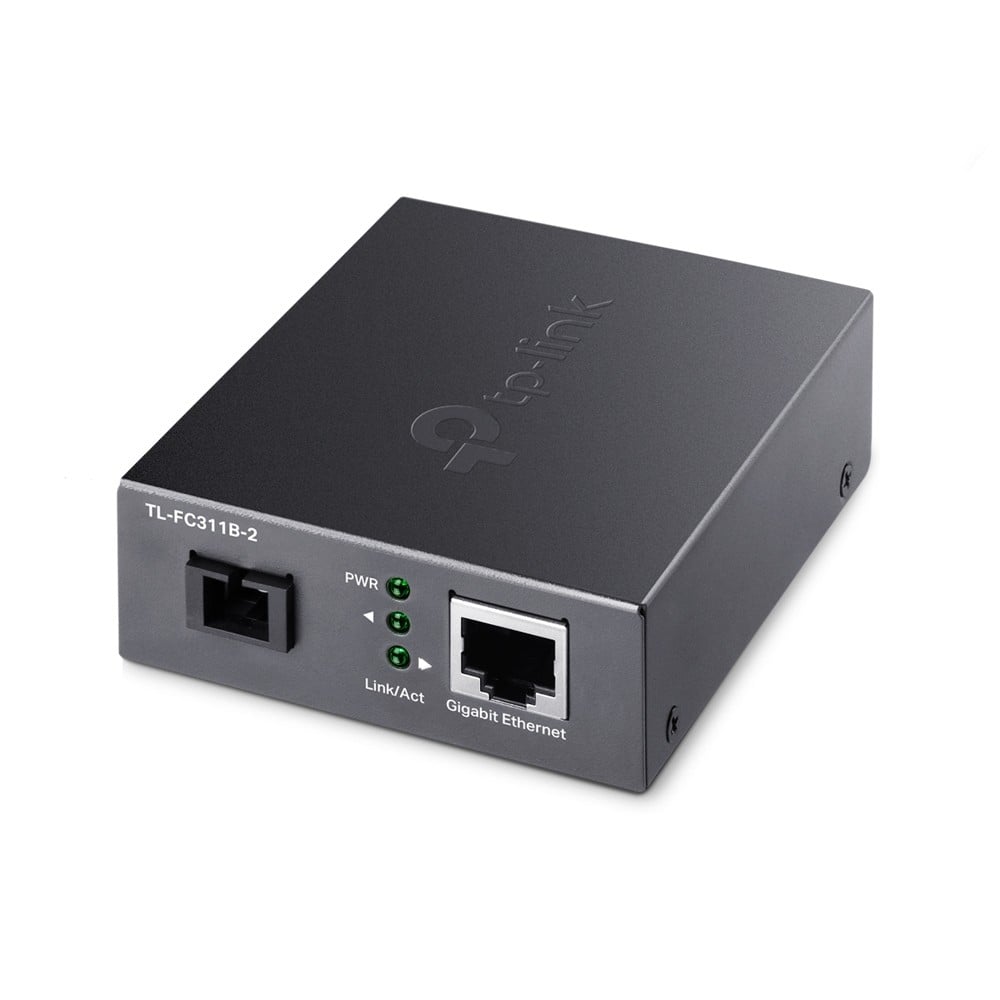

The TP-Link Gigabit WDM Media Converter (Model: FC311B-2) is engineered to provide high-speed, wired connectivity with an impressive maximum data transfer rate of 1000 Mbit/s. This device supports a range of networking standards, including IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3z, ensuring compatibility with various network configurations. With its Gigabit Ethernet interface, it delivers robust speed and performance, making it an ideal choice for both home and enterprise networking solutions.

Designed for seamless network integration, the FC311B-2 features an SC fiber optic connector that operates on a single-mode fiber structure with a core/cladding diameter of 9/125 µm. This capability allows for maintaining fiber connectivity over a maximum transfer distance of up to 20 kilometers, which is particularly advantageous for extended network configurations. The unit is equipped with LED indicators for activity, link, and power status, providing users with visual monitoring of network performance.

In addition to its technical specifications, the TP-Link brand is renowned for its commitment to quality and innovation in networking solutions. The FC311B-2 operates with an output voltage of 5 V and an output current of 0.6 A, ensuring reliable performance. This media converter stands out in the market for its ability to enhance data transmission reliability across long distances, making it a superior choice for those looking to expand their network reach efficiently.

Basic data
Item name	TP-Link FC311B-2 (TL-FC311B-2) 10/100/1000 Mbps RJ45 to 1000 Mbps Single-mode SC WDM Bi-Directional Fiber Converter
Product symbol	FC311B-2
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Media Converters
Hierarchy by MANUFACTURER	TP-LINK
Package sizes (HxWxL)	200 x 70 x 170 mm
Weight gross	0.40 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	27.00 millimeter
Width	94.50 millimeter
Depth	73.00 millimeter
Power
Output voltage	5 V
Output current	0.60 A
Packaging data
Package depth	204.00 millimeter
Package height	65.00 millimeter
Package width	165.00 millimeter
Package weight	360.00 gram
Features
LED indicators	Activity, Link, Power
Product color	Black
Network
Maximum data transfer rate	1000.00 Mb/s
Data transfer rate	1000.00 Mb/s
Networking standards	IEEE 802.3ab IEEE 802.3i IEEE 802.3u IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Duplex system	Full Half
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Fiber mode structure	Single-mode
Maximum transfer distance	20000.00 meter
Fiber cable diameters supported (core/cladding)	9/125
Ports & interfaces
Connectivity technology	Wired
Fiber optic connector	SC
