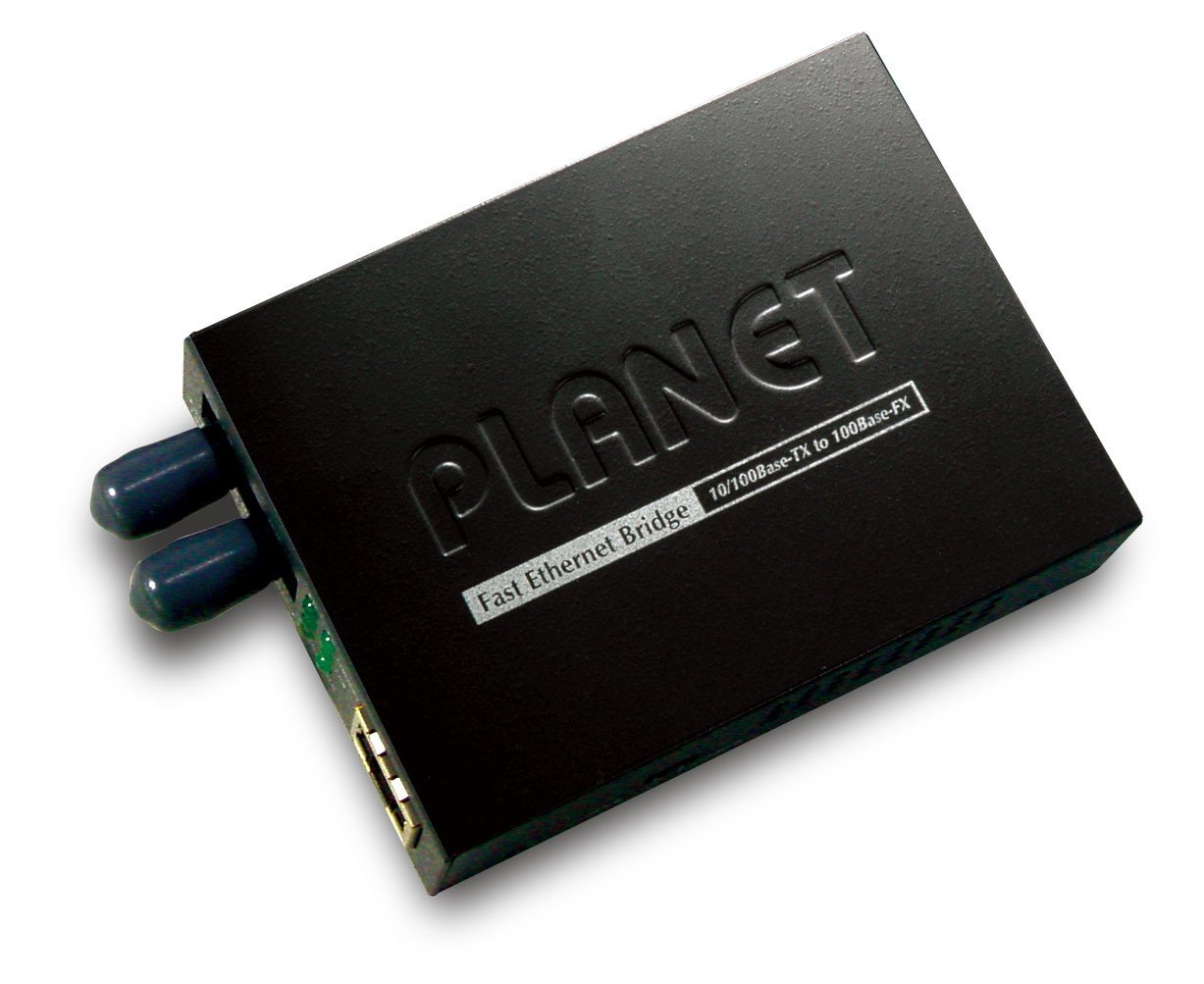

Planet FT-801 10/100Base-TX to 100Base-FX (ST) Bridge Media Converter, LFPT Supported

Write a review

€59.50

Vendor: Security Supplier Sales

Return period: 28 days

CODE: FT-801

Availability: IN STOCK

Quantity:

+ −

Description
Reviews

PLANET FT-801. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 78740.2" (2000 m), Wavelength: 1310 nm, Fiber mode structure: Multi-mode. Product color: Black, Housing material: Metal. Fiber optic connector: ST, Connectivity technology: Wired. Input voltage: 5 V, Input current: 2 A

Basic data
Item name	Planet FT-801 10/100Base-TX to 100Base-FX (ST) Bridge Media Converter, LFPT Supported
Product symbol	FT-801
Hierarchy by CATEGORY	Computers & Peripherals Networking Networking Hardware Network Media Converters
Hierarchy by MANUFACTURER	PLANET
Package sizes (HxWxL)	30 x 140 x 70 mm
Weight gross	0.40 kg
Logistics data
Harmonized System (HS) code	85176990
Weight & dimensions
Height	26.00 millimeter
Width	94.00 millimeter
Depth	70.00 millimeter
Weight	200.00 gram
Power
Input voltage	5 V
Input current	2 A
Certificates
Certification	FCC, CE
Features
Housing material	Metal
LED indicators	Yes
Product color	Black
Network
Converter input interface	100Base-TX
Converter output interface	100Base-FX
Maximum data transfer rate	100.00 Mb/s
Networking standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x
Ethernet interface type	Fast Ethernet
Duplex system	Full Half
Ethernet LAN data rates	10,100 Mbit/s
Performance
Wavelength	1310.00 nm
Sensitivity	-31.8 dBmW
Fiber mode structure	Multi-mode
Maximum transfer distance	2000.00 meter
Fiber cable diameters supported (core/cladding)	50/125 62.5/125
Tx power (max)	-14 dBmW
Tx power (min)	-23.5 dBmW
Ports & interfaces
Connectivity technology	Wired
Fiber optic connector	ST
