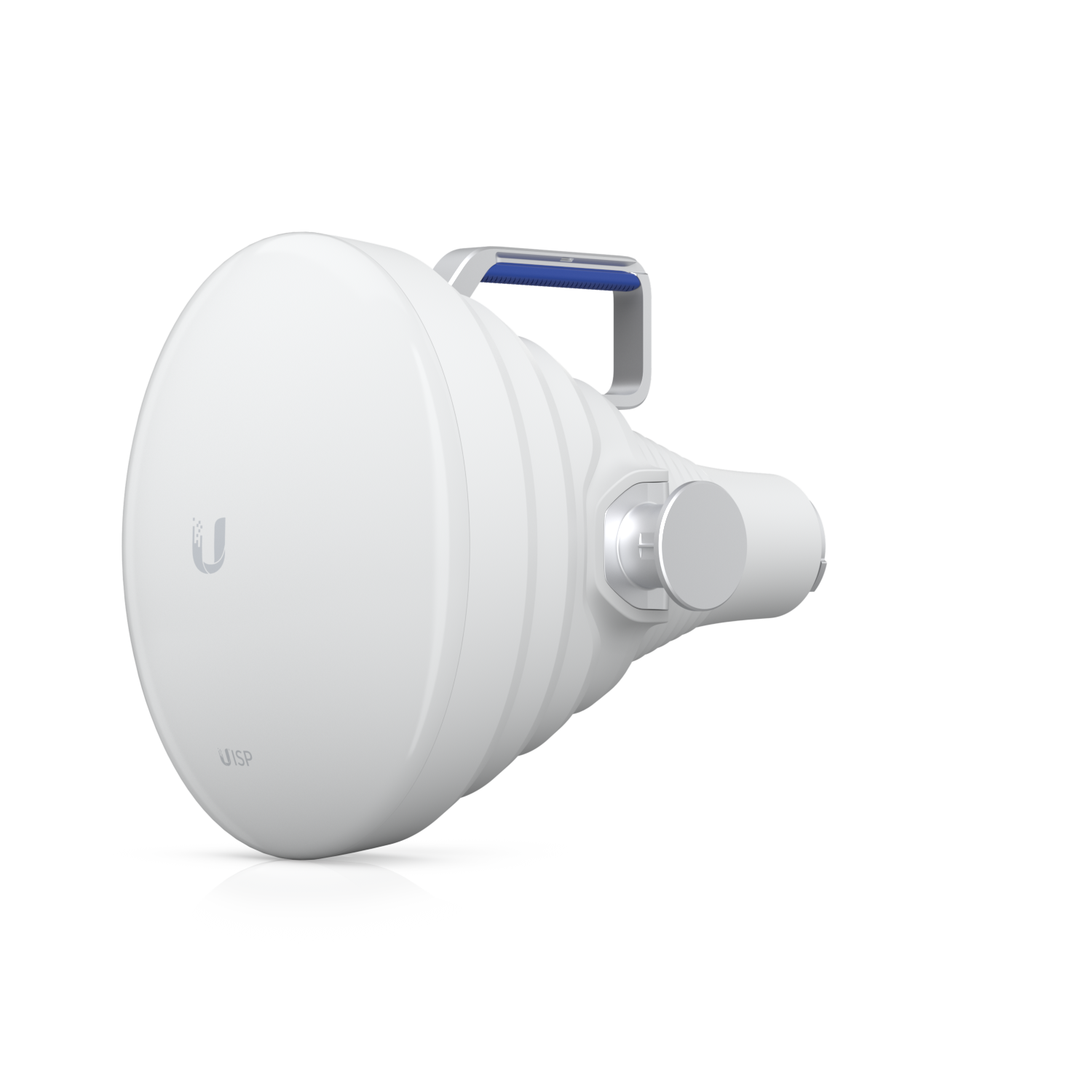

Ubiquiti Networks UISP-Horn network antenna Horn antenna 19.5 dBi

Write a review
238.09
28 days
UISP-HORN
IN STOCK
+
Ubiquiti UISP Horn. Antenna gain level (max): 19.5 dBi, Frequency band: 5.15 - 6.875 GHz, Horizontal beam width: 30°. Antenna type: Horn antenna, Polarization: Dual polarization, Product color: White. Width: 8.82" (224 mm), Depth: 15" (380 mm), Height: 11.1" (282 mm)

Basic data
Item nameUbiquiti Networks UISP-Horn network antenna Horn antenna 19.5 dBi
Product symbolUISP-HORN
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Antennas
Hierarchy by MANUFACTURER
  • Ubiquiti
Package sizes (HxWxL)310 x 360 x 450 mm
Weight gross6.70 kg
Weight & dimensions
Height
  • 282.00 millimeter
Width
  • 224.00 millimeter
Depth
  • 380.00 millimeter
Weight
  • 3060.00 gram
Features
Antenna type
  • Horn antenna
Mounting
  • Pole
Survival wind speed
  • 200.00 km/h
Compatible products
  • airFiber 5XHD Radio (AF 5XHD), LTU Rocket, or airMAX Rocket Prism AC 5 GHz Radio (RP 5AC)
Isolation
  • 20.00 dB
Purpose
  • Outdoor
Polarization
  • Dual polarization
International Protection (IP) code
  • IPX6
Housing material
  • Aluminum, Polycarbonate (PC)
Product color
  • White
Performance
Frequency band
  • 5.15 - 6.875 GHz
Antenna gain level (max)
  • 19.5 dBi
Horizontal beam width
  • 30.00 degrees
Vertical beam width
  • 25.00 degrees
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
