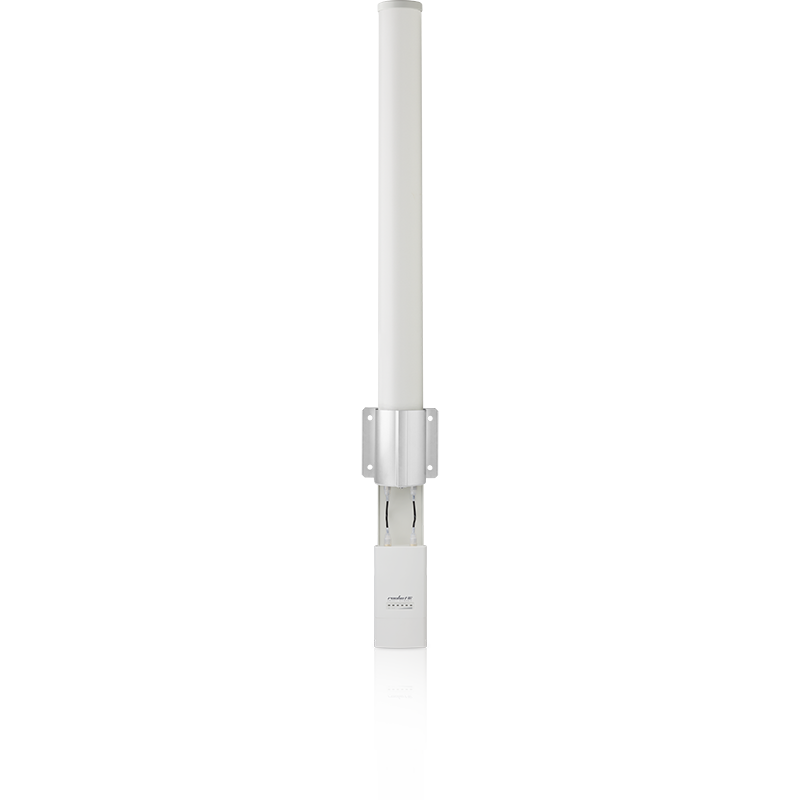

Excellent Ubiquiti AMO-2G10 capacity
The Ubiquiti AMO-2G10 belongs to the airMax high capacity series. It guarantees high capacity and meets the requirements of even the most demanding users. The device works with Rocket M solutions.
The omnidirectional Ubiquiti AMO-2G10 is able to emit signals in all directions with the same power. The device is compatible with 802.11n standard AirMax solutions.
Parameters
The device works in the 2.35 - 2.55 GHz band. The maximum gain of the product is 10 dBi and the standing wave ratio is 1.7:1.
High quality
The Ubiquiti device combines the highest quality with functionality. Its solid and durable design make it ideal for outside interference-free work. The device is EN 302 326 DN2 certified.
Use
The AMO-2G10 antenna is able to create base stations 2x2 MIMO Point-to-MultiPoint links. Together with Rocket M devices (sold separately) the AMO-2G10 antenna creates an omnidirectional 360° base station.
Key features
- works in the 2.4 GHz band
- maximum gain of the antenna 10 dBi
- Dual-Linear polarisation
- 2x2 MIMO
- easy installation
- 1030 x 122 x 84 mm size
Comparison
| AMO-2G10 | AMO-2G13 | AMO-3G12 | AMO-5G10 | AMO-5G13 | |
 |
 |
 |
 |
 |
|
| FREQUENCY | 2.4 GHz | 2.4 GHz | 3 GHz | 5 GHz | 5 GHz |
| GAIN | 10 dBi | 13 dBi | 12 dBi | 10 dBi | 13 dBi |
| DIMENSIONS* | 1030 x 122 x 84 mm | 1390 x 122 x 105 mm | 1012 x 122 x 105 mm | 582 x 90 x 65 mm | 799 x 90 x 65 mm |
| POLARIZATION | Dual-Linear | Dual-Linear | Dual-Linear | Dual-Linear | Dual-Linear |
*Dimensions include pole mount and exclude RocketM (RocketM sold separately)
Manufacturer's content
Read more in the manufacturer's documentation
Specifications
| Basic data | |
| Item name | Ubiquiti Networks AMO-2G10 network antenna Sector antenna 10 dBi |
| Product symbol | AMO-2G10 |
| Hierarchy by CATEGORY |
|
| Hierarchy by MANUFACTURER |
|
| Package sizes (HxWxL) | 130 x 160 x 1070 mm |
| Weight gross | 2.50 kg |
| Logistics data | |
| Harmonized System (HS) code |
|
| Weight & dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Weight |
|
| Certificates | |
| Certification |
|
| Packaging content | |
| Quantity per pack |
|
| Features | |
| Antenna type |
|
| Mounting |
|
| Purpose |
|
| Polarization |
|
| Voltage Standing Wave Ratio (VSWR) |
|
| Product color |
|
| Performance | |
| Frequency band |
|
| Antenna gain level (max) |
|
| Horizontal beam width (2.4 GHz) |
|
| Vertical beam width (2.4 GHz) |
|
