Ubiquiti Networks AF-5G34-S45 network antenna 34 dBi

Write a review
370.15
28 days
AF-5G34-S45
IN STOCK
+

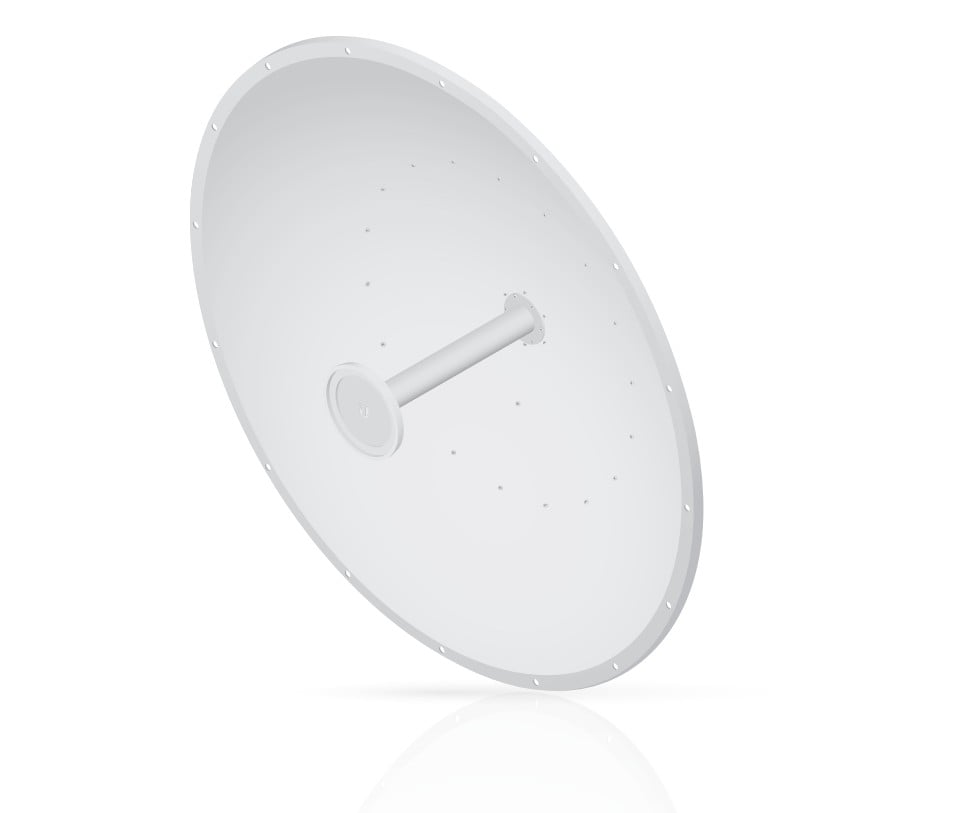

Innovative Ubiquiti AF-5G34-S45 antenna

The AF-5G34-S45 antenna by Ubiquiti is distinguished by its versatility and compact construction. It integrates easily with the manufacturer's dedicated solutions and is problem-free during the installation process.

The innovative design of the AF-5G34-S45 antenna guarantees a high level of isolation and noise reduction. The device works in the 5 GHz band. The maximum gain is 34 dBi.



 width=



Solutions tailored to the user

The AF-5G34-S45 combines perfect parameters, high durability and an affordable price. Durable components used in the device result in high resistance to unfavourable weather conditions (rain, strong wind). Thanks to the use of the latest technological solutions the antenna is distinguished by reliability.



 width=



Installation

The product is designed to work with AirFiber X solutions. The installation is intuitive and does not require specialised tools.





Key features

  • works in the 5 GHz band
  • maximum gain 34 dBi
  • Dual-Linear polarisation
  • compatible with the AF-5X
  • modern design
  • high quality



Comparison

   width=  width=  width=  width=  width=
  AF-2G24-S45 AF-3G26-S45 AF-5G23-S45 AF-5G30-S45 AF-5G34-S45
FREQUENCY 2.4 GHz 3 GHz 5 GHz 5 GHz 5 GHz
GAIN 24 dBi 26 dBi 23 dBi 30 dBi 34 dBi
DIMENSIONS*  ø 650 x 295 mm ø 650 x 300 mm ø 378 x 290 mm ø 650 x 386 mm ø 1050 x 421 mm

 *Dimensions exclude pole mount and airFiber X radio (airFiber X radio sold separately)



Manufacturer's content

 Read more in the manufacturer's documentation

 Read the manual



Specifications



Basic data
Item nameUbiquiti Networks AF-5G34-S45 network antenna 34 dBi
Product symbolAF-5G34-S45
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Antennas
Hierarchy by MANUFACTURER
  • Ubiquiti
Package sizes (HxWxL)250 x 1100 x 1150 mm
Weight gross25 kg
Logistics data
Harmonized System (HS) code
  • 85177100
Weight & dimensions
Height
  • 1050.00 millimeter
Width
  • 1050.00 millimeter
Depth
  • 421.00 millimeter
Diameter
  • 1050.00 millimeter
Weight
  • 13500.00 gram
Packaging content
Quantity per pack
  • 1.00 pcs
Features
Survival wind speed
  • 200.00 km/h
Compatible products
  • AF-5X
Isolation
  • 34.00 dB
Polarization
  • Dual polarization
Voltage Standing Wave Ratio (VSWR)
  • 1.4:1
Front to back ratio
  • 42.00 dB
Product color
  • White
Performance
Frequency band
  • 5.1 - 5.8 GHz
Antenna gain level (max)
  • 34 dBi
Horizontal beam width (5 GHz)
  • 3.00 degrees
Vertical beam width (5 GHz)
  • 3.00 degrees
