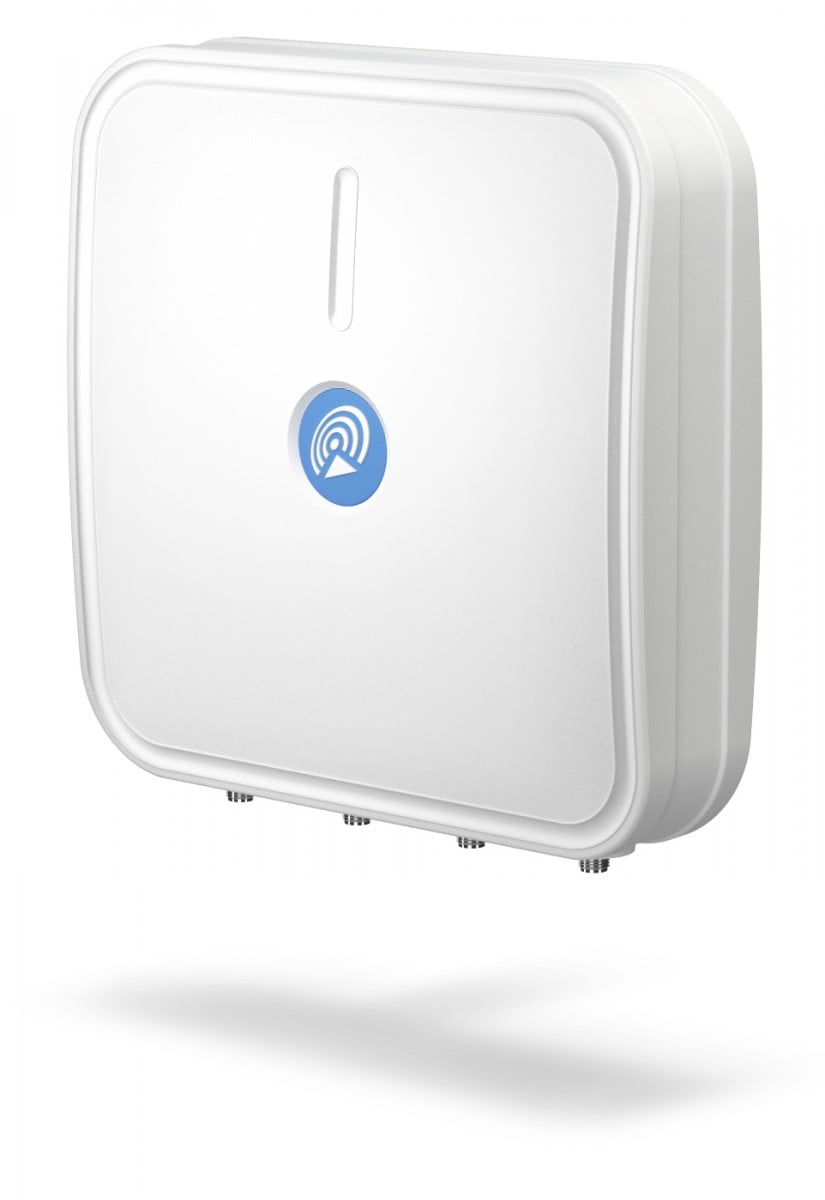

QuPanel 5G/LTE HP MIMO 4x4, N-female, Antenna directional High Power 5G/LTE MIMO 4x4, integrated Nf

Write a review
222.74
28 days
AP5G4-N
IN STOCK
+
QuWireless AP5G4-N. Antenna gain level (max): 7.5 dBi, Frequency band: 0.694-0.96/1.7-2.2/2.2-2.7/3.3-3.8 GHz, Gain: 7.5 dBi. Antenna type: Omni-directional antenna, Antenna connector type: NF, Polarization: Dual polarization. Width: 15.4" (392 mm), Depth: 15.4" (392 mm), Height: 3.9" (99 mm). Quantity per pack: 1 pc(s). Country of origin: Poland

Basic data
Item nameQuPanel 5G/LTE HP MIMO 4x4, N-female, Antenna directional High Power 5G/LTE MIMO 4x4, integrated Nf
Product symbolAP5G4-N
Hierarchy by CATEGORY
  • Computers & Peripherals
  • Networking
  • Networking Hardware
  • Network Antennas
Hierarchy by MANUFACTURER
  • QuWireless
Package sizes (HxWxL)99 x 392 x 392 mm
Weight gross3.80 kg
Logistics data
Country of origin
  • Poland
Weight & dimensions
Height
  • 99.00 millimeter
Width
  • 392.00 millimeter
Depth
  • 392.00 millimeter
Weight
  • 3700.00 gram
Packaging content
Quantity per pack
  • 1.00 pcs
Features
Antenna type
  • Omni-directional antenna
Mounting
  • Wall/Pole
Purpose
  • Indoor & outdoor
Antenna connector type
  • NF
Polarization
  • Dual polarization
Voltage Standing Wave Ratio (VSWR)
  • 2.00
International Protection (IP) code
  • IP67
Housing material
  • Acrylonitrile butadiene styrene (ABS), Aluminum, Polytetrafluoroethylene (PTFE)
Product color
  • White
Performance
Frequency band
  • 0.694-0.96/1.7-2.2/2.2-2.7/3.3-3.8 GHz
Antenna gain level (max)
  • 7.5 dBi
Impedance
  • 50.00 Ohm
Gain
  • 7.5 dBi
Horizontal beam width
  • 70.00 degrees
Vertical beam width
  • 70.00 degrees
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
